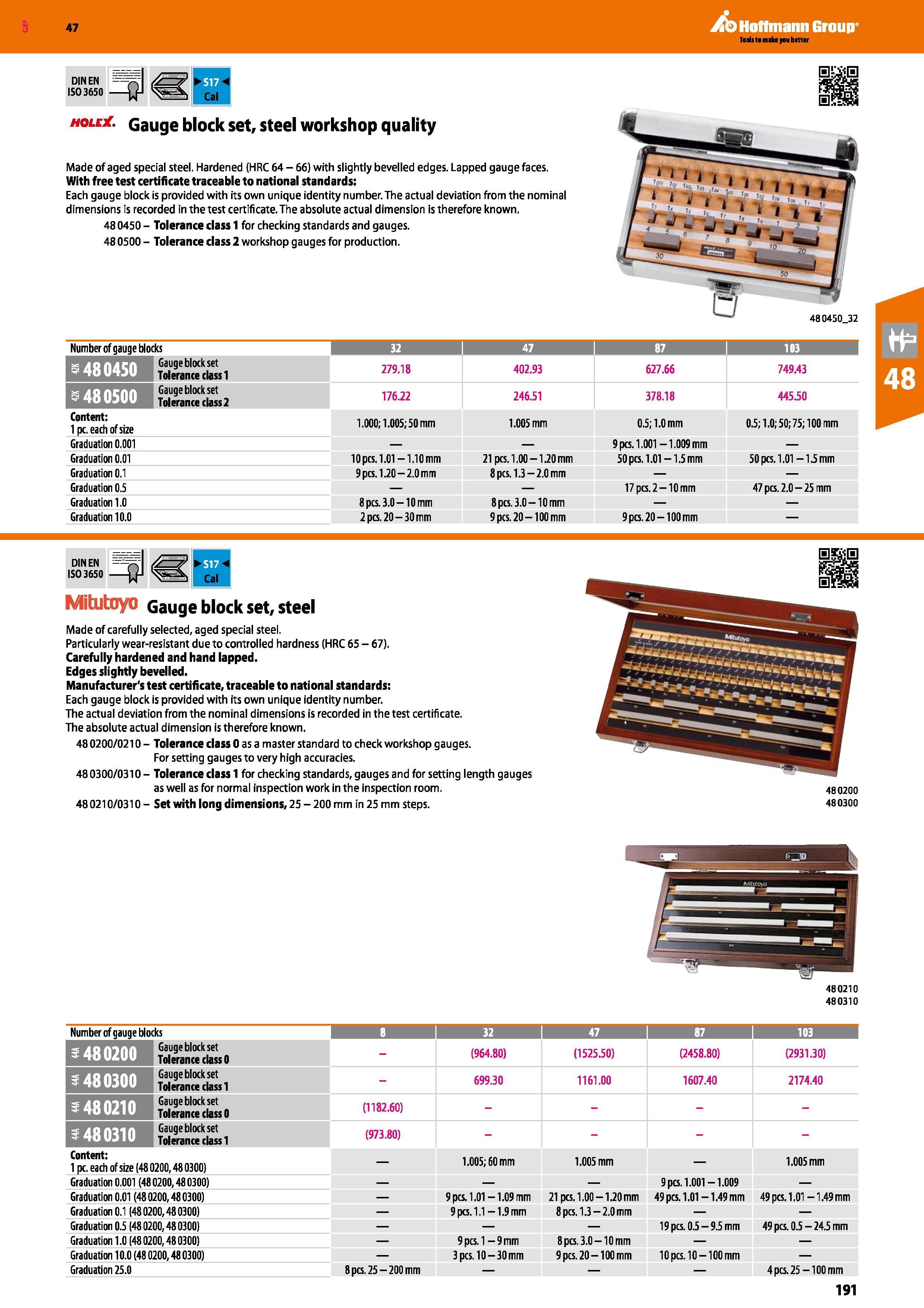

191 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.191

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 191 0191 ENG Lab2u

47 DINEN ISO 3650 holeGauge block set, steel workshop quality Made of aged special steel. Hardened (HRC 64 - 66) with slightly bevelled edges. Lapped gauge faces. With free test certificate traceable to national standards: Each gauge block is provided with its own unique identity number. The actual deviation from the nominal dimensions is recorded in the test certificate. The absolute actual dimension is therefore known. 48 0450 - Tolerance class 1 for checking standards and gauges. 48 0500 - Tolerance class 2 workshop gauges for production. Hoffmann Group Number of gauge blocks IBBS 32 47 87 103 I mnwi Gauge block set Tolerance dassl 279.18 402.93 627.66 749.43 5 480500 Gauge block set Tolerance class 2 176.22 246.51 378.18 445.50 Content: 1 pc. each of size 1.000; 1.005; 50 mm 1.005 mm 0.5; 1.0 mm 0.5; 1.0; 50; 75; 100 mm Graduation 0.001 9 pcs. 1.001 -1.009 mm Graduation 0.01 10pcs.1.01 1.10mm 21 pcs. 1,00-1.20 mm 50 pcs. 1.01-1.5 mm 50 pcs. 1.01 -1.5 mm Graduation 0.1 9 pcs. 1.20-2.0 mm 8 pcs. 1.3-2.0 mm Graduation 0.5 17 pcs. 2-10 mm 47 pcs. 2.0-25 mm Graduation 1.0 8 pcs. 3.0-10 mm 8 pcs. 3.0-10 mm Graduation 10.0 2 pcs. 20-30 mm 9 pcs. 20 -100 mm 9 pcs. 20-100 mm DINEN ISO 3650 Cal Mitutoyo Gauge block set, steel Made of carefully selected, aged special steel. Particularly wear-resistant due to controlled hardness (HRC 65 - 67). Carefully hardened and hand lapped. Edges slightly bevelled. Manufacturer's test certificate, traceable to national standards: Each gauge block is provided with its own unique identity number. The actual deviation from the nominal dimensions is recorded in the test certificate. The absolute actual dimension is therefore known. 48 0200/0210 - Tolerance class 0 as a master standard to check workshop gauges. For setting gauges to very high accuracies. 480300/0310- Tolerance class 1 for checking standards, gauges and for setting length gauges as well as for normal inspection work in the inspection room. 480210/0310- Set with long dimensions, 25 - 200 mm in 25 mm steps. 480210 480310 Number of gauge blocks 8 32 I 47 I 87 103 j i 48 0200 Gauge block set Tolerance dassO - (964.80) (1525.50) (2458.80) (2931.30) s 48 0300 Gauge block set Tolerance dassl - 699.30 1161.00 1607.40 2174.40 5 48 0210 Gauge block set Tolerance dassO (1182.60) - s 48 0310 Gauge block set Tolerance dassl (973.80) - Content: 1 pc. each of size (480200,48 0300) 1.005; 60 mm 1.005 mm 1.005 mm Graduation 0.001 (480200,480300) 9 pcs. 1.001-1.009 Graduation 0.01 (48 0200,48 0300) 9 pcs, 1.01-1.09 mm 21 pa. 1.00-1.20 mm 49 pcs. 1.01 -1.49 mm 49 pcs. 1.01 -1.49 mm Graduation 0.1 (480200,480300) 9 pcs. 1.1 -1.9 mm 8 pcs. 1.3-2.0 mm Graduation 0.5 (48 0200,48 0300) 19 pa 0.5-9.5 mm 49 pa 0.5 - 24.5 mm Graduation 1.0 (480200,480300) 9 pcs. 1 -9mm 8 pcs. 3.0-10 mm Graduation 10.0 (48 0200,480300) 3 pcs. 10-30 mm 9 pcs. 20 -100 mm 10 pcs. 10-100 mm Graduation 25.0 8 pcs. 25-200 mm 4pa 25 -100 mm 191 480200 480300
