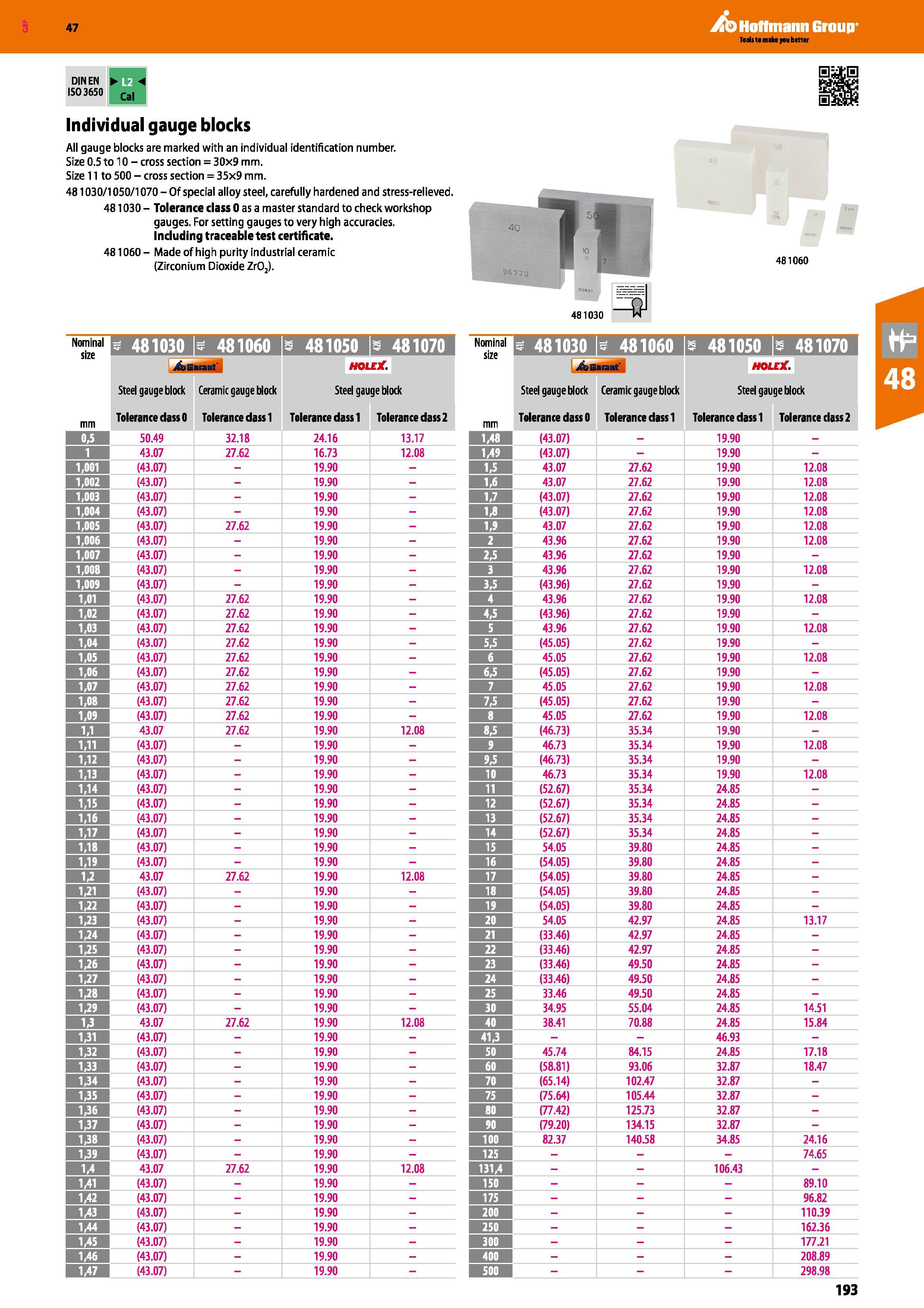

Hoflmann Group 47 DINEN ISO 3650 Cal Individual gauge blocks All gauge blocks are marked with an individual identification number. Size 0.5 to 10 - cross section = 30x9 mm. Size 11 to 500 - cross section = 35x9 mm. 481030/1050/1070 - Of special alloy steel, carefully hardened and stress-relieved. 481030 - Tolerance class 0 as a master standard to check workshop gauges. For setting gauges to very high accuracies. Including traceable test certificate. 481060 - Made of high purity industrial ceramic (Zirconium Dioxide ZrO,). Nominal size 481030 - 481060 Hehiiw holcjC. Steel gauge block Ceramic gauge block Steel gauge block mm Tolerance dassO Tolerance dass 1 Tolerance dass 1 Tolerance dass 2 0,5 50.49 32.18 24.16 13.17 1 43.07 27.62 16.73 12.08 1,001 (43.07) - 19.90 - 1,002 (43.07) - 19.90 - 1,003 (43.07) - 19.90 - 1,004 (43.07) - 19.90 - 1,005 (43.07) 27.62 19.90 - 1,006 (43.07) - 19.90 - 1,007 (43.07) - 19.90 - 1,008 (43.07) - 19.90 - 1,009 (43.07) - 19.90 - 1,01 (43.07) 27.62 19.90 - 1,02 (43.07) 27.62 19.90 - 1,03 (43.07) 27.62 19.90 - 1,04 (43.07) 27.62 19.90 - 1,05 (43.07) 27.62 19.90 - 1,06 (43.07) 27.62 19.90 - 1,07 (43.07) 27.62 19.90 - 1,08 (43.07) 27.62 19.90 - 1,09 (43.07) 27.62 19.90 - 1,1 43.07 27.62 19.90 12.08 1,11 (43.07) - 19.90 - 1,12 (43.07) - 19.90 - 1,13 (43.07) - 19.90 - 1,14 (43.07) - 19.90 - 1,15 (43.07) - 19.90 - 1,16 (43.07) - 19.90 - 1,17 (43.07) - 19.90 - 1,18 (43.07) - 19.90 - 1,19 (43.07) - 19.90 - 1,2 43.07 27.62 19.90 12.08 1,21 (43.07) - 19.90 - 1,22 (43.07) - 19.90 - 1,23 (43.07) - 19.90 - 1,24 (43.07) - 19.90 - 1,25 (43.07) - 19.90 - 1,26 (43.07) - 19.90 - 1,27 (43.07) - I 19.90 - 1,28 (43.07) - 19.90 - 1,29 (43.07) - 19.90 - 1,3 43.07 27.62 19.90 12.08 1,31 (43.07) - 19.90 - 1,32 (43.07) - 19.90 - 1,33 (43.07) - 19.90 - 1,34 (43.07) - 19.90 - 1,35 (43.07) - 19.90 - 1,36 (43.07) - 19.90 - 1,37 (43.07) - 19.90 - 1,38 (43.07) - 19.90 - 1,39 (43.07) - 19.90 - 1/4 43.07 27.62 19.90 12.08 1/41 (43.07) - 19.90 - 1/42 (43.07) - 19.90 - 1/43 (43.07) - 19.90 - 1/44 (43.07) - 19.90 - 1/45 (43.07) - 19.90 - 1/46 (43.07) - 19.90 - 1/47 (43.07) I - 19.90 - 481060 481030 Nominal size mm 481030 481060 jgfilfW mmiM J&Gaianlf Steel gauge block Ceramic gauge block Tolerance dass 0 Tolerance dass 1 HOLOC. Steel gauge block Tolerance dass 1 Tolerance class 2 1,48 (43.07) - 19.90 - 1,49 (43.07) - 19.90 - 1,5 43.07 27.62 19.90 12.08 1,6 43.07 27.62 19.90 12.08 1,7 (43.07) 27.62 19.90 12.08 1,8 (43.07) 27.62 19.90 12.08 1,9 43.07 27.62 19.90 12.08 2 43.96 27.62 19.90 12.08 mm 43.96 27.62 19.90 - 3 43.96 27.62 19.90 12.08 mm (43.96) 27.62 19.90 - 43.96 27.62 19.90 12.08 mm (43.96) 27.62 19.90 - 5 43.96 27.62 19.90 12.08 El (45.05) 27.62 19.90 - fi 45.05 27.62 19.90 12.08 mm (45.05) 27.62 19.90 - 7 45.05 27.62 19.90 12.08 mm (45.05) 27.62 19.90 - 8 45.05 27.62 19.90 12.08 8,5 (46.73) 35.34 19.90 - 9 46.73 35.34 19.90 12.08 9,5 (46.73) 35.34 19.90 - 10 46.73 35.34 19.90 12.08 11 (52.67) 35.34 24.85 - 12 (52.67) 35.34 24.85 - 13 (52.67) 35.34 24.85 - 14 (52.67) 35.34 24.85 _ 15 54.05 39.80 24.85 - 16 (54.05) 39.80 24.85 - 17 (54.05) 39.80 24.85 - 18 (54.05) 39.80 24.85 - 19 (54.05) 39.80 24.85 - 20 54.05 42.97 24.85 13.17 21 (33.46) 42.97 24.85 - 22 (33.46) 42.97 24.85 - 23 (33.46) 49.50 24.85 - 24 (33.46) 49.50 24.85 - 25 33.46 49.50 24.85 - 30 34.95 55.04 24.85 14.51 40 38.41 70.88 24.85 15.84 41,3 46.93 - 50 45.74 84.15 24.85 17.18 60 (58.81) 93.06 32.87 18.47 70 (65.14) 102.47 32.87 - 75 (75.64) 105.44 32.87 - 80 (77.42) 125.73 32.87 - 90 (79.20) 134.15 32.87 - 100 82.37 140.58 34.85 24.16 125 74.65 131/4 106.43 - 150 89.10 175 96.82 200 110.39 250 162.36 300 177.21 400 208.89 500 298.98 193
