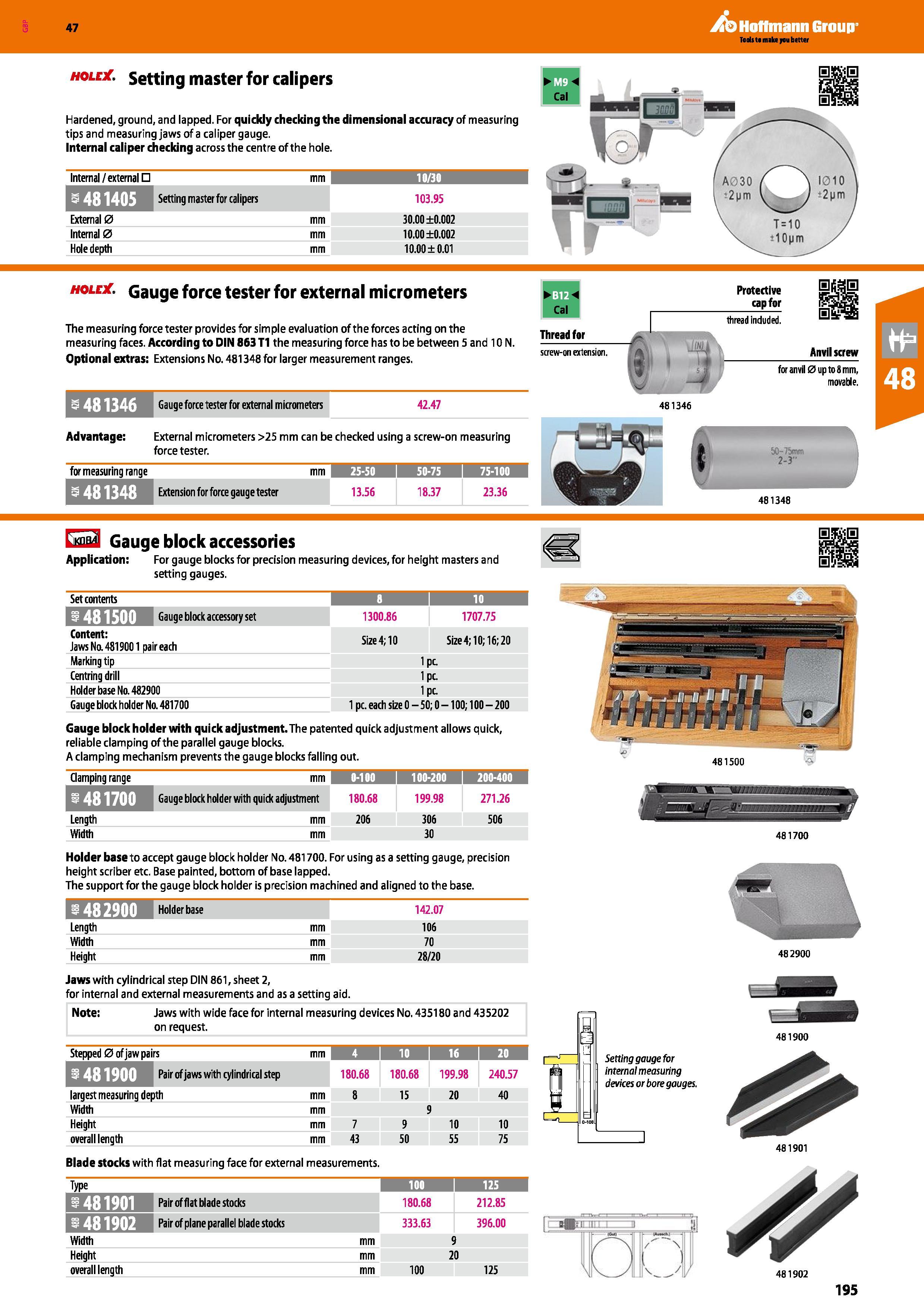

Hoffmann Group 47 hole . Setting master for calipers Hardened, ground, and lapped. For quickly checking the dimensional accuracy of measuring tips and measuring jaws of a caliper gauge. Internal caliper checking across the centre of the hole. Internal/ external mm 10/31 Setting master for calipers 103.95 _ External 0 mm 30.00 ±0.002 Internal 0 mm 10.00 ±0.002 Hole depth mm 10.00 ±0.01 holex. Gauge force tester for external micrometers The measuring force tester provides for simple evaluation of the forces acting on the measuring faces. According to DIN 863 T1 the measuring force has to be between 5 and 10 N. Optional extras: Extensions No. 481348 for larger measurement ranges. J 4 Cal Protective thread induded. Thread for screw-on extension. Gauge block accessories Application: For gauge blocks for precision measuring devices, for height masters and setting gauges. Marking tip Centring drill Holder base No. 482900 Gauge block holder No. 481700 1 pc 1 pc 1 pc 1 pc. each size 0 -50; 0 -100; 100 - 200 Gauge block holder with quick adjustment. The patented quick adjustment allows quick, reliable clamping of the parallel gauge blocks. A clamping mechanism prevents the gauge blocks falling out. Blade stocks with flat measuring face for external measurements. Ml i u Anvil screw for anvil 0 up to 8 mm, movable. 481346 Gauge force tester for external micrometers 42.47 Advantage: External micrometers >25 mm can be checked using a screw-on measuring force tester. for measuring range mm 25-50 50-75 75-100 I 481348 Extension for force gauge tester 13.56 18.37 23.36 481346 481348 Set contents > I 10 1 i481500 Gauge block accessory set 1300.86 1707.75 Content: Jaws No. 4819001 pair each Size 4; 10 Size4; 10; 16; 20 Clamping range mm 0-100 I 100-200 I 200-400 Gauge block holder with quick adjustment 180.68 199.98 271.26 Length mm 206 306 506 Width mm 30 Holder base to accept gauge block holder No. 481700. For using as a setting gauge, precision height scriber etc. Base painted, bottom of base lapped. The support for the gauge block holder is precision machined and aligned to the base. i482900 Holder base 142.07 Length mm 106 Width mm 70 Height mm 28/20 Jaws with cylindrical step DIN 861, sheet 2, for internal and external measurements and as a setting aid. Note: Jaws with wide face for internal measuring devices No. 435180 and 435202 on request. Stepped 0 of jaw pairs mm 4 I io 1 16 1 20 Pair of jaws with cylindrical step 180.68 180.68 199.98 240.57 largest measuring depth mm 8 15 20 40 Width mm 9 Height mm 7 9 10 10 overall length mm 43 50 55 75 Setting gauge for internal measuring devices or bore gauges. 481901 Type 1 100 1 12S I i 48190 Pair of flat blade stocks 180.68 212.85 Pair of plane parallel blade stocks 333.63 396.00 Width mm 9 Height mm 20 overall length mm 100 125 / \ v / 481902 195
