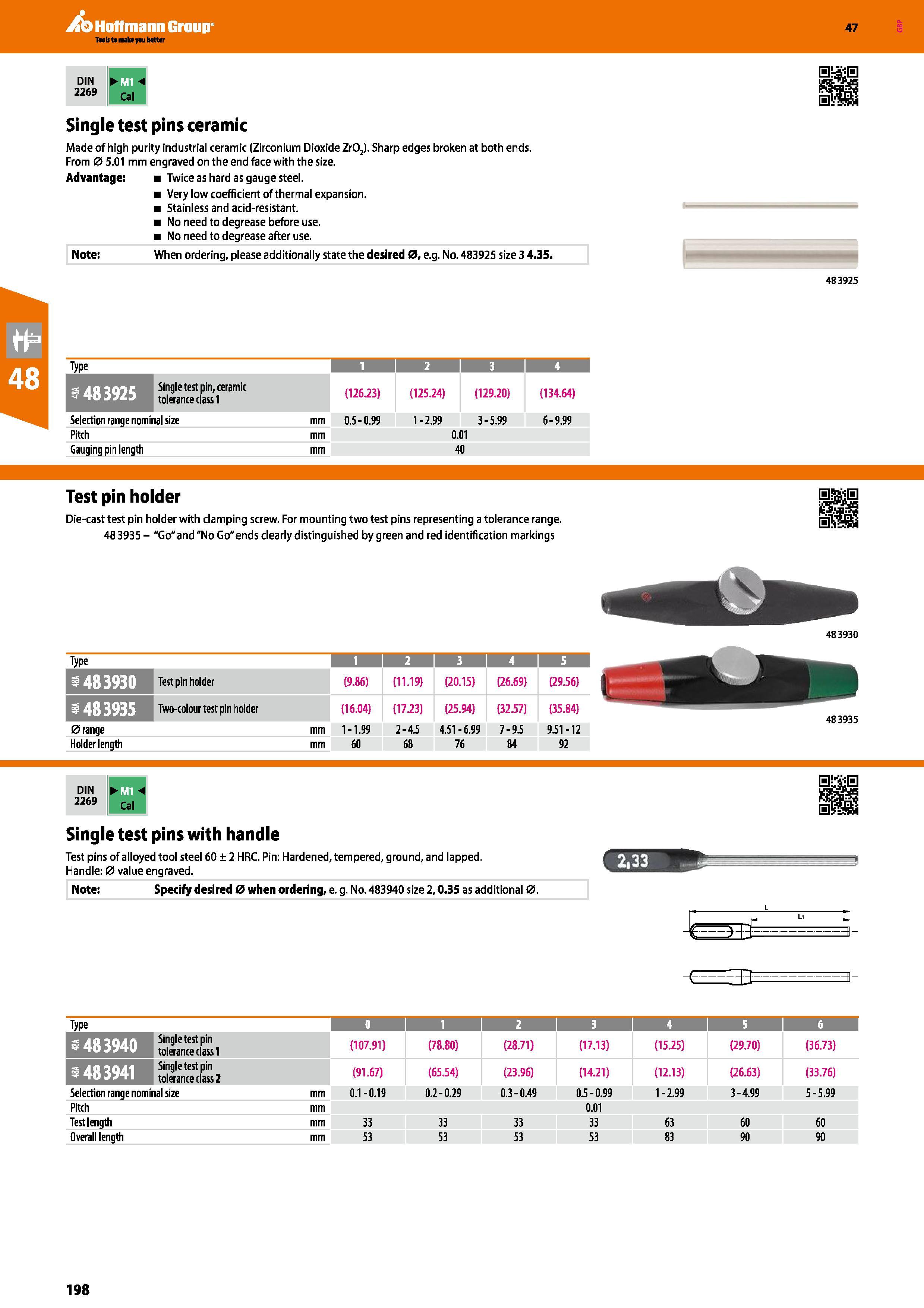

Hoffmann Group 47 DIN H 2269 Cal Single test pins ceramic Made of high purity industrial ceramic (Zirconium Dioxide Zr02). Sharp edges broken at both ends. From 0 5.01 mm engraved on the end face with the size. Advantage: Twice as hard as gauge steel. Very low coefficient of thermal expansion. Stainless and acid-resistant. No need to degrease before use. No need to degrease after use. Note; When ordering, please additionally state the desired 0, e.g. No. 483925 size 3 4.35. 483925 Type 1 I 2 I 3 I 4 Single test pin, ceramic tolerance dass 1 (126.23) (125.24) (129.20) (134.64) Selection range nominal size mm 0.5-0.99 1-2.99 3-5.99 6-9.99 Pitch mm 0.01 Gauging pin length mm 40 Test pin holder Die-cast test pin holder with clamping screw. For mounting two test pins representing a tolerance range. 483935 - "Go"and“NoGo"ends clearly distinguished by green and red identification markings Type I 2 I 3 I 4 I 5 Test pin holder (9.86) (11.19) (20.15) (26.69) (29.56) Two-colour test pin holder (16.04) (17.23) (25.94) (32.57) (35.84) 0 range mm 1-1.99 2-4.5 4.51-6.99 7-9.5 9.51-12 Holder length mm 60 68 76 84 92 483930 483935 Sp DIN 2269 Single test pins with handle Test pins of alloyed tool steel 60 ± 2 HRC. Pin: Hardened, tempered, ground, and lapped. Handle: 0 value engraved. Note: Specify desired 0 when ordering, e. g. No. 483940 size 2,0.35 as additional 0. , I r " - -< Type 1 0 I 1 I 2 I 3 I 4 I 5 I 1 Single test pin tolerance class 1 (107.91) (78.80) (28.71) (17.13) (15.25) (29.70) (36.73) Single test pin tolerance class 2 (91.67) (65.54) (23.96) (14.21) (12.13) (26.63) (33.76) Selection range nominal size mm 0.1-0.19 0.2-0.29 0.3-0.49 0.5-0.99 1-2.99 3-4.99 5-5.99 Pitch mm 0.01 Test length mm 33 33 33 33 63 60 60 Overall length mm 53 53 53 53 83 90 90 198
