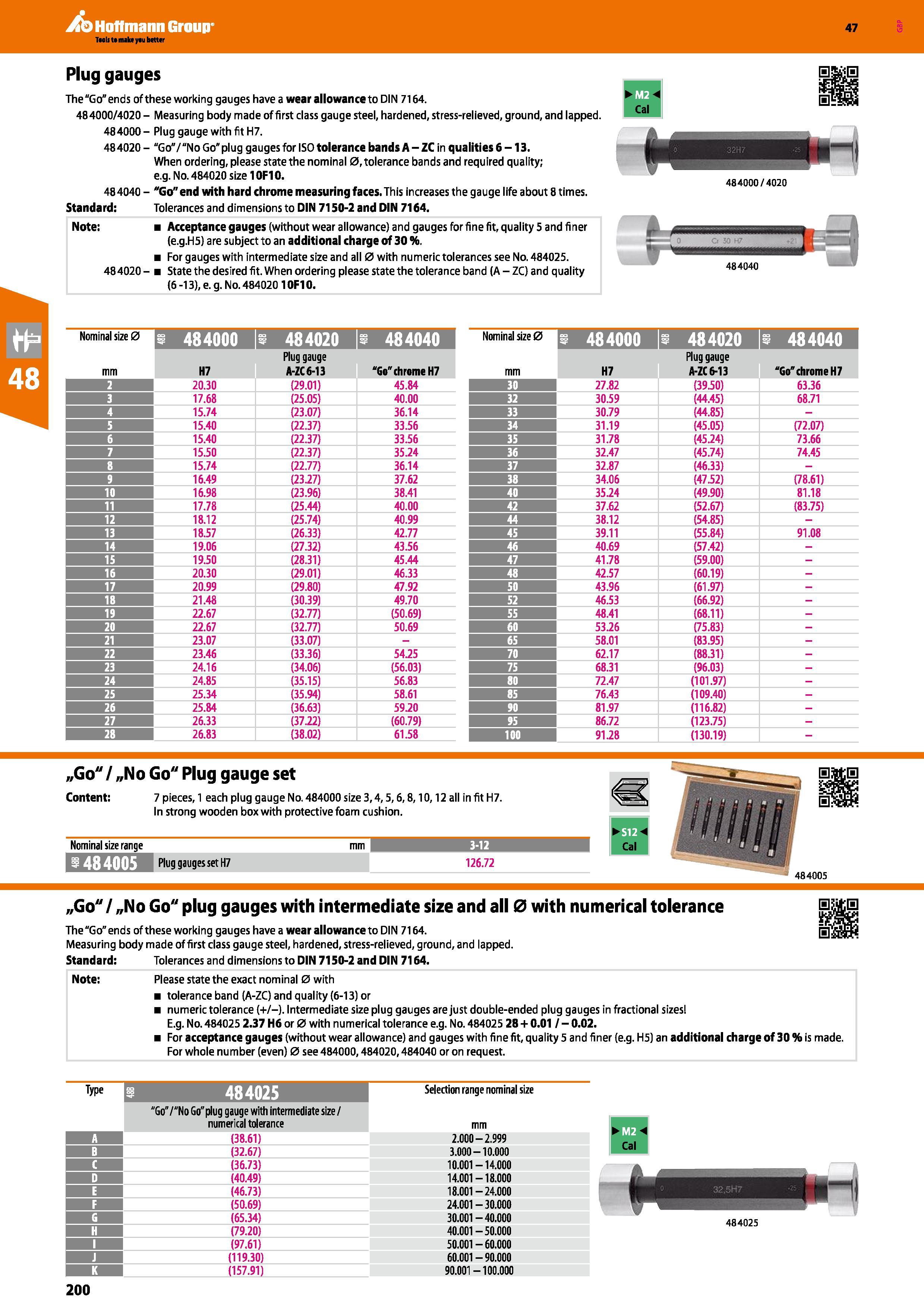

Hoffmann Group 47 Plug gauges The "Go" ends of these working gauges have a wear allowance to DIN 7164. 484000/4020 - Measuring body made of first class gauge steel, hardened, stress-relieved, ground, and lapped. 484000- Plug gauge with fit H7. 484020 - “Go"/“No Go" plug gauges for ISO tolerance bands A - ZC in qualities 6-13. When ordering, please state the nominal 0, tolerance bands and required quality; e.g. No. 484020 size 10F10. 484040 - "Go"end with hard chrome measuring faces. This increases the gauge life about 8 times. Standard: Tolerances and dimensions to DIN 7150-2 and DIN 7164. Note: Acceptance gauges (without wear allowance) and gauges for fine fit, quality 5 and finer (e.g.H5) are subject to an additional charge of 30 %. For gauges with intermediate size and all 0 with numeric tolerances see No. 484025. 484020 - State the desired fit. When ordering please state the tolerance band (A - ZC) and quality (6 -13), e. g. No. 484020 10F10. 484000/4020 484040 Nominal size 0 M:gliIiliW :tliWiW:tliEl mm H7 Plug gauge A-ZC 6-13 "Go'chromc H7 2 20.30 (29.01) 45.84 3 17.68 (25.05) 40.00 4 15.74 (23.07) 36.14 5 15.40 (22.37) 33.56 6 15.40 (22.37) 33.56 7 15.50 (22.37) 35.24 8 15.74 (22.77) 36.14 9 16.49 (23.27) 37.62 10 16.98 (23.96) 38.41 11 17.78 (25.44) 40.00 12 18.12 (25.74) 40.99 13 18.57 (26.33) 42.77 14 19.06 (27.32) 43.56 15 19.50 (28.31) 45.44 16 20.30 (29.01) 46.33 17 20.99 (29.80) 47.92 18 21.48 (30.39) 49.70 19 22.67 (32.77) (50.69) 20 22.67 (32.77) 50.69 21 23.07 (33.07) - 22 23.46 (33.36) 54.25 23 24.16 (34.06) (56.03) 24 24.85 (35.15) 56.83 25 25.34 (35.94) 58.61 26 25.84 (36.63) 59.20 27 26.33 (37.22) (60.79) 28 26.83 (38.02) 61.58 Nominal size 0 P :EliIi iW gliWi :gliEl mm H7 Plug gauge A-ZC 6-13 "Go" chrome H7 30 27.82 (39.50) 63.36 32 30.59 (44.45) 68.71 33 30.79 (44.85) - 34 31.19 (45.05) (72.07) 35 31.78 (45.24) 73.66 36 32.47 (45.74) 74.45 37 32.87 (46.33) - 38 34.06 (47.52) (78.61) 40 35.24 (49.90) 81.18 42 37.62 (52.67) (83.75) 44 38.12 (54.85) - 45 39.11 (55.84) 91.08 46 40.69 (57.42) - 47 41.78 (59.00) - 48 42.57 (60.19) - 50 43.96 (61.97) - 52 46.53 (66.92) - 55 48.41 (68.11) - 60 53.26 (75.83) - 65 58.01 (83.95) - 70 62.17 (88.31) - 75 68.31 (96.03) - 80 72.47 (101.97) - 85 76.43 (109.40) - 90 81.97 (116.82) - 95 86.72 (123.75) - 100 91.28 (130.19) - „Go"/ „No Go" Plug gauge set Content: 7 pieces, 1 each plug gauge No. 484000 size 3,4,5,6,8,10,12 all in fit H7. In strong wooden box with protective foam cushion. Nominal size range mm 3-12 i 48 4005 Plug gauges set H7 126.72 484005 „Go"/ „No Go" plug gauges with intermediate size and all 0 with numerical tolerance The “Go" ends of these working gauges have a wear allowance to DIN 7164. Measuring body made of first class gauge steel, hardened, stress-relieved, ground, and lapped. Standard: Tolerances and dimensions to DIN 7150-2 and DIN 7164. Note: Please state the exact nominal 0 with tolerance band (A-ZC) and quality (6-13) or numeric tolerance (+/-). Intermediate size plug gauges are just double-ended plug gauges in fractional sizes E.g. No. 484025 2.37 H6 or 0 with numerical tolerance e.g. No. 484025 28 + 0.01 / - 0.02. For acceptance gauges (without wear allowance) and gauges with fine fit, quality 5 and finer (e.g. M5) an additional charge of 30 % is made For whole number (even) 0 see 484000,484020,484040 or on request. Type i 48 4025 1 Selection range nominal size "Go"/"No Go"plug gauge with intermediate size / numerical tolerance mm A (38.61) 2.000 - 2.999 B (32.67) 3.000-10.000 C (36.73) 10.001-14.000 D (40.49) 14.001-18.000 E (46.73) 18.001-24.000 F (50.69) 24.001-30.000 HHBK (65.34) 30.001-40.000 (79.20) 40.001-50.000 zmm (97.61) 50.001-60.000 j (119.30) 60.001-90.000 K (157.91) 90.001 -100.000 Cal 484025 200
