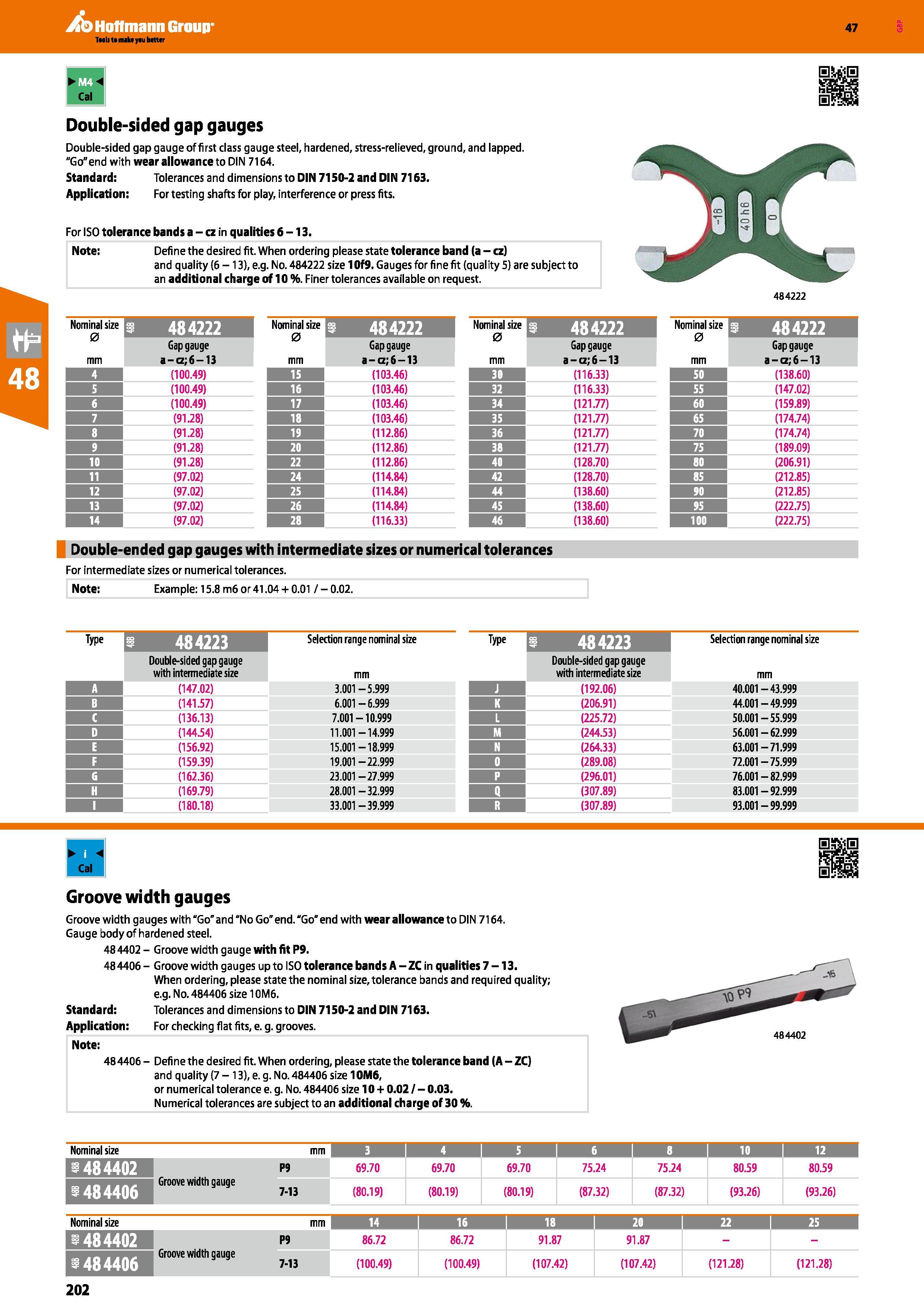

Hoffmann Group 47 Double-sided gap gauges Double-sided gap gauge of first class gauge steel, hardened, stress-relieved, ground, and lapped. "Go"end with wear allowance to DIN 7164. Standard: Tolerances and dimensions to DIN 7150-2 and DIN 7163. Application: For testing shafts for play, interference or press fits. For ISO tolerance bands a - cz in qualities 6-13. Note: Define the desired fit. When ordering please state tolerance band (a - cz) and quality (6 -13), e.g. No. 484222 size 10f9. Gauges for fine fit (quality 5 are subject to an additional charge of 10 %. Finer tolerances available on request. 484222 Nominal size 0 mm i 484222 1 Nominal size 0 mm i 484222 I Nominal size 0 mm i 484222 I Gap gauge a-a;6-13 Gap gauge a-cz;6-13 Gap gauge a cz;6 13 4 (100.49) 15 (103.46) 30 (116.33) 5 (100.49) 16 (103.46) 32 (116.33) S3 (100.49) 17 (103.46) 34 (121.77) (91.28) 18 (103.46) 35 (121.77) 8 (91.28) 19 (112.86) 36 (121.77) 9 (91.28) 20 (112.86) 38 (121.77) 10 (91.28) 22 (112.86) 40 (128.70) 11 (97.02) 24 (114.84) 42 (128.70) 12 (97.02) 25 (114.84) 44 (138.60) 13 (97.02) 26 (114.84) 45 (138.60) 14 (97.02) 28 (116.33) 46 (138.60) Double-ended gap gauges with intermediate sizes or numerical tolerances Nominal size 0 mm i 48 4222 Gap gauge a-a;6-13 50 (138.60) 55 (147.02) 60 (159.89) 65 (174.74) 70 (174.74) 75 (189.09) 80 (206.91) 85 (212.85) 90 (212.85) 95 (222.75) 100 (222.75) For intermediate sizes or numerical tolerances. Note: Example: 15.8 m6 or 41.04 + 0.01 / - 0.02. Type 484223 1 Selection range nominal size Type i 484223 8 Selection range nominal size Double-sided gap gauge with intermediate size mm Double-sided gap gauge with intermediate size mm (147.02) 3.001 -5.999 J (192.06) 40.001-43.999 (141.57) 6.001 -6.999 K (206.91) 44.001-49.999 (136.13) 7.001-10.999 L (225.72) 50.001-55.999 (144.54) 11.001 -14.999 M (244.53) 56.001-62.999 (156.92) 15.001 -18.999 N (264.33) 63.001-71.999 (159.39) 19.001 -22.999 0 (289.08) 72.001-75.999 (162.36) 23.001 -27.999 P (296.01) 76.001-82.999 (169.79) 28.001 -32.999 Q (307.89) 83.001-92.999 (180.18) 33.001 -39.999 R (307.89) 93.001-99.999 Cal Groove width gauges Groove width gauges with "Go"and "No Go" end. "Go" end with wear allowance to DIN 7164. Gauge body of hardened steel. 48 4402 - Groove width gauge with fit P9. 484406 - Groove width gauges up to ISO tolerance bands A -ZC in qualities 7-13. When ordering, please state the nominal size, tolerance bands and required quality; e.g. No. 484406 size 10M6. Standard: Tolerances and dimensions to DIN 7150-2 and DIN 7163. Application: For checking flat fits, e. g. grooves. Note: 484406 - Define the desired fit. When ordering, please state the tolerance band (A -and quality (7 - 13), e. g. No. 484406 size 10M6, or numerical tolerance e. g. No. 484406 size 10 + 0.02 / - 0.03. Numerical tolerances are subject to an additional charge of 30 %. ZC) 484402 Nominal size mm 3 i 4 1 5 i 6 i 8 i 10 12 I 48 4402 P9 69.70 69.70 69.70 75.24 75.24 80.59 80.59 i 48 4406 7-13 (80.19) (80.19) (80.19) (87.32) (87.32) (93.26) (93.26) Nominal size mm 14 16 18 20 22 25 mu’" . ... P9 86.72 86.72 91.87 91.87 i 48 4406 7-13 (100.49) (100.49) (107.42) (107.42) (121.28) (121.28)
