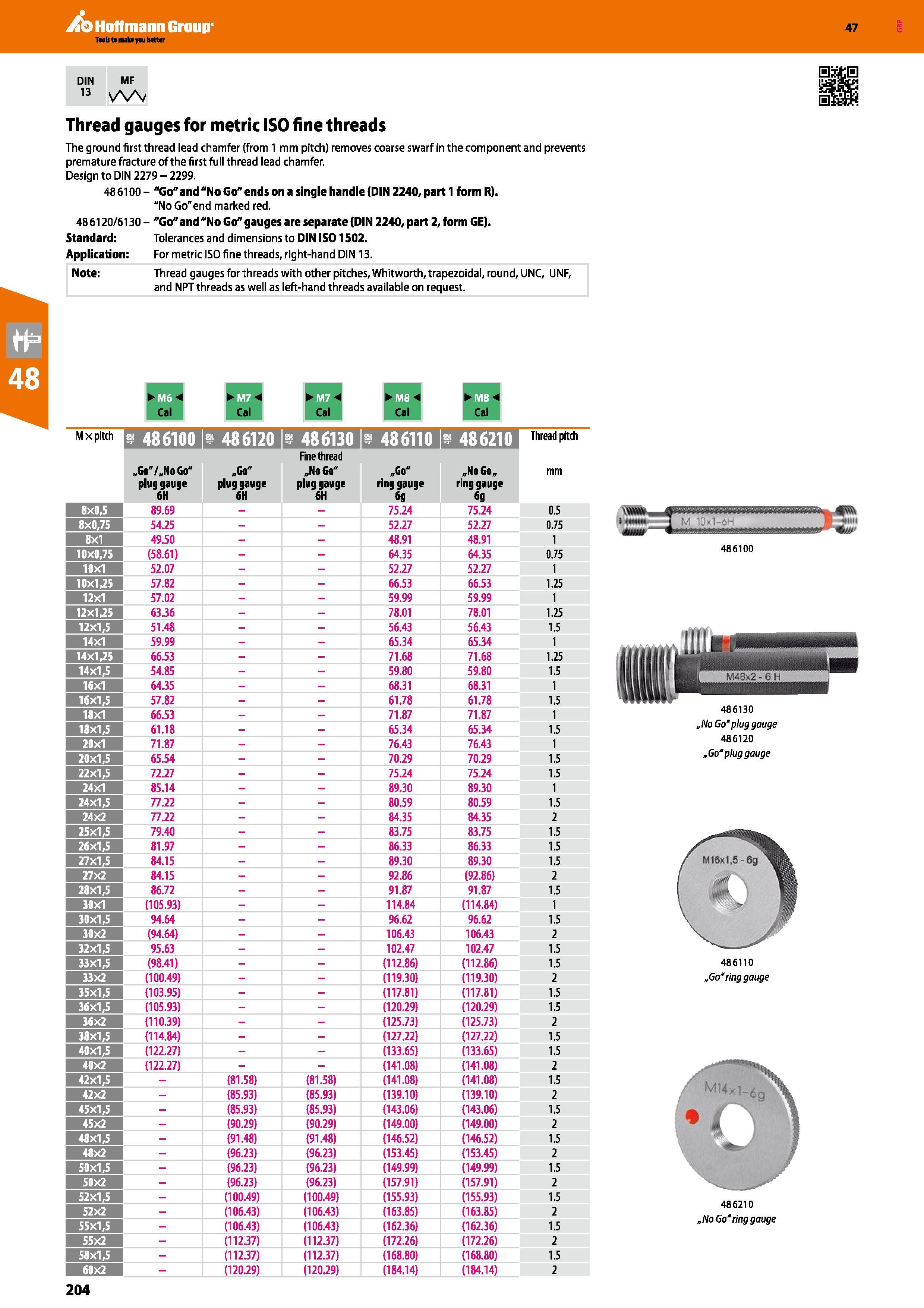

Hoffmann Group 47 DIN MF 13 VW Thread gauges for metric ISO fine threads The ground first thread lead chamfer (from 1 mm pitch) removes coarse swarf in the component and prevents premature fracture of the first full thread lead chamfer. Design to DIN 2279 - 2299. 486100- “Go"and "No Go"ends on a single handle (DIN 2240, part 1 formR). "NoGo"end marked red. 48 6120/6130 - "Go"and "No Go"gauges are separate (DIN 2240, part 2, form GE). Standard: Tolerances and dimensions to DIN IS01502. Application: For metric ISO fine threads, right-hand DIN 13. Note: Thread gauges for threads with other pitches, Whitworth, trapezoidal, round, UNC, UNF, and NPT threads as well as left-hand threads available on request. M x pitch i 486100 i 486120 i 486130 i 486110 f 486210 Thread pitch mm „Go"/„NoCo" plug gauge 6H Go" plug gauge 6H Fine thread wNoGo" plug gauge 6H „Go" ring gauge 6g „NoGo„ ring gauge fig 8x0,5 89.69 “ 1 “ 1 75.24 75.24 0.5 8x0,75 54.25 52.27 52.27 0.75 8x1 49.50 48.91 48.91 1 10x0,75 (58.61) 64.35 64.35 0.75 10x1 52.07 52.27 52.27 1 10x1,25 57.82 66.53 66.53 1.25 12x1 57.02 59.99 59.99 1 12x1,25 63.36 78.01 78.01 1.25 12X1,5 51.48 56.43 56.43 1.5 14X1 59.99 65.34 65.34 1 14x1,25 66.53 71.68 71.68 1.25 14x1,5 54.85 59.80 59.80 1.5 16x1 64.35 68.31 68.31 1 16x1,5 57.82 61.78 61.78 1.5 18x1 66.53 71.87 71.87 1 18x1,5 61.18 65.34 65.34 1.5 20x1 71.87 76.43 76.43 1 20x1,5 65.54 70.29 70.29 1.5 22x1,5 72.27 75.24 75.24 1.5 24X1 85.14 89.30 89.30 1 24X1,5 77.22 80.59 80.59 1.5 24X2 77.22 84.35 84.35 2 25x1,5 79.40 83.75 83.75 1.5 26x1,5 81.97 86.33 86.33 1.5 27x1,5 84.15 89.30 89.30 1.5 27X2 84.15 92.86 (92.86) 2 28x1,5 86.72 91.87 91.87 1.5 30x1 (105.93) 114.84 (114.84) 1 30x1,5 94.64 96.62 96.62 1.5 30x2 (94.64) 106.43 106.43 2 32x1,5 95.63 102.47 102.47 1.5 33x1,5 (98.41) (112.86) (112.86) 1.5 33x2 (100.49) (119.30) (119.30) 2 35x1,5 (103.95) (117.81) (117.81) 1.5 36x1,5 (105.93) (120.29) (120.29) 1.5 36x2 (110.39) (125.73) (125.73) 2 38x1,5 (114.84) (127.22) (127.22) 1.5 40x1,5 (122.27) (133.65) (133.65) 1.5 40x2 (122.27) (141.08) (141.08) 2 42x1,5 - (81.58) (81.58) (141.08) (141.08) 1.5 42x2 - (85.93) (85.93) (139.10) (139.10) 2 45x1,5 - (85.93) (85.93) (143.06) (143.06) 1.5 45x2 - (90.29) (90.29) (149.00) (149.00) 2 48x1,5 - (91.48) (91.48) (146.52) (146.52) 1.5 48x2 - (96.23) (96.23) (153.45) (153.45) 2 50x1,5 - (96.23) (96.23) (149.99) (149.99) 1.5 50x2 - (96.23) (96.23) (157.91) (157.91) 2 52x1,5 - (100.49) (100.49) (155.93) (155.93) 1.5 52x2 - (106.43) (106.43) (163.85) (163.85) 2 55x1,5 - (106.43) (106.43) (162.36) (162.36) 1.5 55x2 - (112.37) (112.37) (172.26) (172.26) 2 58x1,5 - (112.37) (112.37) (168.80) (168.80) 1.5 60x2 - (120.29) (120.29) (184.14) (184.14) 2 i M 10x1-6H 1 )> 486100 486110 „Go“ring gauge 486210 „No Go'ring gauge 204 486130 „No Go"plug gauge 486120 .Go'plug gauge
