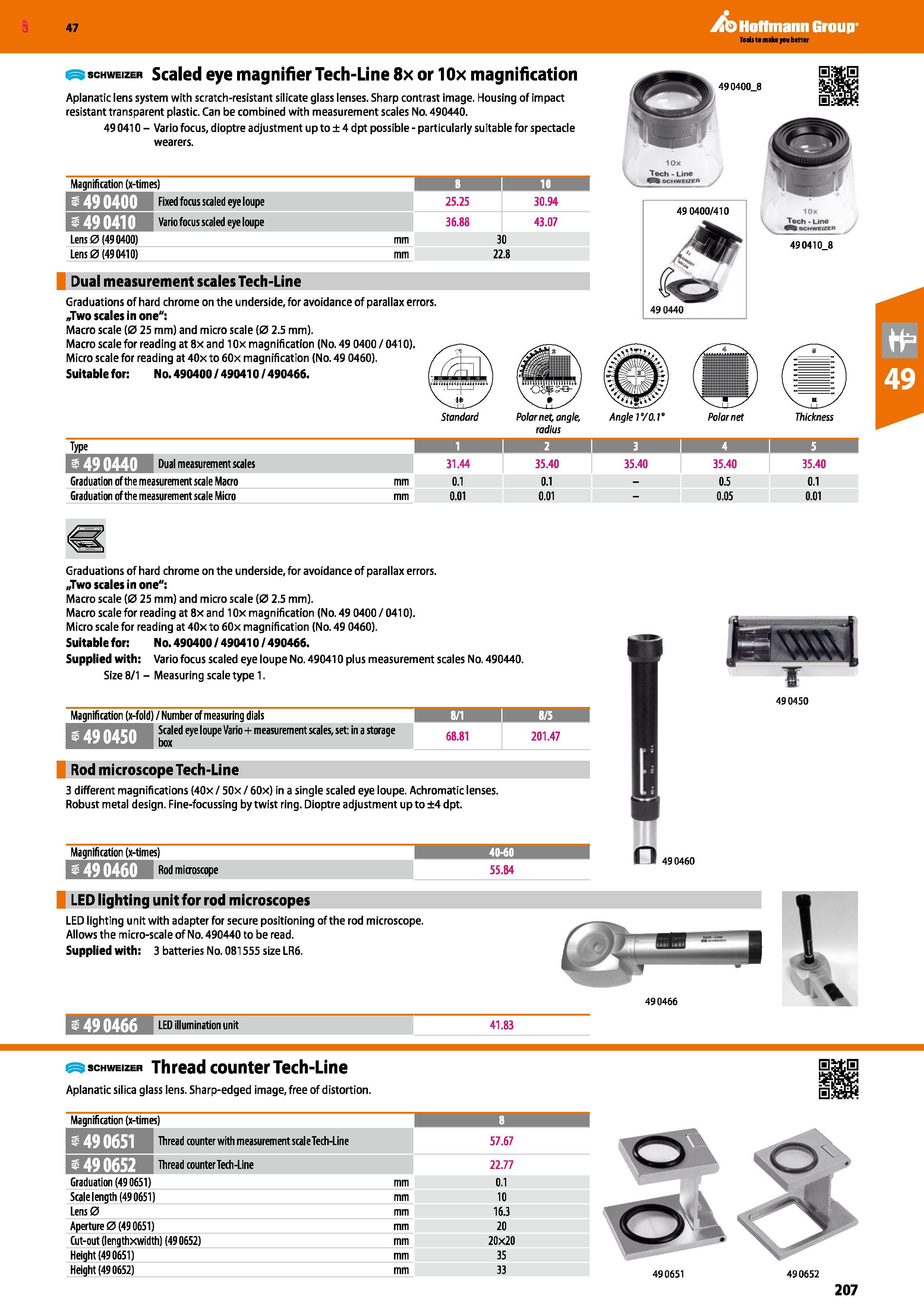

207 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.207

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 207 0207 ENG Lab2u

Hoffmann Group 47 £5 SCHWEIZER Scaled eye magnifier Tech-Line 8x or lOx magnification Aplanatic lens system with scratch-resistant silicate glass lenses. Sharp contrast image. Housing of impact resistant transparent plastic. Can be combined with measurement scales No. 490440. 490410 - Vario focus, dioptre adjustment up to ± 4 dpt possible - particularly suitable for spectacle wearers. Magnification (x-times) 8S8KBS11 10 1 J jJTJ" ml Fixed focus scaled eve lourw 25.25 30.94 X >XIS l Vario focus scaled eye loupe 36.88 43.07 Lens 0(490400) Lens 0(490410) 30 22.8 Dual measurement scales Tech-Line Graduations of hard chrome on the underside, for avoidance of parallax errors. „Two scales in one": Macro scale (0 25 mm) and micro scale (0 2.5 mm). Macro scale for reading at 8x and 10x magnification (No. 49 0400 / 0410). Micro scale for reading at 40x to 60x magnification (No. 49 0460). Suitable for: No. 490400/ 490410 / 490466. 490400_8 10x Tftch - Lin4 iGHwnni) 49 0400/410 49 0440 10x Toch - Lino 8CHWEI7CM 490410_8 Standard Polar net, angle, radius Angle IV0.1’ Polar net Thickness Type 1 I 2 3 4 1 5 Dual measurement scales 31.44 35.40 35.40 35.40 35.40 Graduation of the measurement scale Macro mm 0.1 0.1 - 0.5 0.1 Graduation of the measurement scale Micro mm 0.01 0.01 - 0.05 0.01 Graduations of hard chrome on the underside, for avoidance of parallax errors. „Two scales in one": Macro scale (0 25 mm) and micro scale (0 2.5 mm). Macro scale for reading at 8x and 10x magnification (No. 49 0400 / 0410). Micro scale for reading at 40x to 60x magnification (No. 49 0460). Suitable for: No. 490400/ 490410 / 490466. Supplied with: Vario focus scaled eye loupe No. 490410 plus measurement scales No. 490440. Size 8/1 - Measuring scale type 1. Magnification (x-fold) / Number of measuring dials 8/1 8/5 Scaled eye loupe Vario+measurement scales, set: in a storage box 68.81 201.47 Rod microscope Tech-Line 3 different magnifications (40x / 50x / 60x) in a single scaled eye loupe. Achromatic lenses. Robust metal design. Fine-focussing by twist ring. Dioptre adjustment up to ±4 dpt. 490450 Magnification (x-times) Rod microscope 55.84 LED lighting unit for rod microscoi LED lighting unit with adapter for secure positioning of the rod microscope. Allows the micro-scale of No. 490440 to be read. Supplied with: 3 batteries No. 081555 size LR6. LED illumination unit 41.83 n 490460 490466 SCHWEIZER Thread counter Tech-Line Aplanatic silica glass lens. Sharp-edged image, free of distortion. Thread counter with measurement scaleTech-Line 57.67 EHir,1.tl Thread counter Tech-Line 22.77 Graduation (49 0651) mm 0.1 Scale length (490651) mm 10 Lens0 mm 16.3 Aperture 0(49 0651) mm 20 Cut-out (lengthxwidth) (490652) mm 20x20 Height (49 0651) mm 35 Height (49 0652) mm 33 490651 490652 207
