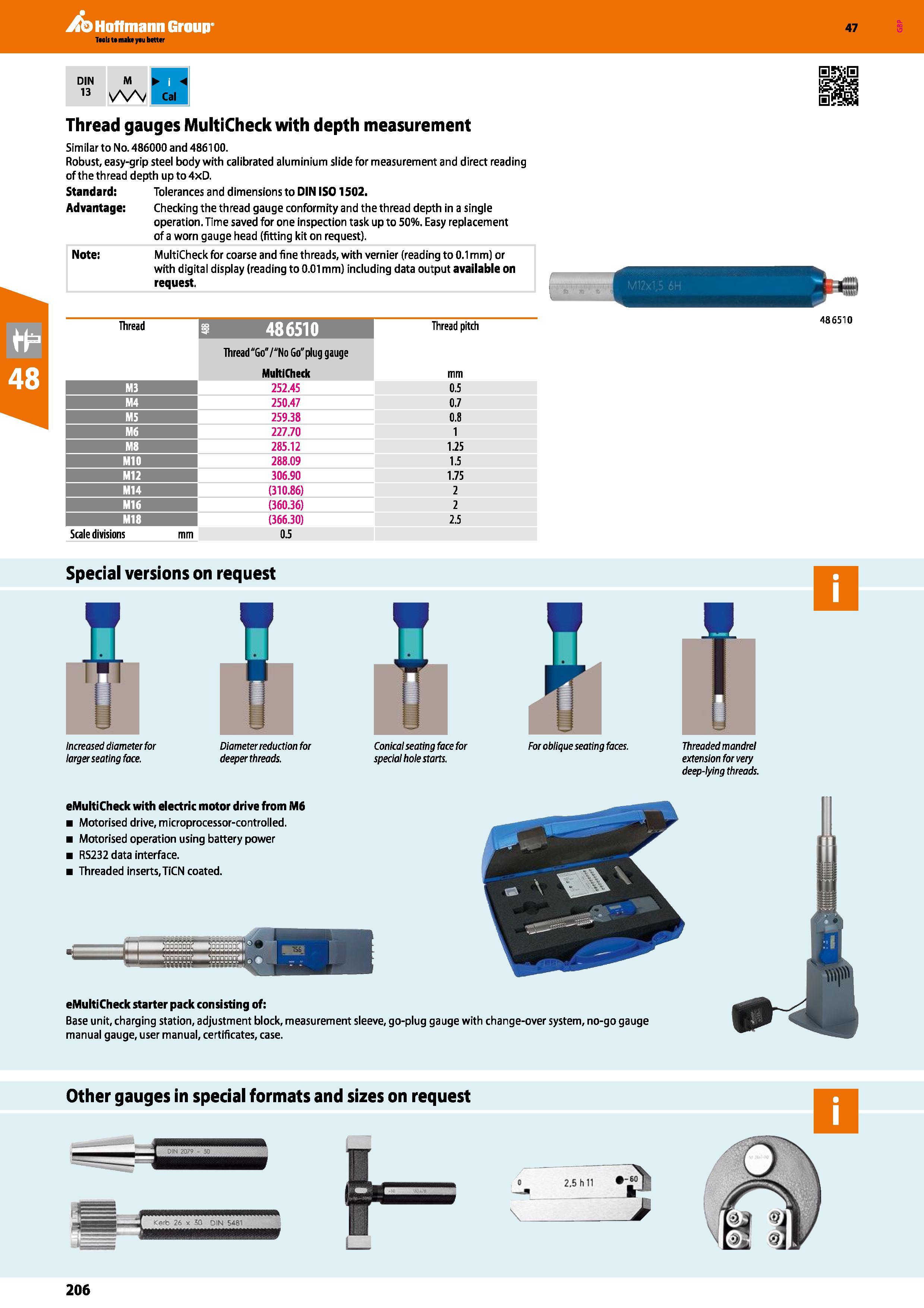

Hoffmann Group 47 DIN 13 M v Thread gauges MultiCheck with depth measurement Similar to No. 486000 and 486100. Robust, easy-grip steel body with calibrated aluminium slide for measurement and direct reading of the thread depth upto4xD. Standard: Tolerances and dimensions to DIN IS01502. Advantage: Checking the thread gauge conformity and the thread depth in a single operation. Time saved for one inspection task up to 50%. Easy replacement of a worn gauge head (fitting kit on request). Note: MultiCheck for coarse and fine threads, with vernier (reading to 0.1 mm or with digital display (reading to 0.01 mm) including data output available on request. Thread i 486510 S Thread pitch Thread "GoTNo Go"plug gauge MultiCheck mm M3 252.45 0.5 M4 250.47 0.7 M5 259.38 0.8 M6 227.70 1 M8 285.12 1.25 M10 288.09 1.5 M12 306.90 1.75 M14 (310.86) 2 M16 (360.36) 2 M18 (366.30) 2.5 Scale divisions mm 0.5 486510 Conical seating face for special hole starts. Special versions on request Increased diameter for Diameter reduction for larger seating face. deeper threads. For oblique seating faces. eMultiCheck with electric motor drive from M6 Motorised drive, microprocessor-controlled. Motorised operation using battery power RS232 data interface. Threaded inserts, TiCN coated. eMultiCheck starter pack consisting of: Base unit, charging station, adjustment block, measurement sleeve, go-plug gauge with change-over system, no-go gauge manual gauge, user manual, certificates, case. Other gauges in special formats and sizes on request 2.5 h 11 3 206
