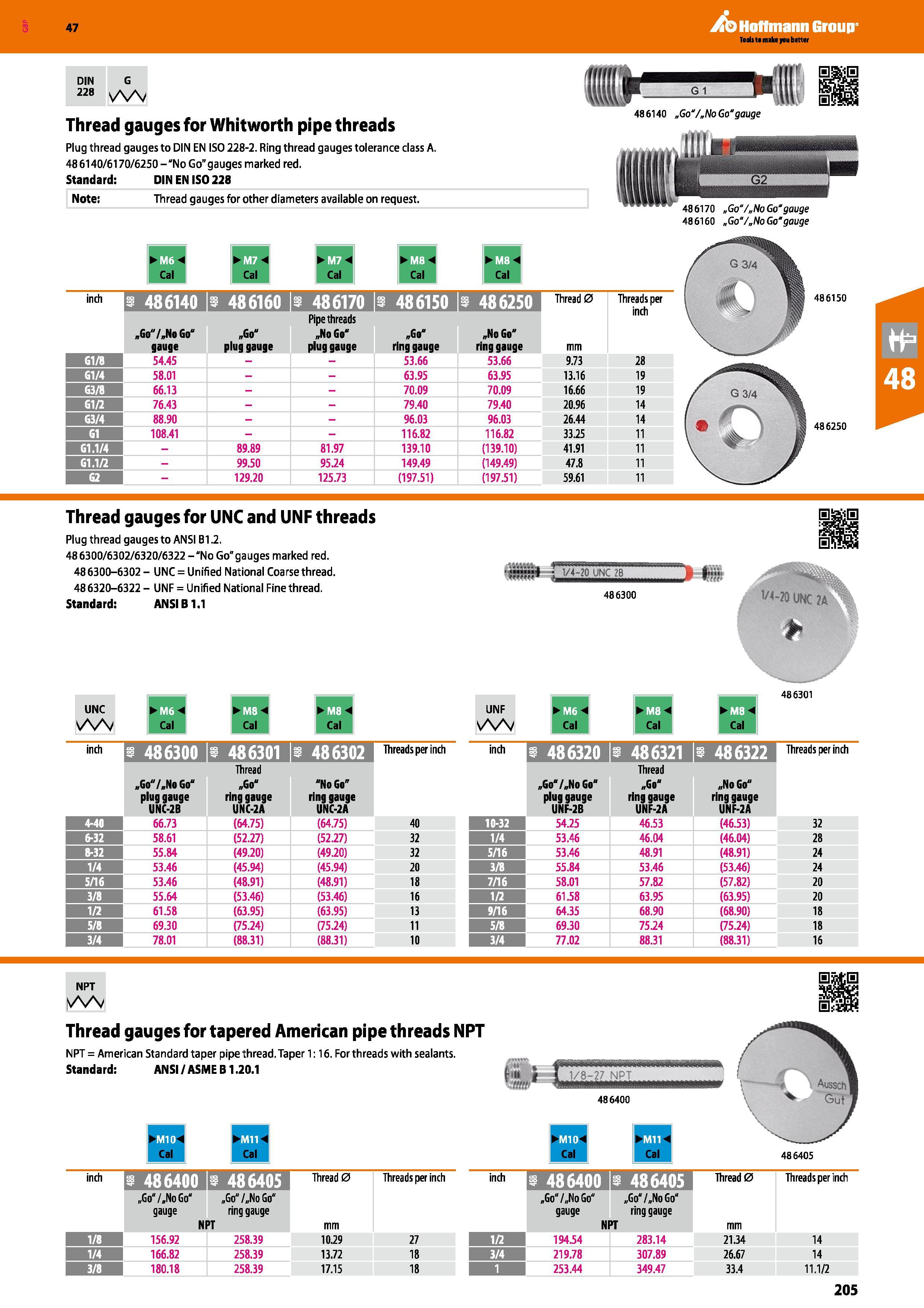

205 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.205

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 205 0205 ENG Lab2u

47 DIN G 228 vW Thread gauges for Whitworth pipe threads Plug thread gauges to DIN EN ISO 228-2. Ring thread gauges tolerance class A. 486140/6170/6250-"NoGo”gauges marked red. Standard: DIN EN ISO 228 Note: Thread gauges for other diameters available on request. Hoffmann Group 486170 „Go“/„No Go’gauge 486160 „Go“/„No Go'gauge inch i 486140 i 486160 i 486170 i 486150 i 486250 I Thread 0 Threads per inch „Go"/„NoGo" gauge „Go" plug gauge Pipe threads „No Go" plug gauge Go“ ring gauge „No Go" ring gauge mm G1/8 54.45 53.66 53.66 9.73 28 G1/4 58.01 63.95 63.95 13.16 19 G3/8 66.13 70.09 70.09 16.66 19 G1/2 76.43 79.40 79.40 20.96 14 G3/4 88.90 96.03 96.03 26.44 14 G1 108.41 116.82 116.82 33.25 11 G1.1/4 - 89.89 81.97 139.10 (139.10) 41.91 11 G1.1/2 - 99.50 95.24 149.49 (149.49) 47.8 11 G2 - 129.20 125.73 (197.51) (197.51) 59.61 11 Thread gauges for UNC and UNF threads Plug thread gauges to ANSI B1.2. 486300/6302/6320/6322 -"No Go"gauges marked red. 48 6300-6302 - UNC = Unified National Coarse thread. 486320-6322 - UNF = Unified National Fine thread. Standard: ANSI B 1.1 1/4-20 UNC 2B 486300 W-20 UNC unc ffi -4 Cal Cal inch i 486300 486301 i 486302 Threads per inch „Go"/„NoGo" plug gauge UNC-2B Thread „Go" ring gauge UNC-2A "No Go" ring gauge UNC-2A 4-40 66.73 (64.75) (64.75) 40 6-32 58.61 (52.27) (52.27) 32 8-32 55.84 (49.20) (49.20) 32 1/4 53.46 (45.94) (45.94) 20 5/16 53.46 (48.91) (48.91) 18 3/8 55.64 (53.46) (53.46) 16 1/2 61.58 (63.95) (63.95) 13 5/8 69.30 (75.24) (75.24) 11 3/4 78.01 (88.31) (88.31) 10 UNF 9 Q Cal Cal Cal 486301 inch 486321 i 486322 Threads per inch „Go"/„NoGo" plug gauge UNF-2B Thread Go" ring gauge UNF-2A „NoGo" ring gauge UNF-2A 10-32 54.25 46.53 (46.53) 32 1/4 53.46 46.04 (46.04) 28 5/16 53.46 48.91 (48.91) 24 3/8 55.84 53.46 (53.46) 24 7/16 58.01 57.82 (57.82) 20 1/2 61.58 63.95 (63.95) 20 9/16 64.35 68.90 (68.90) 18 5/8 69.30 75.24 (75.24) 18 3/4 77.02 88.31 (88.31) 16 NPT na/v Thread gauges for tapered American pipe threads NPT NPT = American Standard taper pipe thread. Taper 1:16. For threads with sealants. Standard: ANSI / ASME B1.20.1 Mjji Cal inch i 486400 i 486405 Thread 0 Threads per inch inch i 486400 i 486405 Thread 0 Threads per inch „Go"/,NoGo“ „Go" /„No Go" gauge ring gauge NPT mm „Go“/„NoGo" „Go“/„NoGo“ gauge ring gauge NPT mm 1/8 156.92 258.39 10.29 27 1/2 194.54 283.14 21.34 14 1/4 166.82 258.39 13.72 18 3/4 219.78 307.89 26.67 14 3/8 180.18 258.39 17.15 18 1 253.44 349.47 33.4 11.1/2 205
