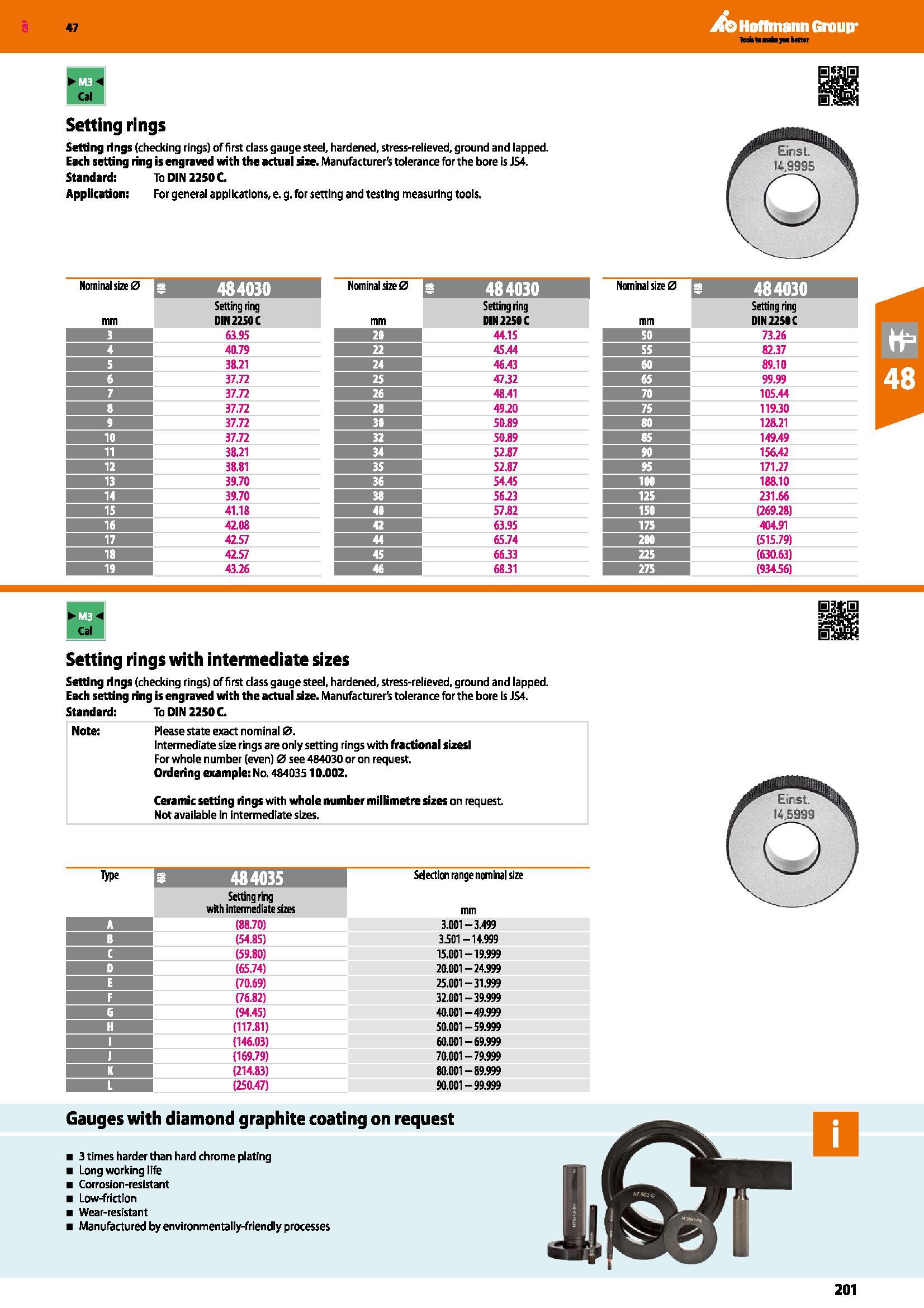

Setting rings Setting rings (checking rings) of first class gauge steel, hardened, stress-relieved, ground and lapped. Each setting ring is engraved with the actual size. Manufacturer's tolerance for the bore is JS4. Standard: To DIN 2250C. Application: For general appl icatlons, e. g. for setting and testing measuring tools. Nominal size 0 3 484030 mm Setting ring DIN 2250 C 3 63.95 4 40.79 5 38.21 6 37.72 7 37.72 37.72 9 37.72 10 37.72 11 38.21 12 38.81 13 39.70 14 39.70 15 41.18 16 42.08 17 42.57 18 42.57 19 43.26 Nominal size 0 3 484030 mm Setting ring DIN 2250 C 20 44.15 22 45.44 24 46.43 25 4732 26 48.41 28 49.20 30 50.89 32 50.89 34 52.87 35 52.87 36 54.45 38 56.23 40 57.82 42 63.95 44 65.74 45 6633 46 6831 Nominal size 0 2 484030 mm Setting ring DIN 2251C 50 73.26 55 82.37 60 89.10 65 99.99 70 105.44 75 119.30 80 128.21 85 149.49 90 156.42 95 171.27 100 188.10 125 231.66 150 (269.28) 175 404.91 200 (515.79) 225 (630.63) 275 (934.56) Setting rings with intermediate sizes Setting rings (checking rings) of first class gauge steel, hardened, stress-relieved, ground and lapped. Each setting ring is engraved with the actual size. Manufacturer tolerance for the bore Is JS4. Standard: To DIN 2250C. Note: Please state exact nom Inal 0. Intermediate size rings are only setting rings with fractional sizes For whole number (even) 0 see 484030 or on request. Ordering example: No. 48403510.002. Ceramic setting rings with whole number millimetre sizes on request. Not available In intermediate sizes. Type 3 484035 I Selection range nominal size Setting ring with intermediate sizes mm A (88.70) 3.001-3.499 B (54.85) 3501 14.999 C (59.80) 15.001-19.999 D (65.74) 20.001-24.999 1 (70.69) 25.001-31.999 F (76.82) 32.001-39.999 G (94.45) 40.001-49.999 H (117.81) 50.001-59.999 1 (146.03) 60.001-69.999 J (169.79) 70.001-79.999 K (214,83) 80.001-89.999 L (250.47) 90.001-99.999 Gauges with diamond graphite coating on request 3 times harder than hard chrome plating Long working life Corrosion-resistant Low-friction Wear-resistant Manufactured by environmentally friendly processes 201
