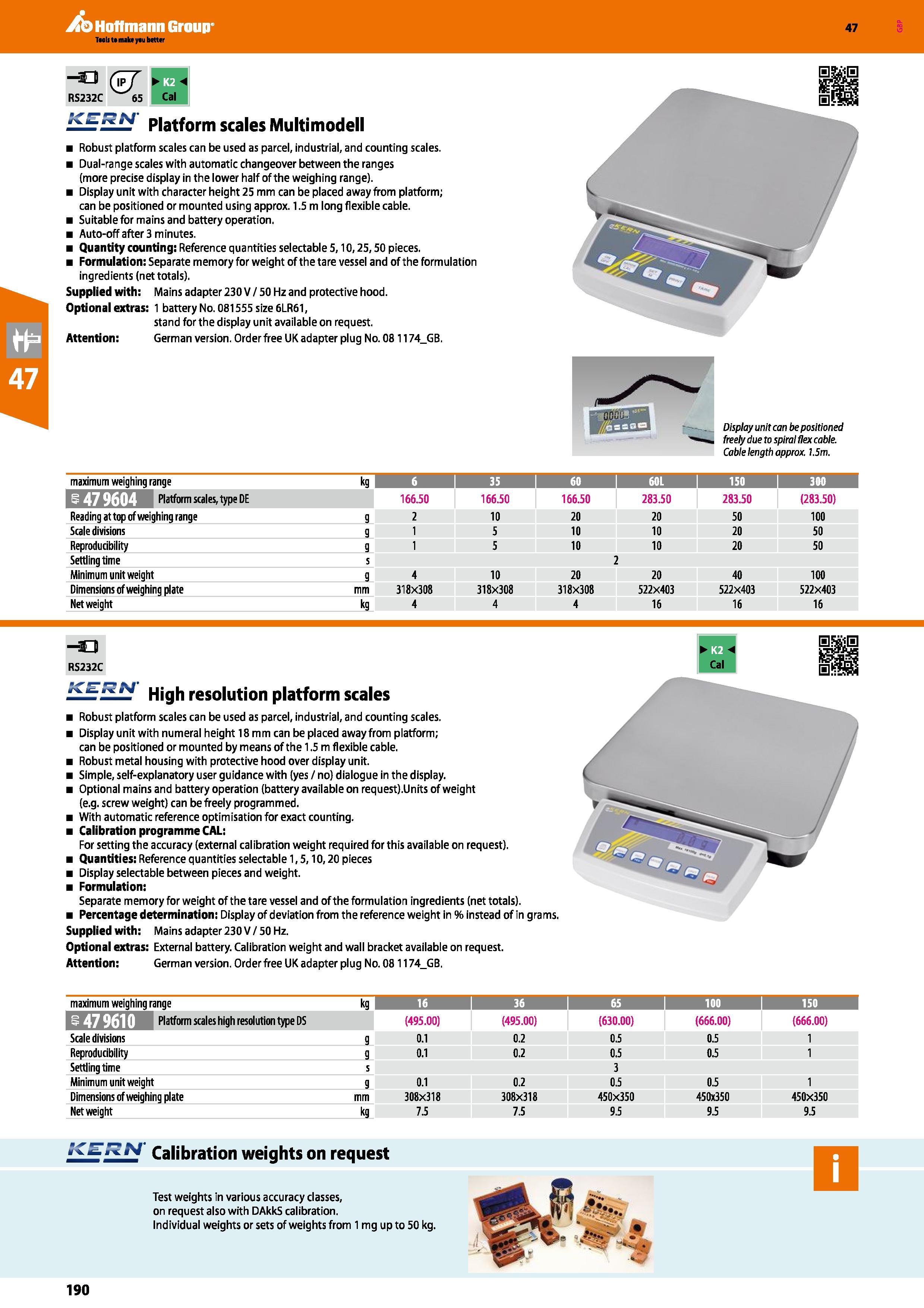

-SJ RS232C 65 Platform scales Multimodell Robust platform scales can be used as parcel, industrial, and counting scales. Dual-range scales with automatic changeover between the ranges (more precise display in the lower half of the weighing range). Display unit with character height 25 mm can be placed away from platform; can be positioned or mounted using approx. 1.5 m long flexible cable. Suitable for mains and battery operation. Auto-off after 3 minutes. Quantity counting: Reference quantities selectable 5,10,25,50 pieces. Formulation: Separate memory for weight of the tare vessel and of the formulation ingredients (net totals). Supplied with: Mains adapter 230 V / 50 Hz and protective hood. Optional extras: 1 battery No. 081555 size 6LR61, stand for the display unit available on request. Attention: German version. Order free UK adapter plug No. 081174_GB. Display unit can be positioned freely due to spiral flex cable. Cable length approx. 1.5m. maximum weighing range kg 6 1 35 60 ; 60L I 150 300 S WWETnjlH Platform scales, type DE 166.50 166.50 166.50 283.50 283.50 (283.50) Reading at top of weighing range g 2 10 20 20 50 100 Scale divisions g 1 5 10 10 20 50 Reproducibility g 1 5 10 10 20 50 Settling time s 2 Minimum unit weight g 4 10 20 20 40 100 Dimensions of weighing plate mm 318x308 318x308 318x308 522x403 522x403 522x403 Net weight kg 4 4 4 16 16 16 S3 RS232C High resolution platform scales Robust platform scales can be used as parcel, industrial, and counting scales. Display unit with numeral height 18 mm can be placed away from platform; can be positioned or mounted by means of the 1.5 m flexible cable. Robust metal housing with protective hood over display unit. Simple, self-explanatory user guidance with (yes / no) dialogue in the display. Optional mains and battery operation (battery available on request).Units of weight (e.g. screw weight) can be freely programmed. With automatic reference optimisation for exact counting. Calibration programme CAL: For setting the accuracy (external calibration weight required for this available on request). Quantities: Reference quantities selectable 1,5,10,20 pieces Display selectable between pieces and weight. Formulation: Separate memory for weight of the tare vessel and of the formulation ingredients (net totals). Percentage determination: Display of deviation from the reference weight in % instead of in grams. Supplied with: Mains adapter 230 V / 50 Hz. Optional extras: External battery. Calibration weight and wall bracket available on request. Attention: German version. Order free UK adapter plug No. 081174_GB. maximum weighing range kg 16 36 I 65 100 i 150 Platform scales high resolution type DS (495.00) (495.00) (630.00) (666.00) (666.00) Scale divisions g 0.1 0.2 0.5 0.5 1 Reproducibility g 0.1 0.2 0.5 0.5 1 Settling time s 3 Minimum unit weight g 0.1 0.2 0.5 0.5 1 Dimensions of weighing plate mm 308x318 308x318 450x350 450x350 450x350 Net weight kg 7.5 7.5 9.5 9.5 9.5 Calibration weights on request Test weights in various accuracy classes, on request also with DAkkS calibration. Individual weights or sets of weights from 1 mg up to 50 kg. Hoffmann Group 190
