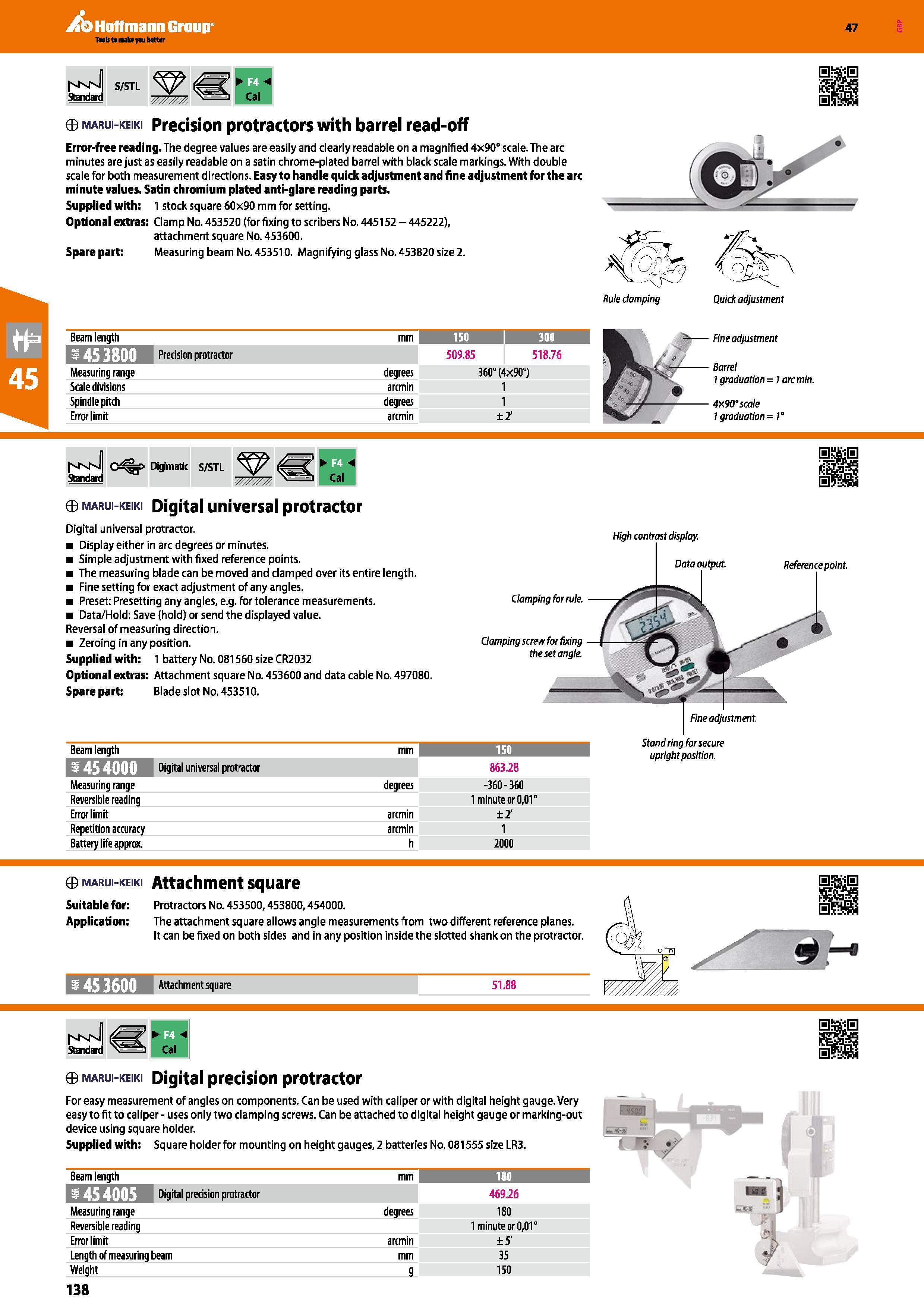

Hoffmann Group 47 I'vNlJI A A / I S/STL \J/ (£=< H Standad V/MM Cal marui-keiki Precision protractors with barrel read-off Error-free reading. The degree values are easily and clearly readable on a magnified 4x90° scale. The arc minutes are just as easily readable on a satin chrome-plated barrel with black scale markings. With double scale for both measurement directions. Easy to handle quick adjustment and fine adjustment for the arc minute values. Satin chromium plated anti-glare reading parts. Supplied with: 1 stock square 60x90 mm for setting. Optional extras: Clamp No. 453520 (for fixing to scribers No. 445152 - 445222), attachment square No. 453600. Spare part: Measuring beam No. 453510. Magnifying glass No. 453820 size 2. Rule clamping Quick adjustment Beam length JpJJiJIJIJ Precision protractor 509.85 518.76 Measuring range degrees 360° (4x90°) Scale divisions arcmin 1 Spindle pitch degrees 1 Error limit arcmin ±2' IS -Fine adjustment 1 -Barrel 1 graduation = 1 arc min. 4x90° scale 1 graduation = 1° C p Dig'matk S/STL Cal marui-keiki Digital universal protractor Digital universal protractor. Display either in arc degrees or minutes. Simple adjustment with fixed reference points. The measuring blade can be moved and clamped over its entire length. Fine setting for exact adjustment of any angles. Preset: Presetting any angles, e.g. for tolerance measurements. Data/Mold: Save (hold) or send the displayed value. Reversal of measuring direction. Zeroing in any position. Supplied with: 1 battery No. 081560 size CR2032 Optional extras: Attachment square No. 453600 and data cable No. 497080. Spare parti Blade slot No. 453510. Beam length ZH'IlIllB Digital universal protractor Measuring range Reversible reading Error limit Repetition accuracy Battery life approx. degrees arcmin arcmin h marui-keiki Attachment square Suitable for: Protractors No. 453500,453800,454000. Application: The attachment square allows angle measurements from two different reference planes. It can be fixed on both sides and in any position inside the slotted shank on the protractor. Attachment square 51.88 i marui-keiki Digital precision protractor For easy measurement of angles on components. Can be used with caliper or with digital height gauge. Very easy to fit to caliper - uses only two clamping screws. Can be attached to digital height gauge or marking-out device using square holder. Supplied with: Square holder for mounting on height gauges, 2 batteries No. 081555 size LR3. r Beam length mm 180 I rtrTiTlIJ Digital precision protractor 469.26 Measuring range degrees 180 Reversible reading 1 minute or 0,01° Error limit arcmin ±5' Length of measuring beam mm 35 Weight g 150 138 Stand ring for secure upright position. 863.28 -360-360 minute or 0,01° ±2' 1 2000 Reference point. Clamping for rule. Clamping screw for fixing thesetangle. Fine adjustment.
