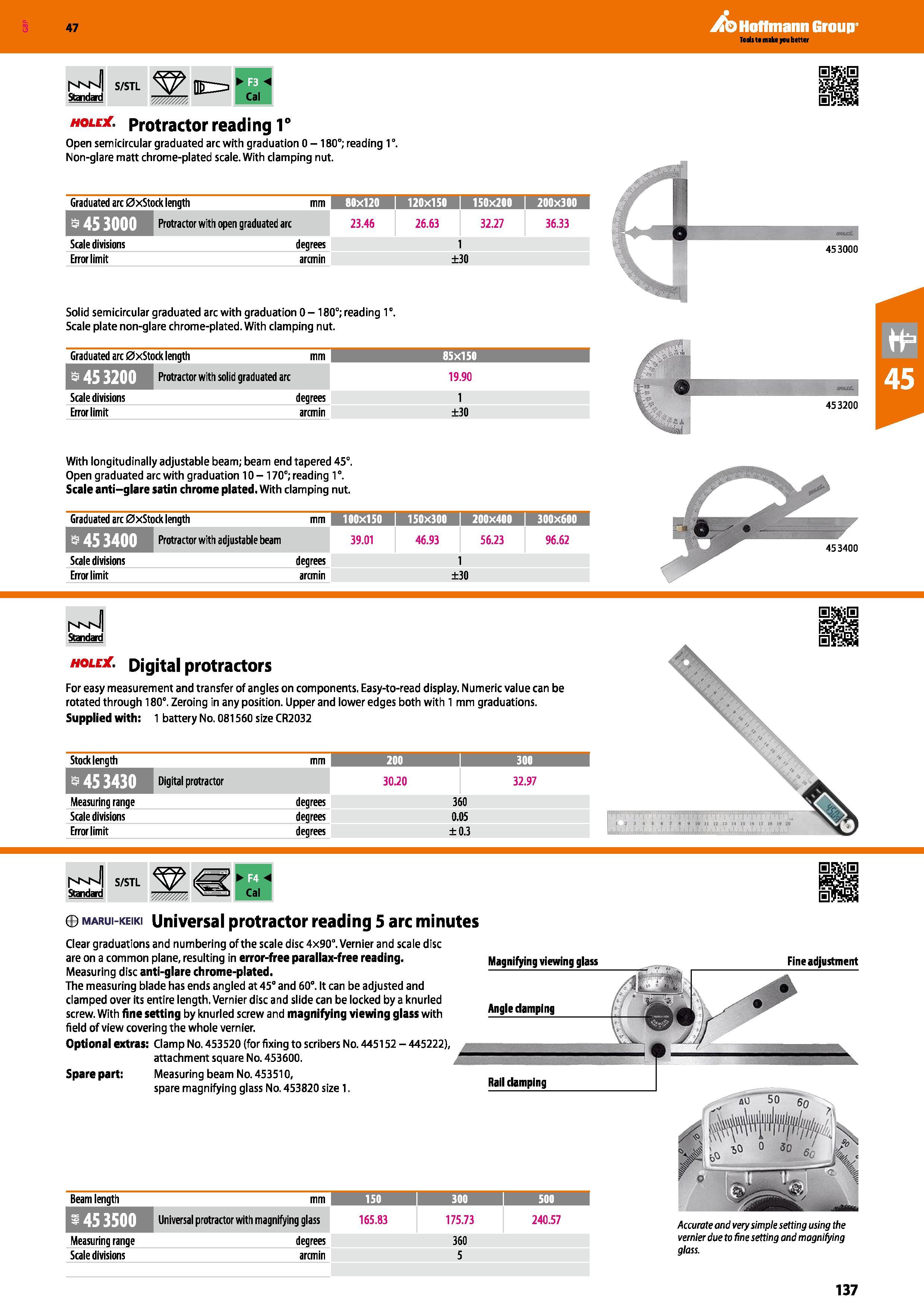

Hoffmann Group 47 Standad S/STL 'mum B Cal hole . Protractor read i ng 1 ° Open semicircular graduated arc with graduation 0 -180°; reading 1° Non-glare matt chrome-plated scale. With clamping nut. Graduated arc 0xStock length mm 80x120 1 120x150 1 150x200 1 200x300 3 45 3000 Protractor with open graduated arc 23.46 26.63 32.27 36.33 Scale divisions Error limit degrees arcmin Solid semicircular graduated arc with graduation 0 -180°; reading 1 °. Scale plate non-glare chrome-plated. With clamping nut. 1 ±30 Graduated arc 0xStock length mm 85X150 1 Protractor with solid graduated arc 19.90 Scale divisions degrees 1 Error limit arcmin ±30 453000 With longitudinally adjustable beam; beam end tapered 45°. Open graduated arc with graduation 10-170°; reading 1°. Scale anti-glare satin chrome plated. With clamping nut. Graduated arc 0xStock length mm 100x150 I 150x300 I 200x400 I 300x600 453400 Protractor with adjustable beam 39.01 46.93 56.23 96.62 Scale divisions Error limit degrees arcmin 1 ±30 vmJ Standard 052M ou . Digital protractors For easy measurement and transfer of angles on components. Easy-to-read display. Numeric value can be rotated through 180°. Zeroing in any position. Upper and lower edges both with 1 mm graduations. Supplied with: 1 battery No. 081560 size CR2032 Stock length BHSE3 200 I 300 45 3430 30.20 32.97 Measuring range degrees 360 Scale divisions degrees 0.05 Error limit degrees ±0.3 vmJ Standard S/STL G) marui-keiki Universal protractor reading 5 arc minutes Clear graduations and numbering of the scale disc 4x90°. Vernier and scale disc are on a common plane, resulting in error-free parallax-free reading. Measuring disc anti-glare chrome-plated. The measuring blade has ends angled at 45° and 60°. It can be adjusted and clamped over its entire length. Vernier disc and slide can be locked by a knurled screw. With fine setting by knurled screw and magnifying viewing glass with field of view covering the whole vernier. Optional extras: Clamp No. 453520 (for fixing to scribers No. 445152 - 445222), attachment square No. 453600. Spare part: Measuring beam No. 453510, spare magnifying glass No. 453820 size 1. Magnifying viewing glass Angle damping Fine adjustment Rail clamping SO SO 5q / My K 0 o So Beam length mm 150 i 300 I 500 1453500 Universal protractor with magnifying glass 165.83 175.73 240.57 Measuring range degrees 360 Scale divisions arcmin 5 Accurate and very simple setting using the vernier due to fine setting and magnifying glass. 137
