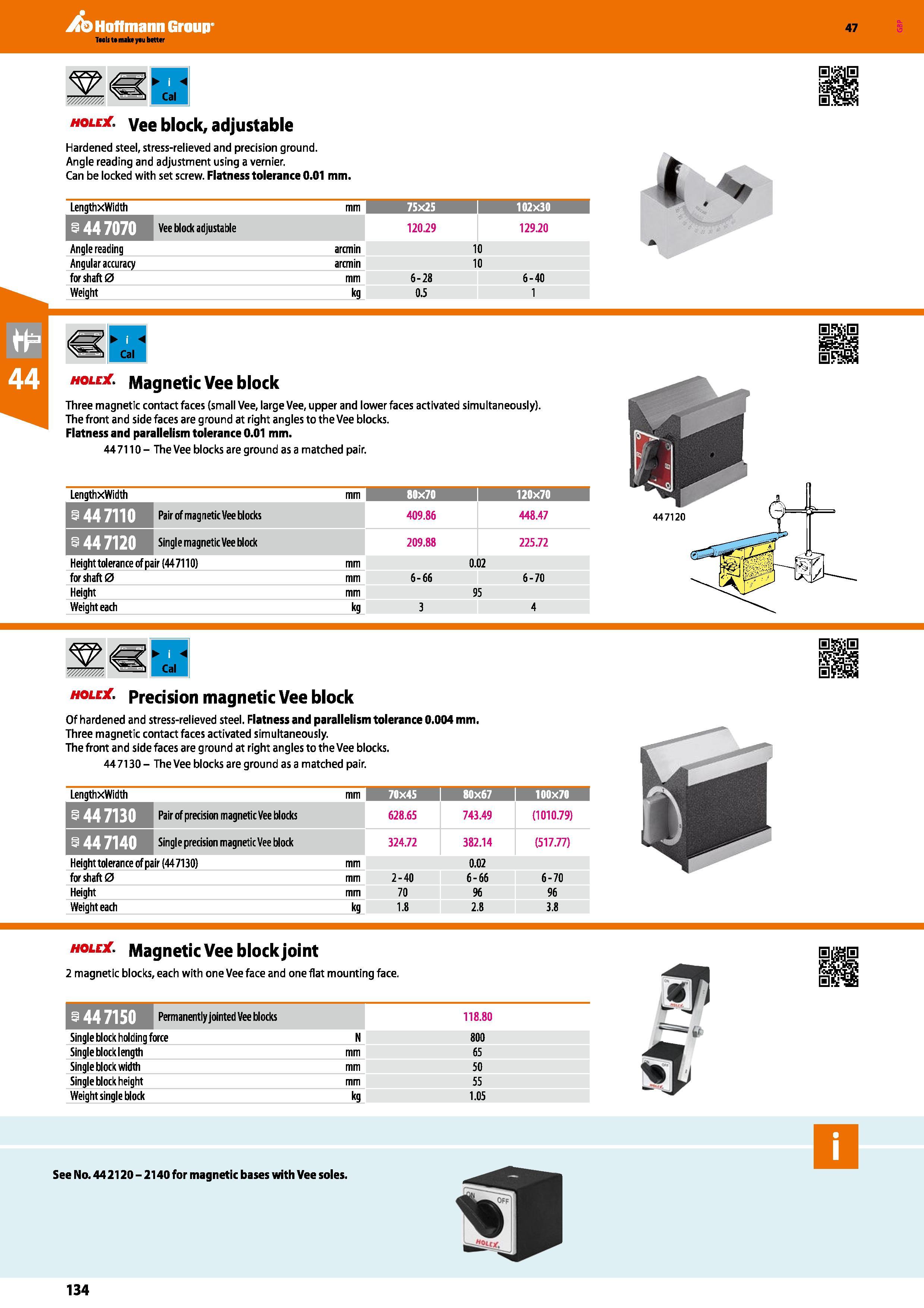

Hoffmann Group 47 V/WM. Cal hole , vee block, adjustable Hardened steel, stress-relieved and precision ground. Angle reading and adjustment using a vernier. Can be locked with set screw. Flatness tolerance 0.01 mm. Lengthxwidth mm 75x25 I 102x30 1 rTJTi/TiB Vee block adjustable 120.29 129.20 Angle reading arcmin 10 Angular accuracy arcmin 10 for shaft 0 mm 6-28 6-40 Weight kg 0.5 1 I Cal ou . Magnetic Vee block Three magnetic contact faces (small Vee, large Vee, upper and lower faces activated simultaneously). The front and side faces are ground at right angles to the Vee blocks. Flatness and parallelism tolerance 0.01 mm. 44 7110 - The Vee blocks are ground as a matched pair. Lengthxwidth mm 80x70 120x70 I Pair of mag netic Vee blocks 409.86 448.47 rTJJrTjB Single magnetic Vee block 209.88 225.72 Height tolerance of pair (44 7110) for shaft 0 Height Weight each mm kg 6-66 3 0.02 95 6-70 4 ‘mm, Cal hole . Precision magnetic Vee block Of hardened and stress-relieved steel. Flatness and parallelism tolerance 0.004 mm. Three magnetic contact faces activated simultaneously. The front and side faces are ground at right angles to the Vee blocks. 447130- The Vee blocks are ground as a matched pair. Lengthxwidth mm 70X45 i 80x67 I 100X70 j 447130 Pair of precision magnetic Vee blocks 628.65 743.49 (1010.79) 447140 Single precision magnetic Vee block 324.72 382.14 (517.77) Height tolerance of pair (44 7130) mm 0.02 for shaft 0 mm 2-40 6-66 6-70 Height mm 70 96 96 Weight each kg 1.8 2.8 3.8 holex. Magnetic Vee block joint 2 magnetic blocks, each with one Vee face and one flat mounting face. Permanently jointed Vee blocks 118.80 Single block holding force N 800 Single block length mm 65 Single block width mm 50 Single block height mm 55 Weight single block kg 1.05 See No. 44 2120 - 2140 for magnetic bases with Vee soles. 134
