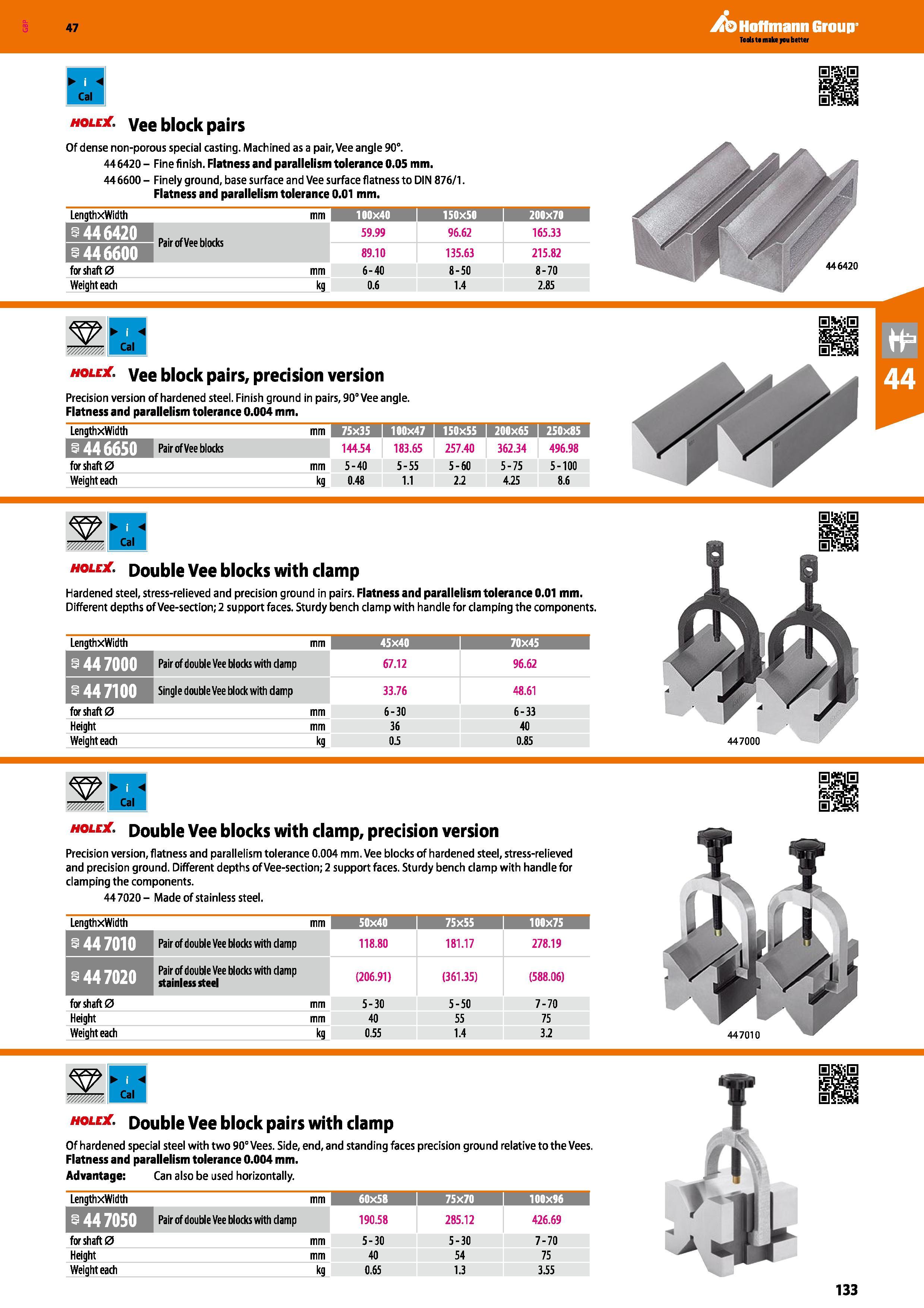

Hoffmann Group 47 Cal I hole Vee block pairs Of dense non-porous special casting. Machined as a pair, Vee angle 90°. 446420 - Fine finish. Flatness and parallelism tolerance 0.05 mm. 446600 - Finely ground, base surface and Vee surface flatness to DIN 876/1. Flatness and parallelism tolerance 0.01 mm. LengthxWidth mm 100X40 I 150X50 i 200X70 1 446420 Pair of Vee blocks 59.99 96.62 165.33 446600 89.10 135.63 215.82 for shaft 0 mm 6-40 8-50 8-70 Weight each kg 0.6 1.4 2.85 vmm Cal hole , vee block pairs, precision version Precision version of hardened steel. Finish ground in pairs, 90° Vee angle. Flatness and parallelism tolerance 0.004 mm. LengthxWidth mm 75x35 I 100x47 I 150x55 1 200x65 1 250x85 1 I 44 6650 BUI 144.54 183.65 257.40 362.34 496.98 for shaft 0 mm 5-40 5-55 5-60 5-75 5-100 Weight each kg 0.48 1.1 2.2 4.25 8.6 Cal I hole . Double Vee blocks with damp Hardened steel, stress-relieved and precision ground in pairs. Flatness and parallelism tolerance 0.01 mm. Different depths of Vee-section; 2 support faces. Sturdy bench clamp with handle for clamping the components. LengthxWidth mm 45x40 i 70X45 Pair of double Vee blocks with damp 67.12 96.62 11 lIlB Single double Vee block with damp 33.76 48.61 for shaft 0 mm 6-30 6-33 Height mm 36 40 Weight each kg 0.5 0.85 vmm Cal holex. Double Vee blocks with damp, precision version Precision version, flatness and parallelism tolerance 0.004 mm. Vee blocks of hardened steel, stress-relieved and precision ground. Different depths of Vee-section; 2 support faces. Sturdy bench clamp with handle for clamping the components. 447020- Made of stainless steel. LengthxWidth mm 50x40 75x55 I 100x75 Pair of double Vee blocks with clamp 118.80 181.17 278.19 44 7020 Pair of double Vee blocks with clamp stainless steel (206.91) (361.35) (588.06) for shaft 0 mm 5-30 5-50 7-70 Height mm 40 55 75 Weight each kg 0.55 1.4 3.2 hole . Double Vee block pairs with clamp Of hardened special steel with two 90° Vees. Side, end, and standing faces precision ground relative to the Vees. Flatness and parallelism tolerance 0.004 mm. Advantage: Can also be used horizontally. LengthxWidth mm 60x58 75X70 100X96 i 44 7050 Pair of double Vee blocks with clamp 190.58 285.12 426.69 for shaft 0 mm 5-30 5-30 7-70 Height mm 40 54 75 Weight each kg 0.65 1.3 3.55 f T ft 'Jtr 447000 133
