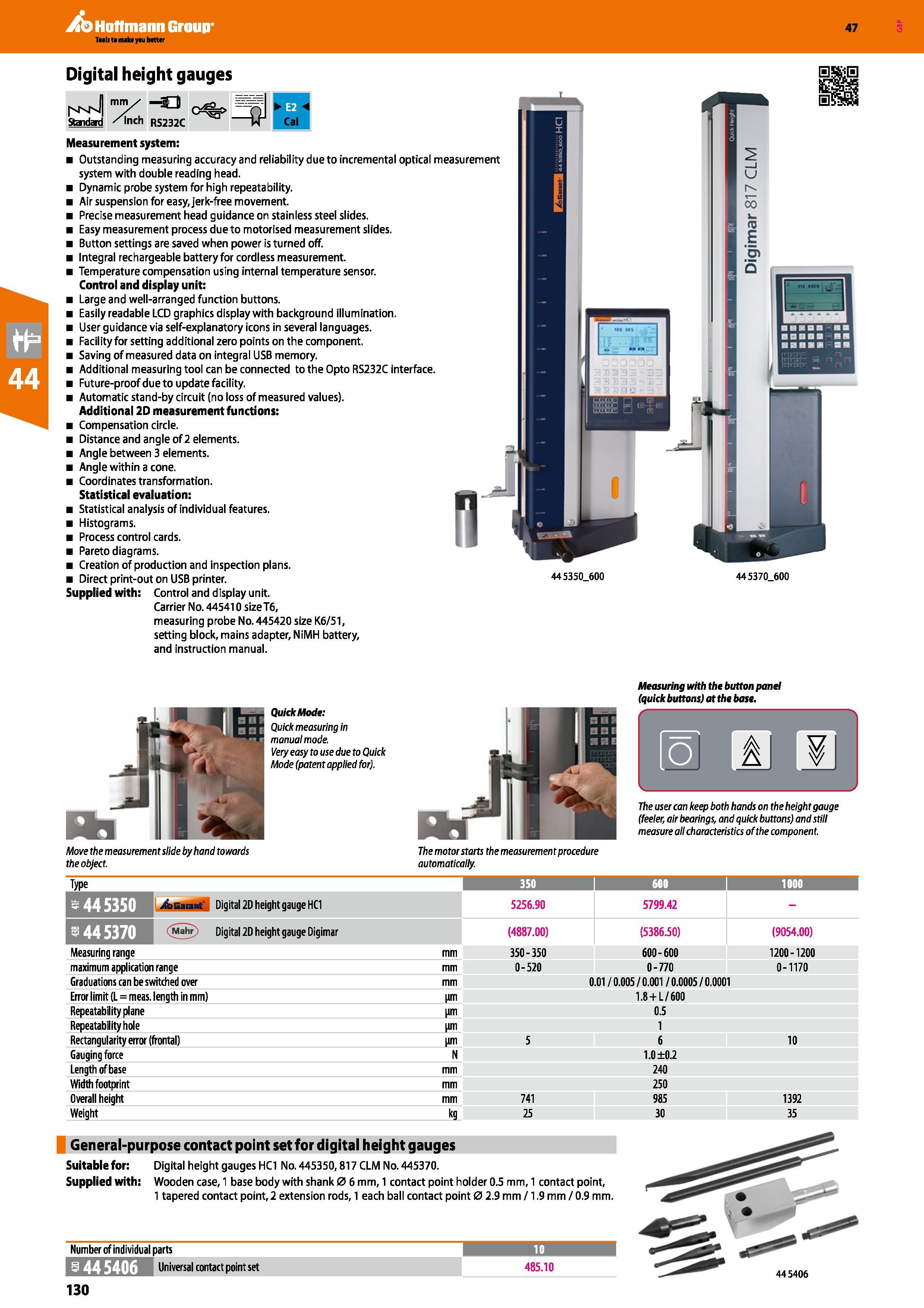

Hoffmann Group 47 Digital height gauges lm7 Standard /Inch -SJ RS232C ijlP1 l i 1 J Cal Measurement system: Outstanding measuring accuracy and reliability due to incremental optical measurement system with double reading head. Dynamic probe system for high repeatability. Air suspension for easy, jerk-free movement. Precise measurement head guidance on stainless steel slides. Easy measurement process due to motorised measurement slides. Button settings are saved when power is turned off. Integral rechargeable battery for cordless measurement. Temperature compensation using internal temperature sensor. Control and display unit: Large and well-arranged function buttons. Easily readable LCD graphics display with background illumination. User guidance via self-explanatory icons in several languages. Facility for setting additional zero points on the component. Saving of measured data on integral USB memory. Additional measuring tool can be connected to the Opto RS232C interface. Future-proof due to update facility. Automatic stand-by circuit (no loss of measured values). Additional 2D measurement functions: Compensation circle. Distance and angle of 2 elements. Angle between 3 elements. Angle within a cone. Coordinates transformation. Statistical evaluation: Statistical analysis of individual features. Histograms. Process control cards. Pareto diagrams. Creation of production and inspection plans. Direct print-out on USB printer. Supplied with: Control and display unit. Carrier No. 445410 size T6, measuring probe No. 445420 size K6/51, setting block, mains adapter, NiMH battery, and instruction manual. IT 445350_600 445370_600 Measuring with the button panel (quick buttons) at the base. QuickMode: Quick measuring in manual mode Very easy to use due to Quick Mode (patent applied for). The user can keep both hands on the height gauge (feeler, air bearings, and quick buttons) and still measure all characteristics of the componen f. Move the measurement slide by hand towards the object. The motor starts the measuremen r procedure automatically. Type 350 > 600 1000 I 44 5350 jShsm L Dig ital 2D height gauge HC1 5256.90 5799.42 - 5 44 5370 Mahr Digital 2D heightgauge Digimar (4887.00) (5386.50) (9054.00) Measuring range mm 350 - 350 600-600 1200-1200 maximum application range mm 0-520 0-770 0-1170 Graduations can be switched over mm 0.01/0.005 / 0.001/0.0005 / 0.0001 Error limit (L = meas. length in mm) im 1.8 + L/600 Repeatability plane im 0.5 Repeatability hole im 1 Rectangularity error (frontal) urn 5 6 10 Gauging force N 1.0 ±0.2 Length of base mm 240 Width footprint mm 250 Overall height mm 741 985 1392 Weight kg 25 30 35 General-purpose contact point set for digital height gauges Suitable for: Digital height gauges HC1 No. 445350,817 CLM No. 445370. Supplied with: Wooden case, 1 base body with shank 0 6 mm, 1 contact point holder 0.5 mm, 1 contact point, 1 tapered contact point, 2 extension rods, 1 each ball contact point 0 2.9 mm /1.9 mm / 0.9 mm. Numberof individual parts 10 L 445406 Universal contact point set 485.10 130
