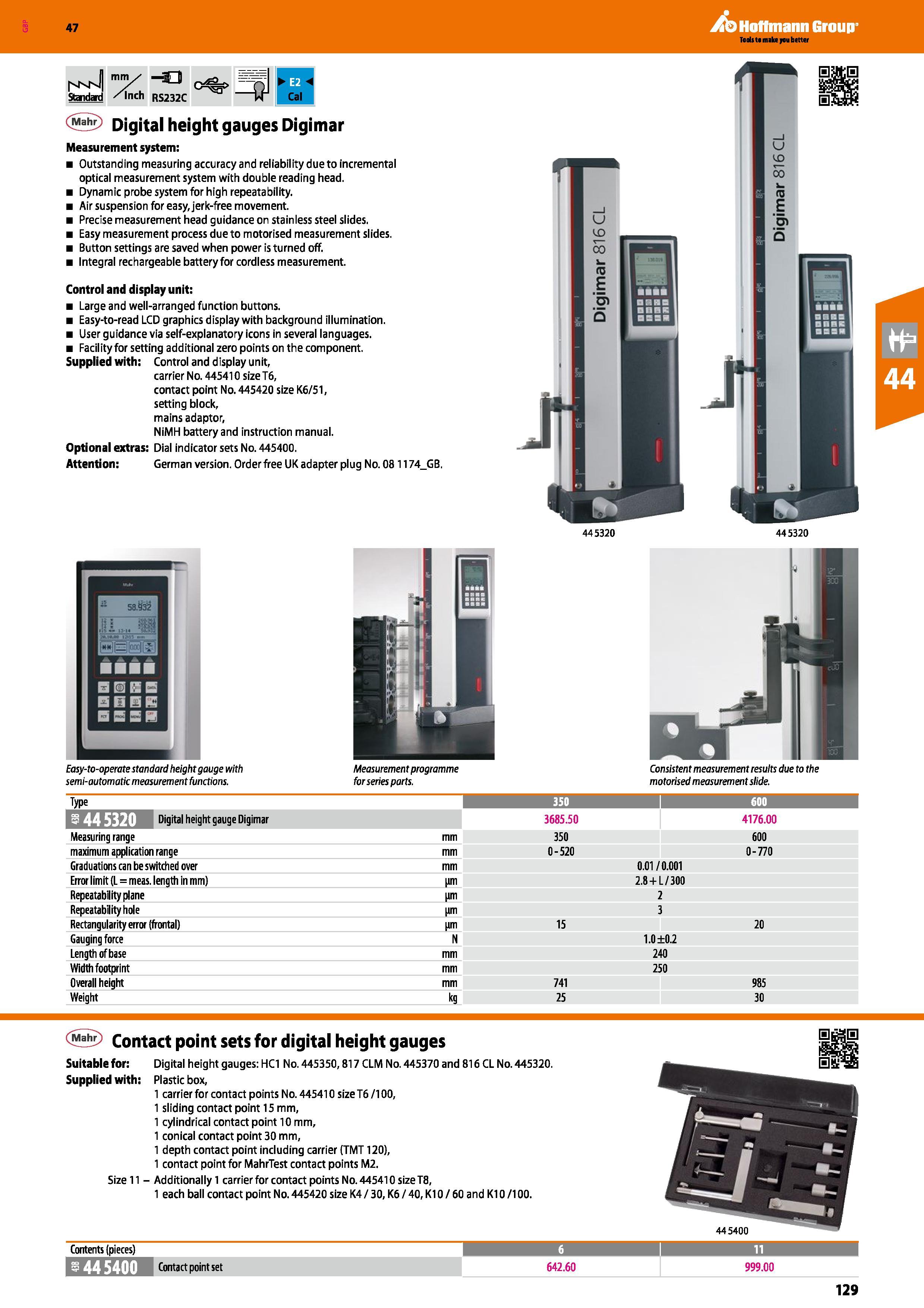

Hoffmann Group 47 Cal MMs mV - = Standard /Inch RS232C <5 Digital height gauges Digimar Measurement system: Outstanding measuring accuracy and reliability due to incremental optical measurement system with double reading head. Dynamic probe system for high repeatability. Air suspension for easy, jerk-free movement. Precise measurement head guidance on stainless steel slides. Easy measurement process due to motorised measurement slides. Button settings are saved when power is turned off. Integral rechargeable battery for cordless measurement. Control and display unit: Large and well-arranged function buttons. Easy-to-read LCD graphics display with background illumination. User guidance via self-explanatory icons in several languages. Facility for setting additional zero points on the component. Supplied with: Control and display unit, carrier No. 445410 size T6, contact point No. 445420 size K6/51, setting block, mains adaptor, NiMH battery and instruction manual. Optional extras: Dial indicator sets No. 445400. Attention: German version. Order free UK adapter plug No. 081174_GB. Easy-to-operate standard height gauge with Measurement programme Consistent measurement results due to the semi-automatic measurement functions. for series parts. motorised measurement slide. Type 350 1 600 FFET7IW Dioital heiaht gauge Diaimar 3685.50 4176.00 Measuring range mm 350 600 maximum application range mm 0-520 0-770 Graduations can be switched over mm 0.01/0.001 Error limit (L = meas. length in mm) im 2.8 + L/300 Repeatability plane im 2 Repeatability hole im 3 Rectangularity error (frontal) im 15 20 Gauging force N 1.0 ±0.2 Length of base mm 240 Width footprint mm 250 Overall height mm 741 985 Weight kg 25 30 Contact point sets for digital height gauges Suitable for: Digital height gauges: HC1 No. 445350,817 CLM No. 445370 and 816 CL No. 445320. Supplied with: Plastic box, 1 carrier for contact points No. 445410 size T6 /100, 1 sliding contact point 15 mm, 1 cylindrical contact point 10 mm, 1 conical contact point 30 mm, 1 depth contact point including carrier (TMT120), 1 contact point for MahrTest contact points M2. Size 11 - Additionally 1 carrier for contact points No. 445410 size T8, 1 each ball contact point No. 445420 size K4 / 30, K6 / 40, K10 / 60 and K10 /100. Contents (pieces) 11 44 5400 Contact point set 642.60 999.00 445400
