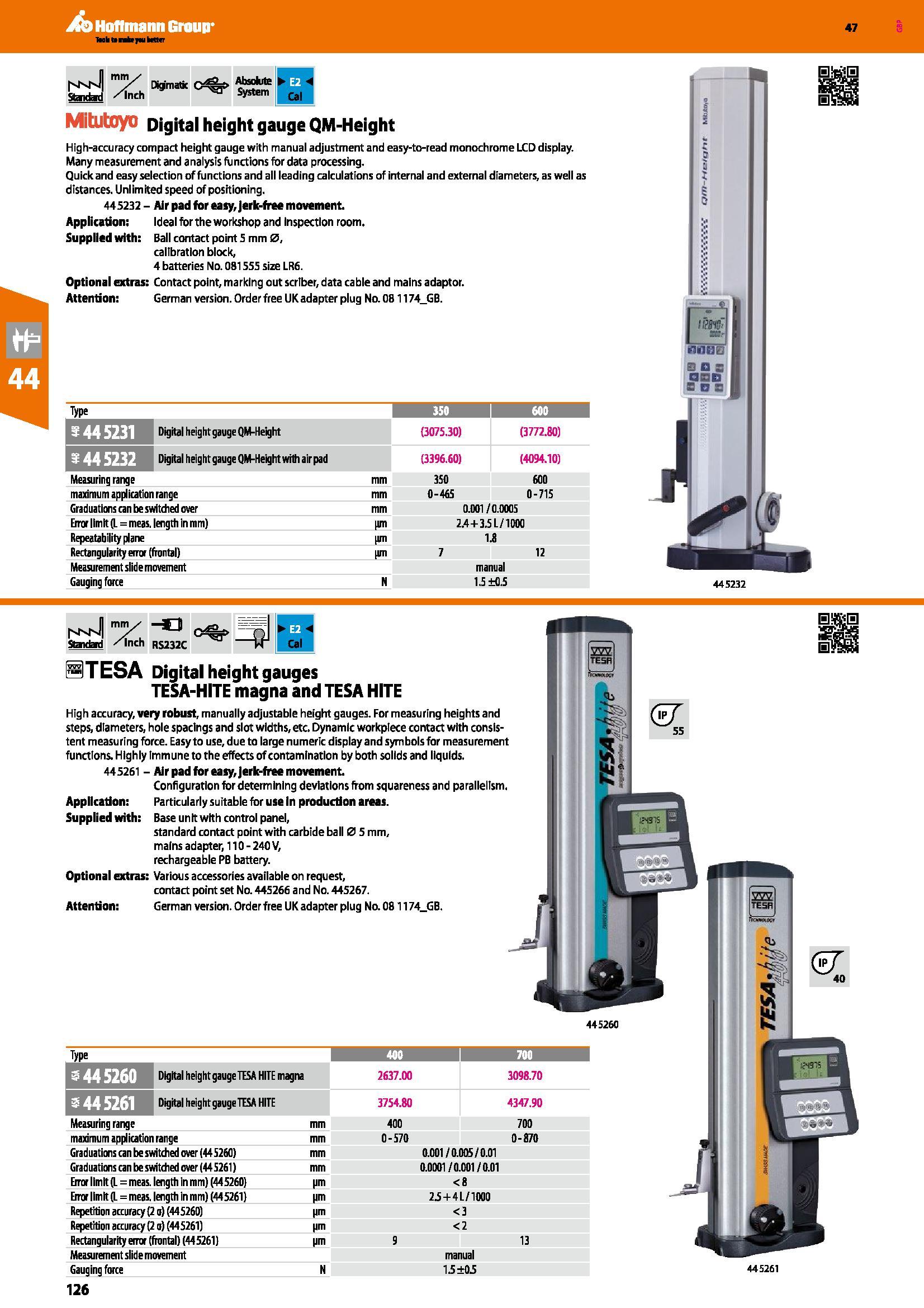

Dig'matk Absolute System Q Cal Mitutoyo Digital height gauge QM-Height High-accuracy compact height gauge with manual adjustment and easy-to-read monochrome LCD display. Many measurement and analysis functions lor data processing. Quick and easy selection of functions and all leading calculations of internal and external diameters, as well as distances. Unlimited speed of positioning. 445232 - Air pad for easy. Jerk-free movement. Application: Ideal lor the workshop and inspection room. Supplied with: Ball contact point 5 mm 0, calibration block, 4 batteries No. 081555 size LR6. Optional extras: Contact point, marking out scriber, data cable and mains adaptor. Attention: German version. Order free UK adapter plug No. 081174_GB. Type 350 600 ETTlrxT I Digital height gauge QM-Height (3075.30) (3772.80) E L Digital height gauge QM-Height with air pad (3396.60) (4094.10) Measuring range mm 350 600 maximum application range mm 0-465 0-715 Graduations can be switdied over mm 0.001 /0.0005 Error limit (L=meas. length In mm) im 2.4+3.5 L/1000 Repeatability plane nm 1.8 Rectangularity error (frontal) nm 7 12 Measurement slide movement manual Gauging force N 1.5 ±0.5 445232 my -O Staidaid /Inch RS232C STESA Digital height gauges TESA-HITE magna and TESA HITE High accuracy, very robust, manually adjustable height gauges. For measuring heights and steps, diameters, hole spactngs and slot widths, etc. Dynamic workpiece contact with consistent measuring force. Easy to use, due to large numeric display and symbols for measurement functions. Highly Immune to the effects of contamination by both solids and liquids. 445261 - Air pad for easy, jerk-free movement. Configuration for determining deviations from squareness and parallelism, Application: Particularly suitable for use in production areas. Supplied with: Base un it with control panel, standard contact point with carbide ball 0 5 mm, mains adapter, 110 - 240 V, rechargeable PB battery. Optional extras: Various accessories available on request, contact point set No. 445266 and No. 445267. Attention: German version. Order free UK adapter plug No. 081174_GB. 445260 Type 400 I 700 M45260 Digital height gauge TESA HITE magna 2637.00 3098.70 5445261 Digital height gauge TESA HITE 3754.80 4347.90 Measuring range mm 400 700 manmum application range mm 0-570 0-870 brad uatiors can be switdied over (44 SZmJ) mm Graduations can be switdied over (445261) mm Error limit (L=meas. length in mm) (445260) im Error limit (L=meas. length in mm) (445261) im Repetition accuracy (2 o) (445260) pm Repetition accuracy (2 o) (445261) pm Rectangularity efror (frontal) (445261) im Measurement slide movement Gauging force N 126 0.0001/0.001/0.01 <8 25+4L/1000 <3 <2 manual 15 ±05 445261
