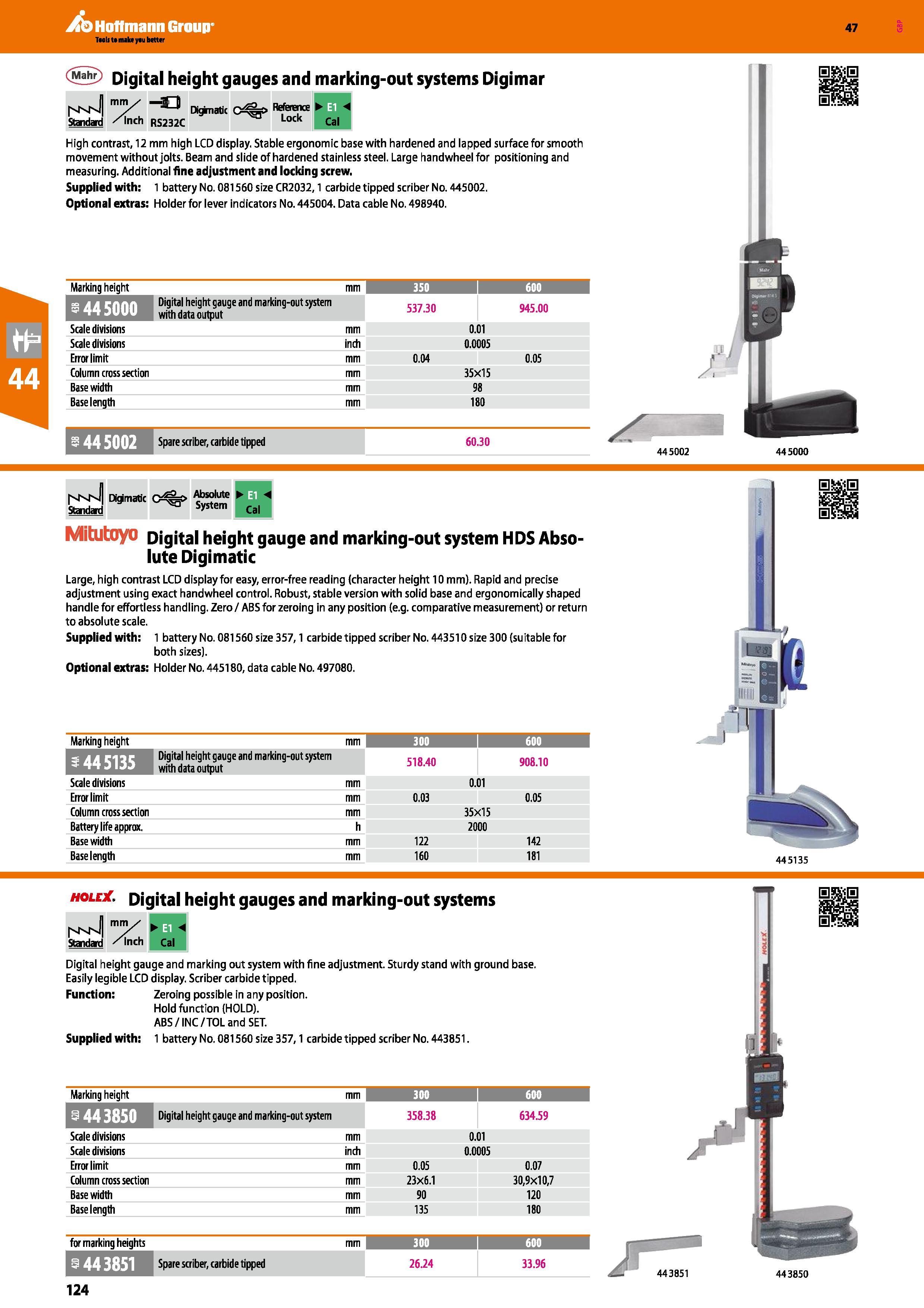

Hoffmann Group 47 Digital height gauges and marking-out systems Digimar r lm7 Standard /Inch -33 RS232C Digknatic 0%> Cal High contrast, 12 mm high LCD display. Stable ergonomic base with hardened and lapped surface for smooth movement without jolts. Beam and slide of hardened stainless steel. Large handwheel for positioning and measuring. Additional fine adjustment and locking screw. Supplied with: 1 battery No. 081560 size CR2032,1 carbide tipped scriber No. 445002. Optional extras: Holder for lever indicators No. 445004. Data cable No. 498940. Marking height mm 350 1 600 I gPfTTTTW Digital height gauge and marking-out system with data output 537.30 945.00 Scale divisions mm 0.01 Scale divisions inch 0.0005 Error limit mm 0.04 0.05 Column cross section mm 35x15 Base width mm 98 Base length mm 180 Spare scriber, carbide tipped 60.30 Mitutoyo Digital height gauge and marking-out system HDS Absolute Digimatic Large, high contrast LCD display for easy, error-free reading (character height 10 mm). Rapid and precise adjustment using exact handwheel control. Robust, stable version with solid base and ergonomically shaped handle for effortless handling. Zero/ ABS for zeroing in any position (e.g. comparative measurement) or return to absolute scale. Supplied with: 1 battery No. 081560 size 357,1 carbidetippedscriberNo.443510size300(suitablefor both sizes). Optional extras: Holder No. 445180, data cable No. 497080. Marking height mm 300 1 600 s 44 5135 Digital height gauge and marking-out system with data output 518.40 908.10 Scale divisions mm 0.01 Error limit mm 0.03 0.05 Column cross section mm 35x15 Battery life approx. h 2000 Base width mm 122 142 Base length mm 160 181 holex. Digital height gauges and marking-out systems I'vNlJI Standard Digital height gauge and marking out system with fine adjustment. Sturdy stand with ground base. Easily legible LCD display. Scriber carbide tipped. Function: Zeroing possible in any position. Hold function (HOLD). ABS/INC/TOLand SET. Supplied with: 1 battery No. 081560 size 357,1 carbide tipped scriber No. 443851. 445135 Marking height mm 300 1 600 1 Digital height gauge and marking-out system 358.38 634.59 Scale divisions mm 0.01 Scale divisions inch 0.0005 Error limit mm 0.05 0.07 Column cross section mm 23x6.1 30,9x10,7 Base width mm 90 120 Base length mm 135 180 for marking heights mm 300 i 600 I Spare scriber, carbide tipped 26.24 33.96 445002 445000 443850
