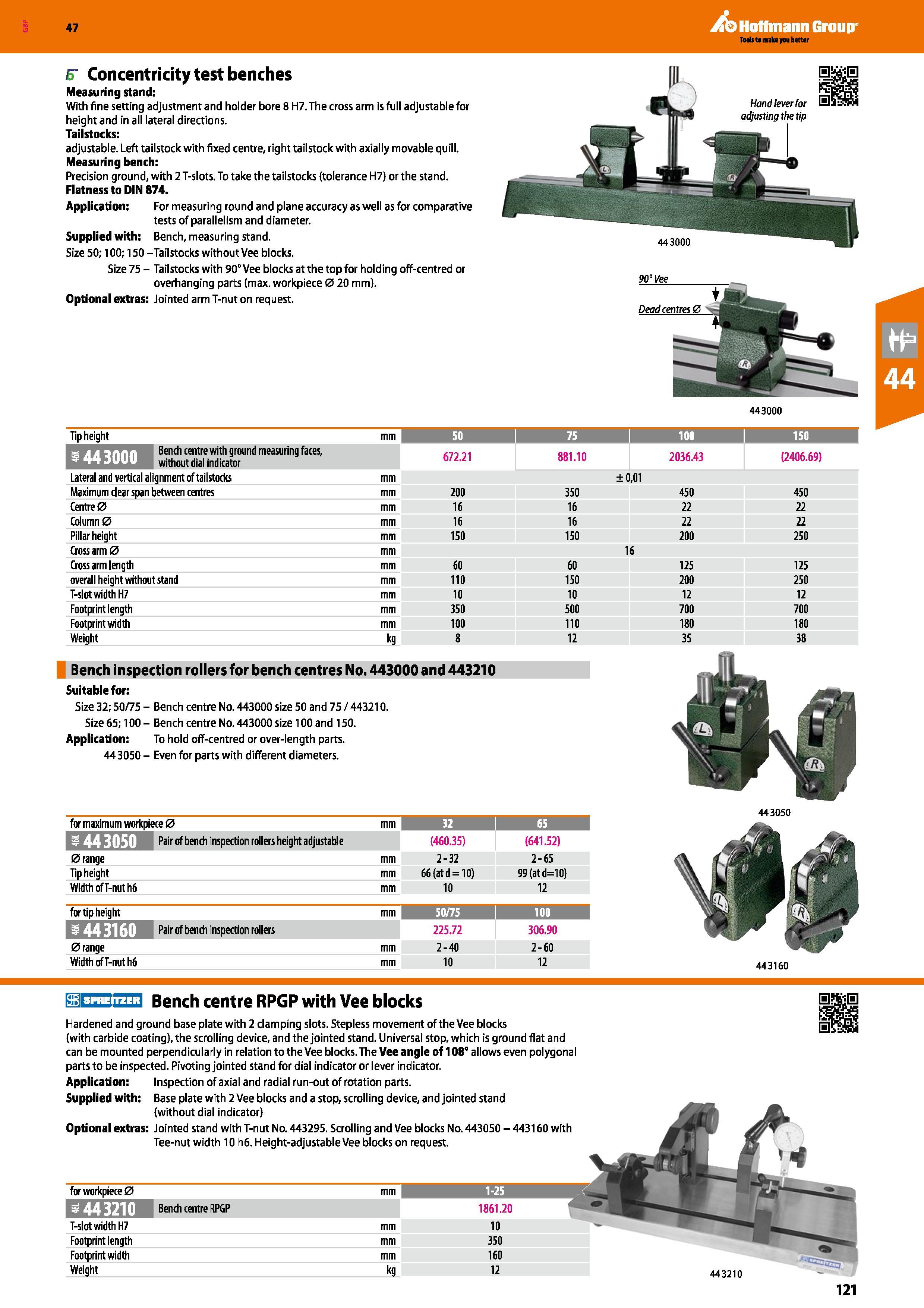

Hoffmann Group 47 Concentricity test benches Measuring stand: With fine setting adjustment and holder bore 8 H7. The cross arm is full adjustable for height and in all lateral directions. Tailstocks: adjustable. Left tailstock with fixed centre, right tailstock with axially movable quill. Measuring bench: Precision ground, with 2 T-slots. To take the tailstocks (tolerance H7) or the stand. Flatness to DIN 874. Application: For measuring round and plane accuracy as well as for comparative tests of parallelism and diameter. Supplied with: Bench, measuring stand. Size 50; 100; 150 -Tailstocks without Vee blocks. Size 75 - Tailstocks with 90° Vee blocks at the top for holding off-centred or overhanging parts (max. workpiece 0 20 mm). Optional extras: Jointed arm T-nut on request. 443000 Tip height mm 50 1 75 I 100 I 15 S Bench centre with ground measuring faces, without dial indicator 672.21 881.10 2036.43 (2406.69) Lateral and vertical alignment of tailstocks mm ±0,01 Maximum dear span between centres mm 200 350 450 450 Centre 0 mm 16 16 22 22 Column 0 mm 16 16 22 22 Pillar height mm 150 150 200 250 Cross arm 0 mm 16 Cross arm length mm 60 60 125 125 overall height without stand mm 110 150 200 250 T-slot width H7 mm 10 10 12 12 Footprint length mm 350 500 700 700 Footprint width mm 100 110 180 180 Weight kg 8 12 35 38 Bench inspection rollers for bench centres No. 443000 and 443210 Suitable for: Size 32; 50/75 - Bench centre No. 443000 size 50 and 75 / 443210. Size 65; 100 - Bench centre No. 443000 size 100 and 150. Application: To hold off-centred or over-length parts. 443050 - Even for parts with different diameters. for maximum workpiece 0 mm 32 65 1 FFCTiTTM Pair of bench insDection rollers heioht adjustable (460.35) (641.52) 0 range mm 2-32 2-65 Tip height mm 66 (at d = 10) 99 (atd=10) Width of T-nut h6 mm 10 12 for tip height mm 50/75 I 100 I rffcJTitjH Pair of bench inspection rollers 225.72 306.90 0 range mm 2-40 2-60 Width of T-nut h6 mm 10 12 443050 443160 Eifr-uiHT-M: Bench centre RPGP with Vee blocks Hardened and ground base plate with 2 clamping slots. Stepless movement of the Vee blocks (with carbide coating), the scrolling device, and the jointed stand. Universal stop, which is ground flat and can be mounted perpendicularly in relation to the Vee blocks. The Vee angle of 108° allows even polygonal parts to be inspected. Pivoting jointed stand for dial indicator or lever indicator. Application: Inspection of axial and radial run-out of rotation parts. Supplied with: Base plate with 2 Vee blocks and a stop, scrolling device, and jointed stand (without dial indicator) Optional extras: Jointed stand with T-nut No. 443295. Scrolling and Vee blocks No. 443050 - 443160 with Tee-nut width 10 h6. Height-adjustable Vee blocks on request. for workpiece 0 mm 1-25 mSB N 443210 1861.20 T-slot width H7 mm 10 Footprint length mm 350 Footprint width mm 160 Weight kg 12 443210 121 Hand lever for 0 adjusting the tip 443000
