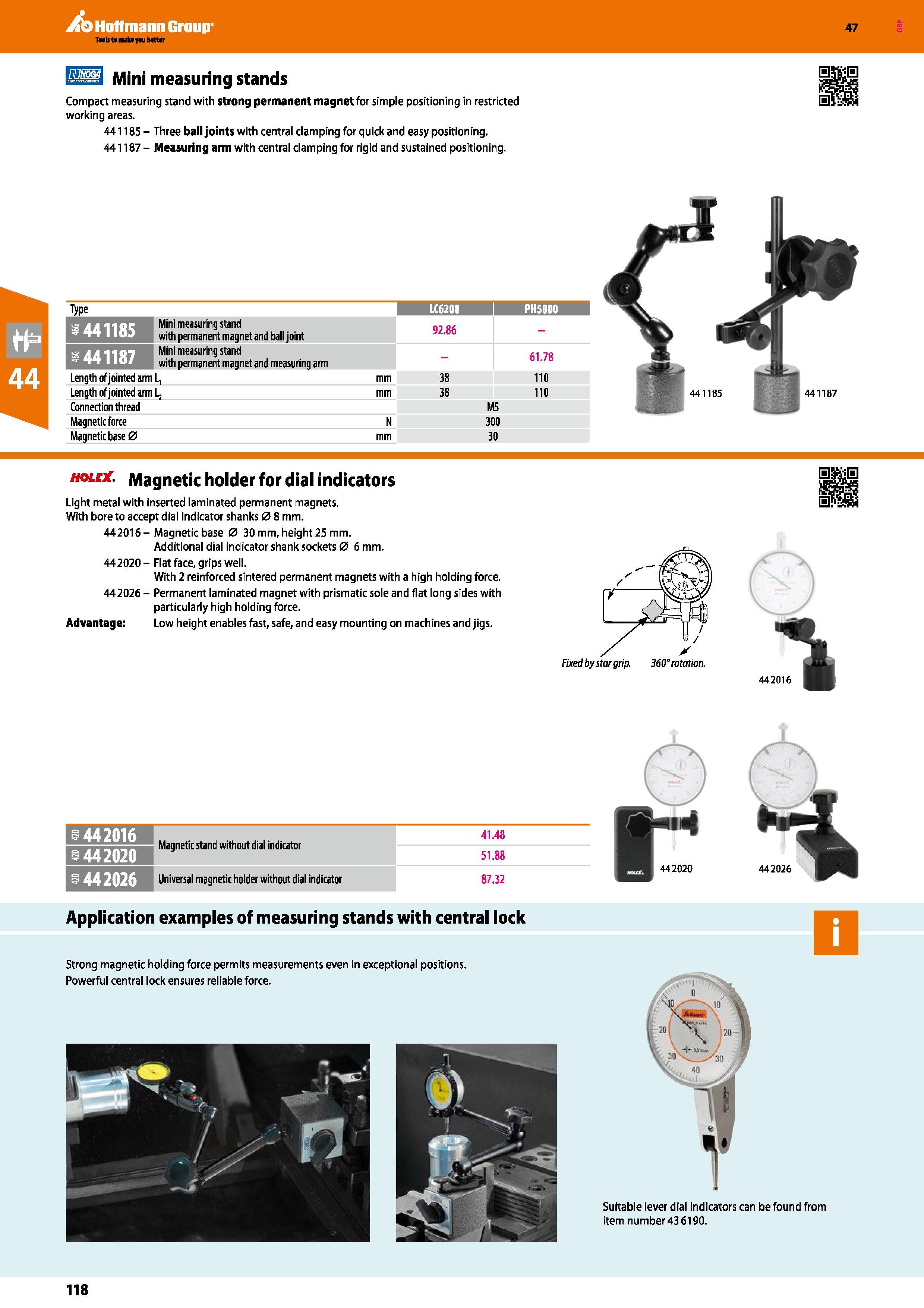

Hoffmann Group 47 Mini measuring stands Compact measuring stand with strong permanent magnet for simple positioning in restricted working areas. 441185 - Three ball joints with central clamping for quick and easy positioning. 441187 - Measuring arm with central clamping for rigid and sustained positioning. Type LC6200 1 PH5000 Mini measuring stand with permanent magnet and ball joint 92.86 - Mini measuring stand with permanent magnet and measuring arm - 61.78 Length of jointed arm L, mm 38 110 Length of jointed arm L2 mm 38 110 Connection thread M5 Magnetic force N 300 Magnetic base 0 mm 30 holex. Magnetic holder for dial indicators Light metal with inserted laminated permanent magnets. With bore to accept dial indicator shanks 0 8 mm. 442016-Magnetic base 0 30 mm, height 25 mm. Additional dial indicator shank sockets 0 6 mm. 442020- Flat face, grips well. With 2 reinforced sintered permanent magnets with a high holding force. 442026 - Permanent laminated magnet with prismatic sole and flat long sides with particularly high holding force. Advantage: Low height enables fast, safe, and easy mounting on machines and jigs. Fixed by star grip. 360° rotation. 1 442016 Application examples of measuring stands with central lock Strong magnetic holding force permits measurements even in exceptional positions. Powerful central lock ensures reliable force. EEHH9 Magnetic stand without dial indicator 41.48 44 2020 51.88 44 2026 Universal magnetic holder without dial indicator 87.32 442020 Suitable lever dial indicators can be found from item number 43 6190. 442026 118
