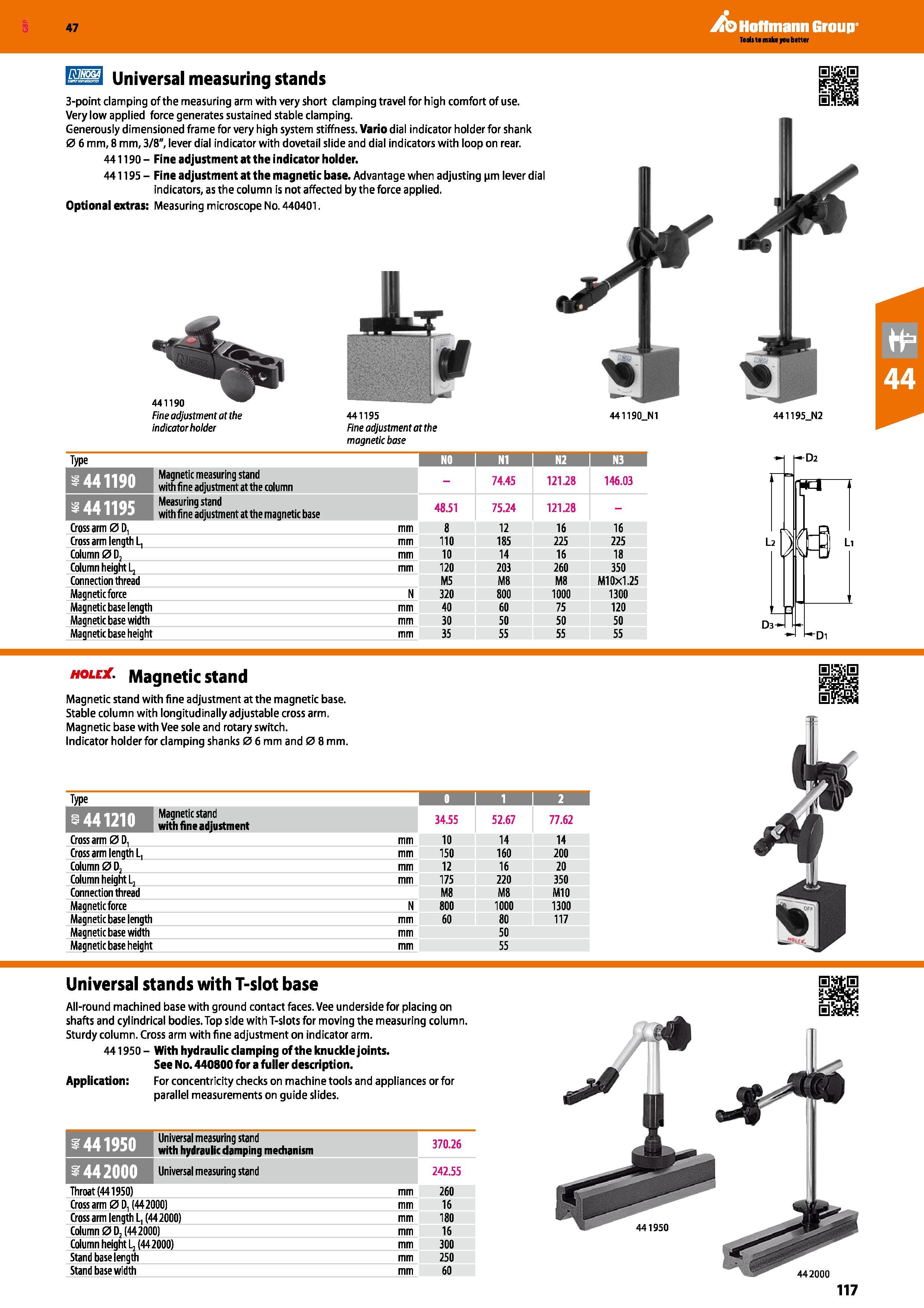

Hoffmann Group 47 Universal measuring stands 3-point clamping of the measuring arm with very short clamping travel for high comfort of use. Very low applied force generates sustained stable clamping. Generously dimensioned frame for very high system stiffness. Vario dial indicator holder for shank 0 6 mm, 8 mm, 3/8", lever dial indicator with dovetail slide and dial indicators with loop on rear. 441190 - Fine adjustment at the indicator holder. 441195 - Fine adjustment at the magnetic base. Advantage when adjusting jim lever dial indicators, as the column is not affected by the force applied. Optional extras: Measuring microscope No. 440401. 441190 Fine adjustment at the indicator holder 441195 Fine adjustment at the magnetic base 441190_N1 441195_N2 I D2 Magnetic measuring stand with fine adjustment at the column - 74.45 121.28 146.03 Measuring stand with fine adjustment at the magnetic base 48.51 75.24 121.28 - Cross arm 0 D, mm 8 12 16 16 Cross arm length L, mm 110 185 225 225 Column 0 Dj mm 10 14 16 18 Column height L, mm 120 203 260 350 Connection thread M5 M8 M8 M10X1.25 Magnetic force N 320 800 1000 1300 Magnetic base length mm 40 60 75 120 Magnetic base width mm 30 50 50 50 Magnetic base height mm 35 55 55 55 “D01 D3-I IF - -Di hole . Magnetic stand Magnetic stand with fine adjustment at the magnetic base. Stable column with longitudinally adjustable cross arm. Magnetic base with Vee sole and rotary switch. Indicator holder for clamping shanks 0 6 mm and 0 8 mm. Type 0 1 1 1 2 Magnetic stand with fine adjustment 34.55 52.67 77.62 Cross arm 00, mm 10 14 14 Cross arm length L, mm 150 160 200 Column 0 D2 mm 12 16 20 Column height L2 mm 175 220 350 Connection thread M8 M8 M10 Magnetic force N 800 1000 1300 Magnetic base length mm 60 80 117 Magnetic base width mm 50 Magnetic base height mm 55 Universal stands with T-slot base All-round machined base with ground contact faces. Vee underside for placing on shafts and cylindrical bodies.Top side with T-slots for moving the measuring column. Sturdy column. Cross arm with fine adjustment on indicator arm. 441950 - With hydraulic clamping of the knuckle joints. See No. 440800 for a fuller description. Application: For concentricity checks on machine tools and appliances or for parallel measurements on guide slides. Universal measuring stand with hydraulic damping mechanism 370.26 EEWlIlM Universal measuring stand 242.55 Throat (441950) mm 260 Cross arm 0D, (442000) mm 16 Cross arm length L, (442000) mm 180 Column 0D, (442000) mm 16 Column height L2 (442000) mm 300 Stand base length mm 250 Stand base width mm 60
