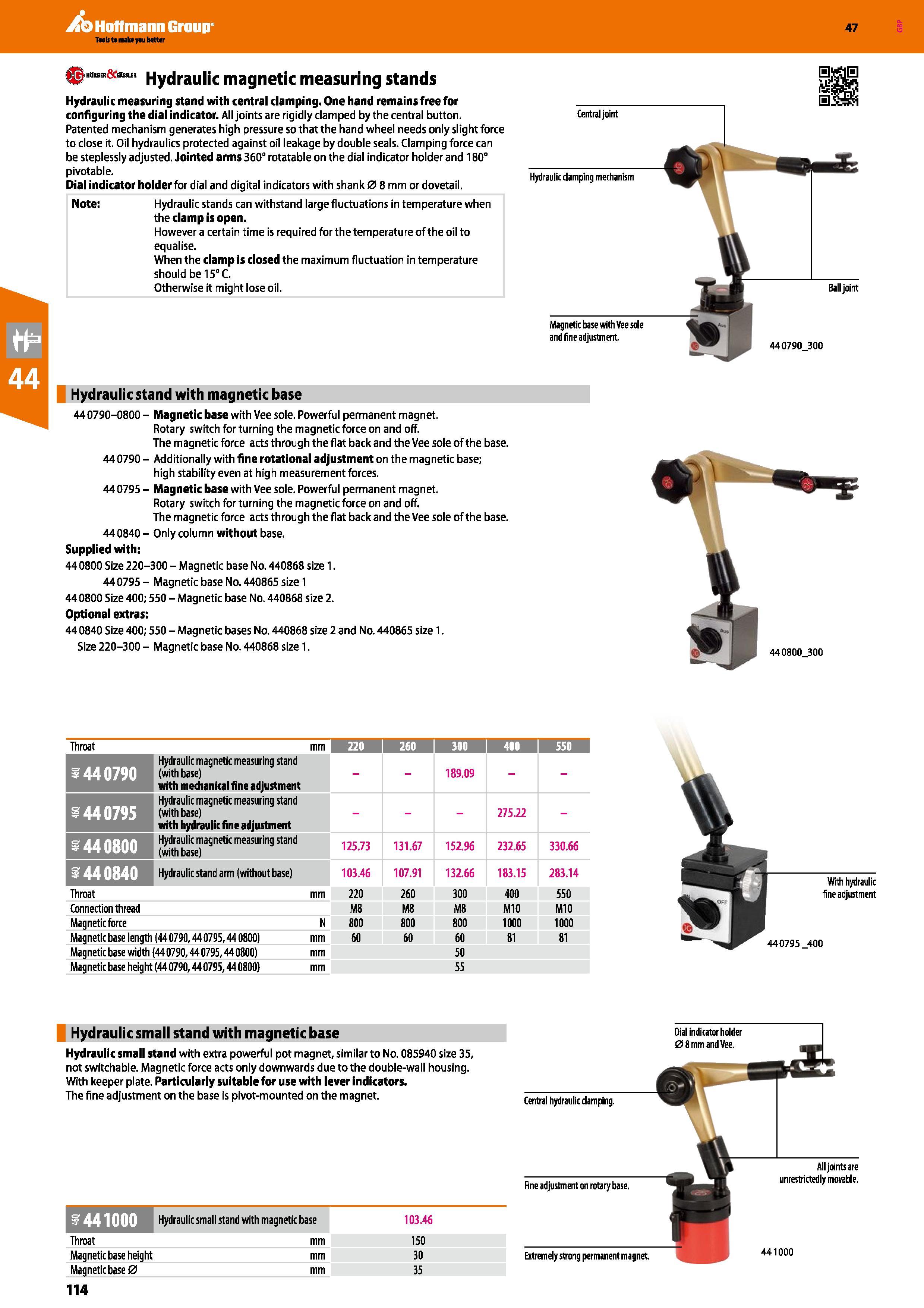

Hoffmann Group 47 I HttRGER ttSSLER Hydraulic magnetic measuring stands Hydraulic measuring stand with central clamping. One hand remains free for configuring the dial indicator. All joints are rigidly clamped by the central button. Patented mechanism generates high pressure so that the hand wheel needs only slight force to close it. Oil hydraulics protected against oil leakage by double seals. Clamping force can be steplessly adjusted. Jointed arms 360° rotatable on the dial indicator holder and 180° pivotable. Dial indicator holder for dial and digital indicators with shank 0 8 mm or dovetail. Note: Hydraulic stands can withstand large fluctuations in temperature when the clamp is open. However a certain time is required for the temperature of the oil to equalise. When the clamp is closed the maximum fluctuation in temperature should be 15°C. Otherwise it might lose oil. Central joint Hydraulic damping mechanism Magnetic base with Vee sole and fine adjustment. Hydraulic stand with magnetic base 440790-0800 - Magnetic base with Vee sole. Powerful permanent magnet. Rotary switch for turning the magnetic force on and off. The magnetic force acts through the flat back and the Vee sole of the base. 440790 - Additionally with fine rotational adjustment on the magnetic base; high stability even at high measurement forces. 44 0795 - Magnetic base with Vee sole. Powerful permanent magnet. Rotary switch for turning the magnetic force on and off. The magnetic force acts through the flat back and the Vee sole of the base. 440840 - Only column without base. Supplied with: 44 0800 Size 220-300 - Magnetic base No. 440868 size 1. 440795 - Magnetic base No. 440865 size 1 44 0800 Size 400; 550 - Magnetic base No. 440868 size 2. Optional extras: 44 0840 Size 400; 550 - Magnetic bases No. 440868 size 2 and No. 440865 size 1. Size 220-300 - Magnetic base No. 440868 size 1. Throat mm 220 i 260 i 300 tTWl 550 44 0790 Hydraulic magnetic measuring stand (with base) with mechanical fine adjustment 189.09 44 0795 Hydraulic magnetic measuring stand (with base) with hydraulic fine adjustment 275.22 - Hydraulic magnetic measuring stand (with base) 125.73 131.67 152.96 232.65 330.66 440840 Hydraulic stand arm (without base) 103.46 107.91 132.66 183.15 283.14 Throat mm 220 260 300 400 550 Connection thread M8 M8 M8 M10 M10 Magnetic force N 800 800 800 1000 1000 Magnetic base length (440790,440795,44 0800) mm 60 60 60 81 81 Magnetic base width (440790,44 0795,44 0800) mm 50 Magnetic base height (440790,440795,440800) mm 55 Hydraulic small stand with magnetic base Hydraulic small stand with extra powerful pot magnet, similar to No. 085940 size 35, not switchable. Magnetic force acts only downwards due to the double-wall housing. With keeper plate. Particularly suitable for use with lever indicators. The fine adjustment on the base is pivot-mounted on the magnet. Hydraulic small stand with magnetic base 103.46 Throat mm 150 Magnetic base height mm 30 Magnetic base 0 mm 35 Central hydraulic clamping. Fine adjustment on rotary base. Extremely strong permanent magnet 441000 114 Ball joint 44 0790_300 440800_300 With hydraulic fiie adjustment 440795 _400
