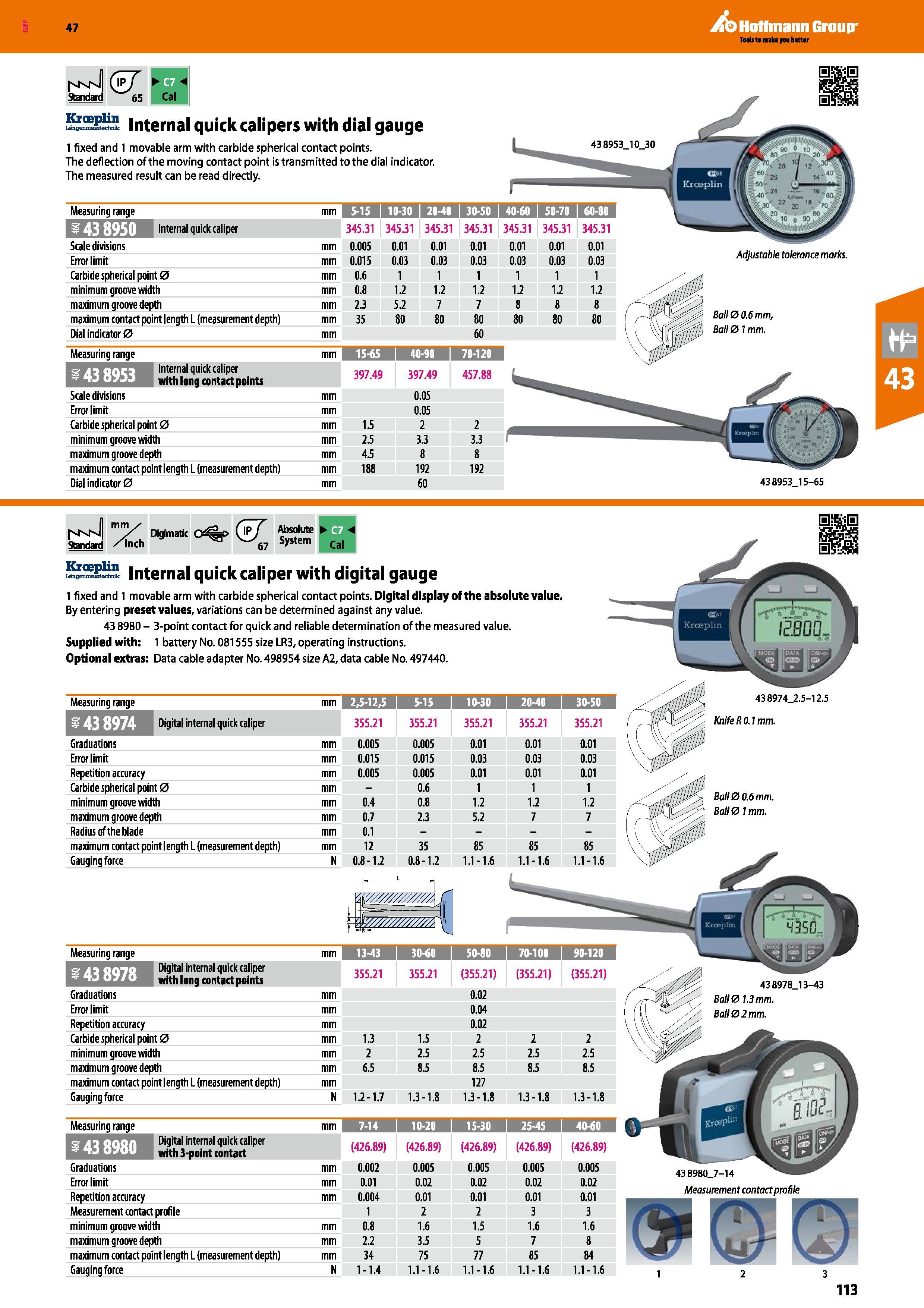

Hoffmann Group 47 MMs (wj Standard 65 Cal Langenme echnik Internal quick calipers with dial gauge 1 fixed and 1 movable arm with carbide spherical contact points. The deflection of the moving contact point is transmitted to the dial indicator. The measured result can be read directly. Measuring range mm 5-15 1 10-30 1 20-40 1 30-50 1 40-60 1 50-70 I 60-80 7tT:L'lTlV Internal ouickcaliDer 345.31 345.31 345.31 345.31 345.31 345.31 345.31 Scale divisions mm 0.005 0.01 0.01 0.01 0.01 0.01 0.01 Error limit mm 0.015 0.03 0.03 0.03 0.03 0.03 0.03 Carbide spherical point 0 mm 0.6 1 1 1 1 1 1 minimum groove width mm 0.8 1.2 1.2 1.2 1.2 1.2 1.2 maximum groove depth mm 2.3 5.2 7 7 8 8 8 maximum contact point length L (measurement depth) mm 35 80 80 80 80 80 80 Dial indicator 0 mm 60 Measuring range mm 15-65 1 40-90 70-120 1 Internal quick caliper with long contact points 397.49 397.49 457.88 Scale divisions mm 0.05 Error limit mm 0.05 Carbide spherical point 0 minimum groove width maximum groove depth mm 1.5 2 2 pm mm L, D 4.5 J.J 8 J.J 8 maximum contact point length L (measurement depth) mm 188 192 192 Dial indicator 0 mm 60 my Standard /Inch Dgmatic c%> (HJ 67 Absolute System H SSSESJiS Internal quick caliper with digital gauge 1 fixed and 1 movable arm with carbide spherical contact points. Digital display of the absolute value. By entering preset values, variations can be determined against any value. 43 8980 - 3-point contact for quick and reliable determination of the measured value. Supplied with: 1 battery No. 081555 size LR3, operating instructions. Optional extras: Data cable adapter No. 498954 size A2, data cable No. 497440. Measuring range mm 2,5-12,5 1 5-15 1 10-30 I 20-40 30-50 Digital internal quick caliper 355.21 355.21 355.21 355.21 355.21 Graduations mm 0.005 0.005 0.01 0.01 0.01 Error limit mm 0.015 0.015 0.03 0.03 0.03 Repetition accuracy mm 0.005 0.005 0.01 0.01 0.01 Carbide spherical point 0 mm - 0.6 1 1 1 minimum groove width mm 0.4 0.8 1.2 1.2 1.2 maximum groove depth mm 0.7 2.3 5.2 7 7 Radius of the blade mm 0.1 - maximum contact point length L (measurement depth) mm 12 35 85 85 85 Gauging force N 0.8-1.2 0.8-1.2 1.1-1.6 1.1-1.6 1.1-1.6 Measuring range mm 13-43 1 30-60 1 50-80 1 70-100 1 90-120 Digital internal quick caliper with long contact points 355.21 355.21 (355.21) (355.21) (355.21) Graduations mm 0.02 Error limit mm 0.04 Repetition accuracy mm 0.02 Carbide spherical point 0 mm 1.3 1.5 2 2 2 minimum groove width mm 2 2.5 2.5 2.5 2.5 maximum groove depth mm 6.5 8.5 8.5 8.5 8.5 maximum contact point length L (measurement depth) mm 127 Gauging force N 1.2-1.7 1.3-1.8 1.3-1.8 1.3-1.8 1.3-1.8 Measuring range mm 7-14 1 10-20 I 15-30 I 25-45 1 40-60 Digital internal quick caliper with 3-point contact (426.89) (426.89) (426.89) (426.89) (426.89) Graduations mm 0.002 0.005 0.005 0.005 0.005 Error limit mm 0.01 0.02 0.02 0.02 0.02 Repetition accuracy mm 0.004 0.01 0.01 0.01 0.01 Measurement contact profile 1 2 2 3 3 minimum groove width mm 0.8 1.6 1.5 1.6 1.6 maximum groove depth mm 2.2 3.5 5 7 8 maximum contact point length L (measurement depth) mm 34 75 77 85 84 Gauging force N 1-1.4 1.1-1.6 1.1-1.6 1.1-1.6 1.1 - 1.6 Adjustable tolerance marks. Ball 0 0.6 mm, Ball 0 1 mm. 438953 15-65 43 8974_2.5-l 2.5 Knife R 0.1 mm. Bull 0 0.6 mm. Ball 01 mm. 43 8978_13-43 Boll 01.3 mm. Ball 02 mm. 438980_7-14 Measurement contact profile
