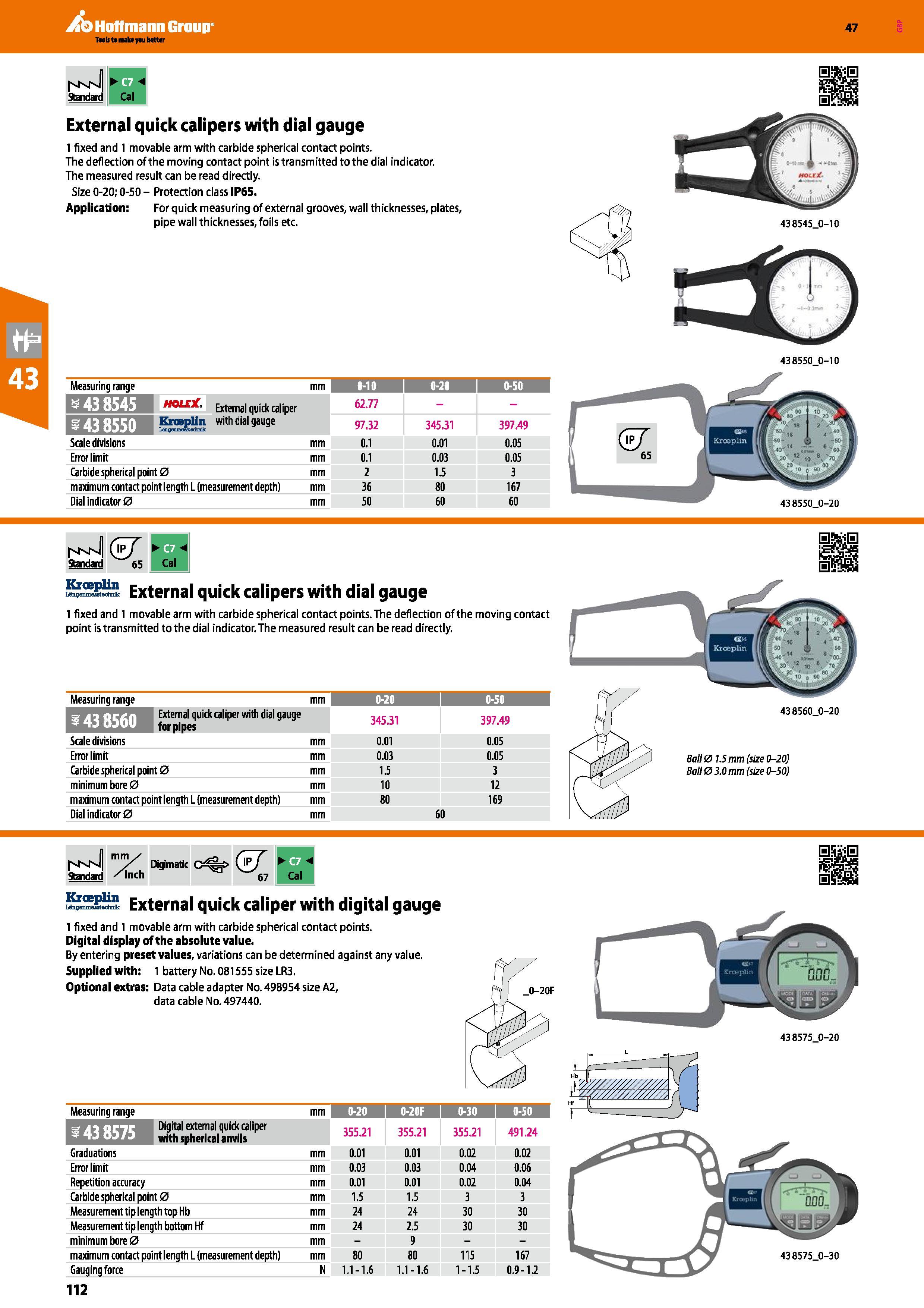

External quick calipers with dial gauge 1 fixed and 1 movable arm with carbide spherical contact points. The deflection of the moving contact point is transmitted to the dial indicator. The measured result can be read directly. Size 0-20; 0-50 - Protection class IP65. Application: For quick measuring of external grooves, wall thicknesses, plates, pipe wall thicknesses, foils etc. 438545JM0 438550_0-10 Measuring range mm 0-10 I 0-20 i 0-50 MOinf. Exjjfpji qUjck caliper 62.77 Kioeplin with dial gauge 97.32 345.31 397.49 Scale divisions mm 0.1 0.01 0.05 Error limit mm 0.1 0.03 0.05 Carbide spherical point 0 mm 2 1.5 3 maximum contact point length L (measurement depth) mm 36 80 167 Dial indicator 0 mm 50 60 60 MMs ( J Standard 65 Cal Lengenmel iihni External quick calipers with dial gauge 1 fixed and 1 movable arm with carbide spherical contact points. The deflection of the moving contact point is transmitted to the dial indicator. The measured result can be read directly. Measuring range mm 0-20 1 0-50 f External quickcaliperwith dial gauge for pipes 345.31 397.49 Scale divisions mm 0.01 0.05 Error limit mm 0.03 0.05 Carbide spherical point 0 mm 1.5 3 minimum bore 0 mm 10 12 maximum contact point length L (measurement depth) mm 80 169 Dial indicator 0 mm 60 i lm7 Standard /Inch Dhjmatic o%> (57 67 Kraeplin Langenmeastechmk External quick caliper with digital gauge 1 fixed and 1 movable arm with carbide spherical contact points. Digital display of the absolute value. By entering preset values, variations can be determined against any value. Supplied with: 1 battery No. 081555 size LR3. Optional extras: Data cable adapter No. 498954 size A2, data cable No. 497440. Measuring range mm 0-20 I 0-20F 0-30 i 0-50 Digital external quick caliper with spherical anvils 355.21 355.21 355.21 491.24 Graduations mm 0.01 0.01 0.02 0.02 Error limit mm 0.03 0.03 0.04 0.06 Repetition accuracy mm 0.01 0.01 0.02 0.04 Carbide spherical point 0 mm 1.5 1.5 3 3 Measurement tip length top Hb mm 24 24 30 30 Measurement tip length bottom Hf mm 24 2.5 30 30 minimum bore 0 mm - 9 maximum contact point length L (measurement depth) mm 80 80 115 167 Gauging force N 1.1 -1.6 1.1-1.6 1-1.5 0.9-1.2 438575 0-20 43 8575_0-30 112 43 8560_0-20 Ball 01.5 mm (size 0-20) Ball 03.0 mm (size 0-50)
