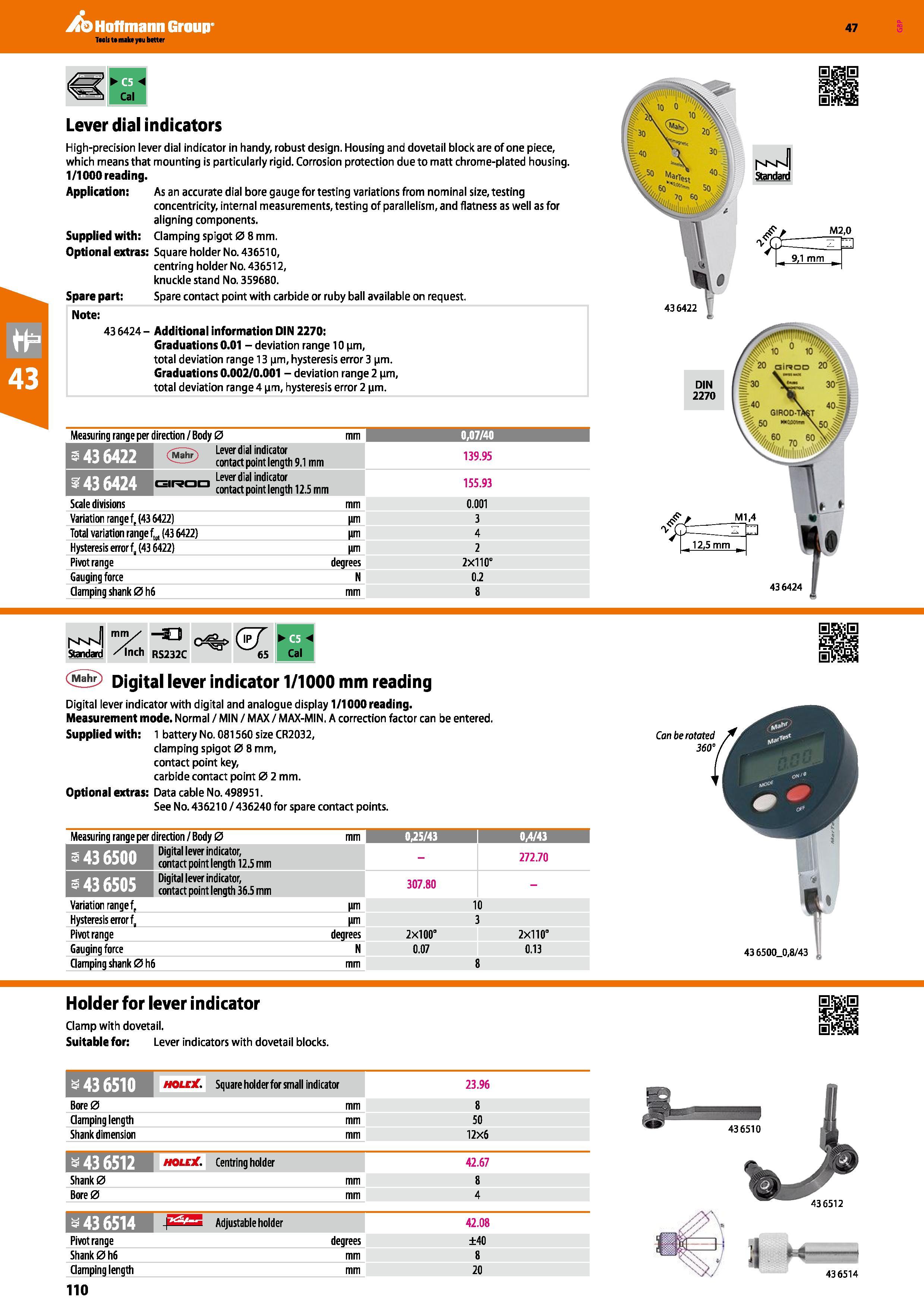

Hoffmann Group Lever dial indicators High-precision lever dial indicator in handy, robust design. Housing and dovetail block are of one piece, which means that mounting is particularly rigid. Corrosion protection due to matt chrome-plated housing. 1/1000 reading. Application: As an accurate dial bore gauge for testing variations from nominal size, testing concentricity, internal measurements, testing of parallelism, and flatness as well as for aligning components. Supplied with: Clamping spigot 0 8 mm. Optional extras: Square holder No. 436510, centring holder No. 436512, knuckle stand No. 359680. Spare part: Spare contact point with carbide or ruby ball available on request. Note: 43 6424 - Additional information DIN 2270: Graduations 0.01 - deviation range 10 (am, total deviation range 13 (jm, hysteresis error 3 jm. Graduations 0.002/0.001 - deviation range 2 (am, total deviation range 4 jm, hysteresis error 2 jim. Measuring range per direction / Body 0 Lever dial indicator contact point length 9.1 mm 139.95 43 6424 Lever dial indicator contact point length 12.5 mm 155.93 Scale divisions mm 0.001 Variation range f, (43 6422) im 3 Total variation range fm (43 6422) im 4 Hysteresis error fu (43 6422) im 2 Pivot range degrees 2X110° Gauging force N 0.2 Clamping shank 0 h6 mm 8 Standard /Inch RS232C Digital lever indicator 1/1000 mm reading Digital lever indicator with digital and analogue display 1/1000 reading. Measurement mode. Normal / MIN / MAX / MAX-MIN. A correction factor can be entered. Supplied with: 1 battery No. 081560 size CR2032, clamping spigot 0 8 mm, contact point key, carbide contact point 0 2 mm. Optional extras: Data cable No. 498951. See No. 436210 / 436240 for spare contact points. Measuring range per direction / Body 0 mm 0,25/43 1 0/4/43 Digital lever indicator, 1 contact point length 12 j mm - 272.70 BfmrrS Digital lever indicator, contact point length 36J mm 307.80 - Variation rangef, im 10 Hysteresis error fB im 3 Pivot range degrees 2x100° 2X110° Gauging force N 0.07 0.13 Clamping shank 0h6 mm 8 T 43 6500_0,8/43 Holder for lever indicator Clamp with dovetail. Suitable for: Lever indicators with dovetail blocks. s 43 6510 HOLE3C. Square holder for small indicator 23.96 Bore0 mm 8 Clamping length mm 50 Shank dimension mm 12x6 s 43 6512 HQLEjC. Centring holder 42.67 Shank 0 mm 8 Bore0 mm 4 Adjustable holder Pivot range Shank 0h6 Clamping length 110 degrees mm 42.08 ±40 8 20 DIN 2270 9.1 mm vmJ Standard Taals to malnyau better 436512 j 436514
