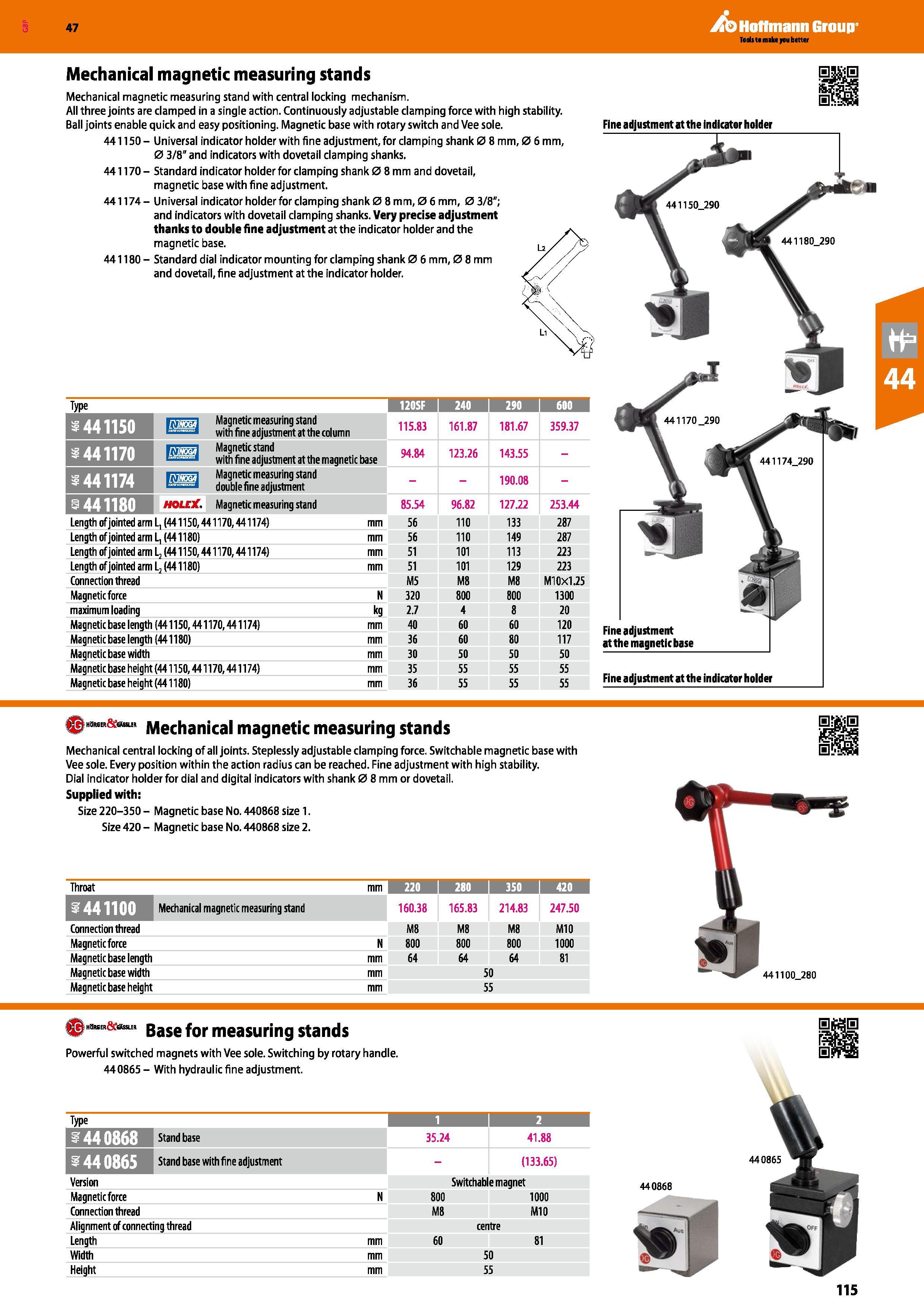

Hoffmann Group 47 Mechanical magnetic measuring stands Mechanical magnetic measuring stand with central locking mechanism. All three joints are clamped in a single action. Continuously adjustable clamping force with high stability. Ball joints enable quick and easy positioning. Magnetic base with rotary switch and Vee sole. 441150 - Universal indicator holder with fine adjustment, for clamping shank 0 8 mm, 0 6 mm 0 3/8" and indicators with dovetail clamping shanks. 441170 - Standard indicator holder for clamping shank 0 8 mm and dovetail, magnetic base with fine adjustment. 441174- Universal indicator holder for clamping shank 0 8 mm, 0 6 mm, 0 3/8"; and indicators with dovetail clamping shanks. Very precise adjustment thanks to double fine adjustment at the indicator holder and the magnetic base. 441180- Standard dial indicator mounting for clamping shank 0 6 mm, 0 8 mm and dovetail, fine adjustment at the indicator holder. Type I 120SF 240 i 290 im 441150 Magnetic measuring stand ''r'T: with fine adjustment at the column 115.83 161.87 181.67 359.37 441170 I iifciH Magnetic stand with fine adjustment at the magnetic base 94.84 123.26 143.55 - 441174 lifaH Magnetic measuring stand "imm'ii double fine adjustment 190.08 - 441180 HOLCX. Magnetic measuring stand 85.54 96.82 127.22 253.44 Length of jointed arm L, (441150,441170,441174) mm 56 110 133 287 Length of jointed arm L, (441180) mm 56 110 149 287 Length of jointed arm L2 (441150,441170,441174) mm 51 101 113 223 Length of jointed arm L, (441180) mm 51 101 129 223 Connection thread M5 M8 M8 Ml 0x1.25 Magnetic force N 320 800 800 1300 maximum loading kg 2.7 4 8 20 Magnetic base length (441150,441170,441174) mm 40 60 60 120 Magnetic base length (441180) mm 36 60 80 117 Magnetic base width mm 30 50 50 50 Magnetic base height (441150,441170,441174) mm 35 55 55 55 Magnetic base height (441180) mm 36 55 55 55 Fine adjustment at the indicator holder I H9ReER& XHLEn Mechanical magnetic measuring stands Mechanical central locking of all joints. Steplessly adjustable clamping force. Switchable magnetic base with Vee sole. Every position within the action radius can be reached. Fine adjustment with high stability. Dial indicator holder for dial and digital indicators with shank 0 8 mm or dovetail. Supplied with: Size 220-350 - Magnetic base No. 440868 size 1. Size 420 - Magnetic base No. 440868 size 2. Throat mm 220 IKHI 350 I 420 rri r Mechanical magnetic measuring stand 160.38 165.83 214.83 247.50 Connection thread M8 M8 M8 M10 Magnetic force N 800 800 800 1000 Magnetic base length mm 64 64 64 81 Magnetic base width mm 50 Magnetic base height mm 55 Base for measuring stands Powerful switched magnets with Vee sole. Switching by rotary handle. 440865 - With hydraulic fine adjustment. Type 1 1 2 1440868 Stand base 35.24 41.88 44 0865 Stand base with fi ne adjustment - (133.65) Version Switchable magnet Magnetic force N 800 1000 Connection thread M8 M10 Alignment of connecting thread centre Length mm 60 81 Width mm 50 Height 440868 55 115 Fine adjustment at the indicator holder 441150_290 441180 290 441170 290 441 174 290 Fine adjustment at the magnetic base 440865
