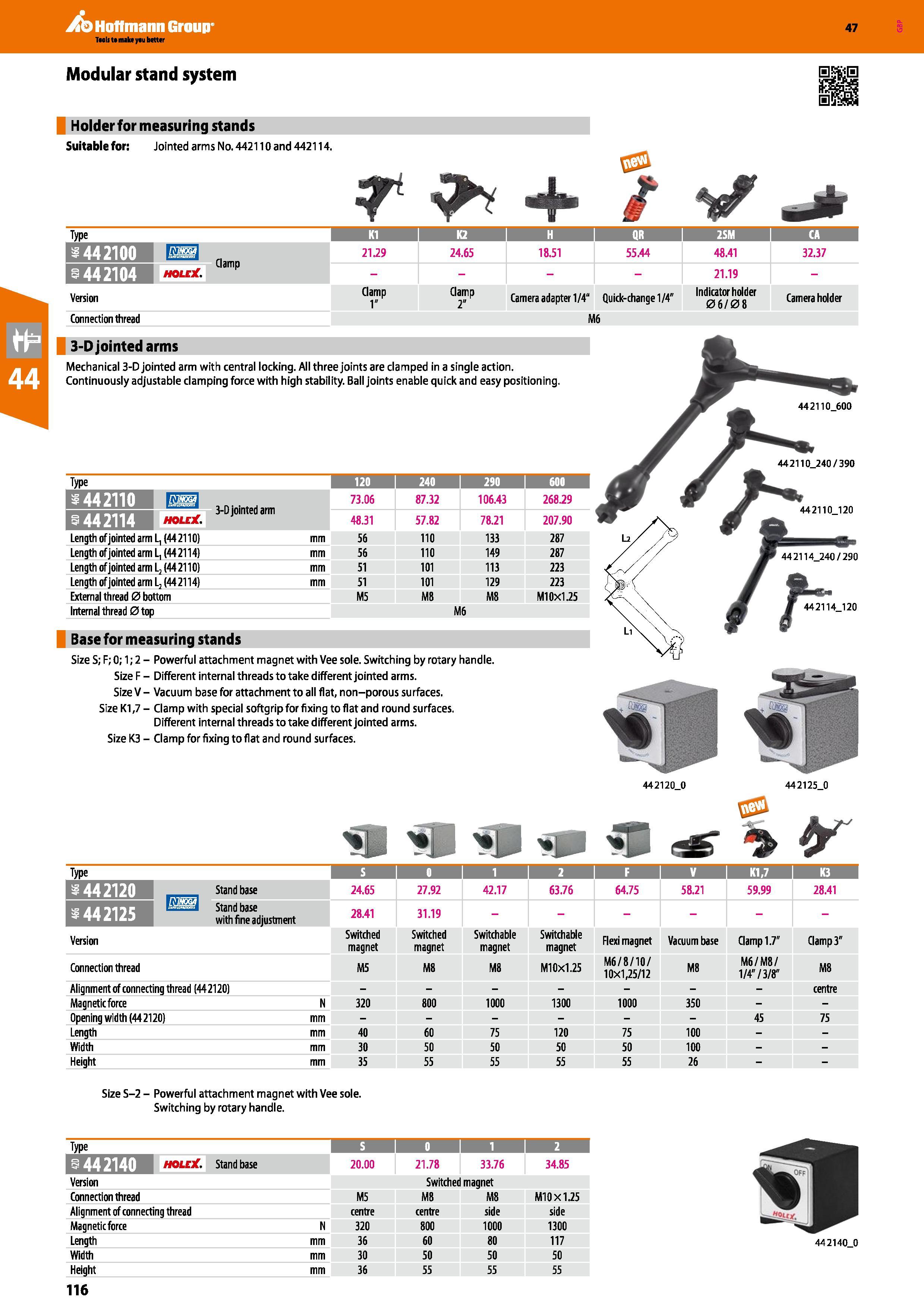

Hoffmann Group 47 Modular stand system Holder for measuring stands Suitable for: Jointed arms No. 442110 and 442114. Type K1 1 K2 I H QR 2SM I CA 442100 holbC. 21.29 24.65 18.51 55.44 48.41 32.37 442104 - 21.19 - Version Clamp 1" Clamp 2" Camera adapter 1/4“ Quick-change 1/4" Indicator holder 06/08 Camera holder Connection thread M6 3-D jointed arms Mechanical 3-D jointed arm witli central locking. All three joints are clamped in a single action. Continuously adjustable clamping force with high stability. Ball joints enable quick and easy positioning. Type 120 1 240 290 : 600 1 442110 JOB 73.06 87.32 106.43 268.29 442114 EE3 48.31 57.82 78.21 207.90 Length of jointed arm L, (442110) mm 56 110 133 287 Length of jointed arm L, (442114) mm 56 110 149 287 Length of jointed arm L2 (442110) mm 51 101 113 223 Length of jointed arm L2 (442114) mm 51 101 129 223 External thread 0 bottom M5 M8 M8 M10x1.25 Internal thread 0 top M6 Base for measuring stands Size S; F; 0; 1; 2 - Powerful attachment magnet with Vee sole. Switching by rotary handle. Size F - Different internal threads to take different jointed arms. SizeV- Vacuum base for attachment to all flat, non-porous surfaces. Size K1,7 - Clamp with special softgrip for fixing to flat and round surfaces. Different internal threads to take different jointed arms. Size K3 - Clamp for fixing to flat and round surfaces. 14_l20 442120_0 m m & & Type 1 S 1 2 F v j K1,7 I K3 s 442120 24.65 27.92 42.17 63.76 64.75 58.21 59.99 28.41 PffRTB EIliJ Stand base with fine adjustment 28.41 31.19 Version Switched magnet Switched magnet Switchable magnet Switchable magnet Flexi magnet Vacuum base Clamp 1.7" Clamp 3" Connection thread M5 M8 M8 M10X1.25 M6/8/10/ 10x1,25/12 M8 M6/M8/ 1/4'/3/ M8 Alignment of connecting thread (442120) - centre Magnetic force N 320 800 1000 1300 1000 350 Opening width (442120) mm 45 75 Length mm 40 60 75 120 75 100 Width mm 30 50 50 50 50 100 Height mm 35 55 55 55 55 26 Size S-2 - Powerful attachment magnet with Vee sole. Switching by rotary handle. Type 1 S 1 0 1 1 2 442140 OS 20.00 21.78 33.76 34.85 Version Switched magnet Connection thread M5 M8 M8 MIOxl.25 Alignment of connecting thread centre centre side side Magnetic force N 320 800 1000 1300 Length mm 36 60 80 117 Width mm 30 50 50 50 Height mm 36 55 55 55 442140_0 442125_0 116
