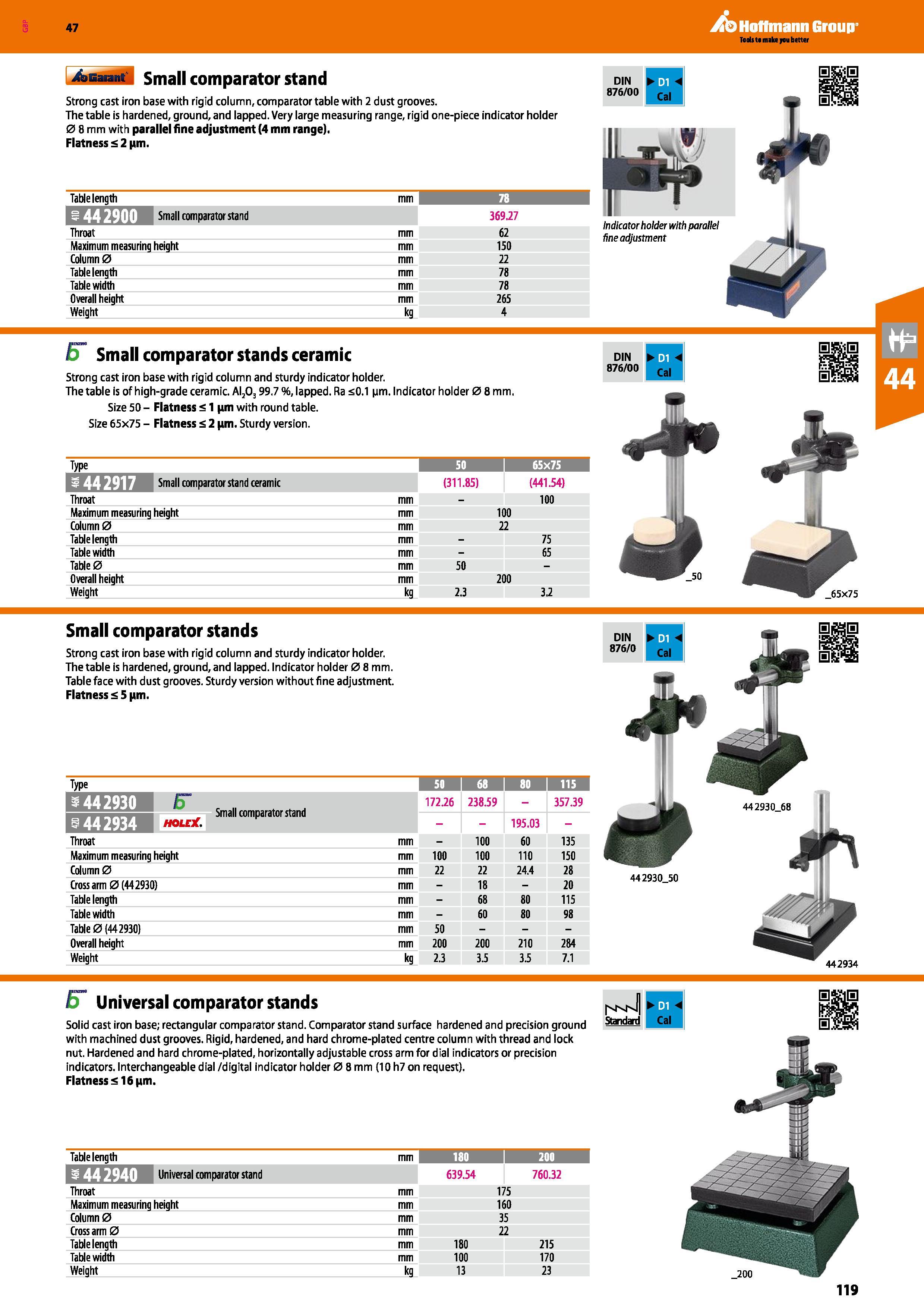

Hoffmann Group 47 Small comparator stand Strong cast iron base with rigid column, comparator table with 2 dust grooves. The table is hardened, ground, and lapped. Very large measuring range, rigid one-piece indicator holder 0 8 mm with parallel fine adjustment (4 mm range). Flatness 2 pm. DIN 876/00 Table length mm 78 I 11 H'llM Small comparator stand 369.27 Throat mm 62 Maximum measuring height mm 150 Column 0 mm 22 Table length mm 78 Table width mm 78 Overall height mm 265 Weight kg 4 Indicator holder with parallel fine adjustment £T Small comparator stands ceramic Strong cast iron base with rigid column and sturdy indicator holder. The table is of high-grade ceramic. Al203 99.7 %, lapped. Ra <0.1 pm. Indicator holder 0 8 mm. Size SO - Flatness < 1 pm with round table. Size 65x75 - Flatness 2 pm. Sturdy version. 876/00 Type 1 50 I 65x75 f H’l Small comrurator stand ceramic (311.85) (441.54) Throat mm - 100 Maximum measuring height mm 100 Column 0 mm 22 Table length mm - 75 Table width mm - 65 Table 0 mm 50 - Overall height mm 200 Weight kg 2.3 3.2 Small comparator stands Strong cast iron base with rigid column and sturdy indicator holder. The table is hardened, ground, and lapped. Indicator holder 0 8 mm. Table face with dust grooves. Sturdy version without fine adjustment. Flatness 5 pm. Type 1 50 68 mm 115 44 2930 172.26 238.59 - 357.39 taZLWJCtl hole . 195.03 - Throat mm - 100 60 135 Maximum measuring height mm 100 100 110 150 Column 0 mm 22 22 24.4 28 Cross arm 0(442930) mm - 18 - 20 Table length mm - 68 80 115 Table width mm - 60 80 98 Table 0(442930) mm 50 Overall height mm 200 200 210 284 Weight kg 2.3 3.5 3.5 7.1 £T Universal comparator stands Solid cast iron base; rectangular comparator stand. Comparator stand surface hardened and precision ground with machined dust grooves. Rigid, hardened, and hard chrome-plated centre column with thread and lock nut. Hardened and hard chrome-plated, horizontally adjustable cross arm for dial indicators or precision indicators. Interchangeable dial /digital indicator holder 0 8 mm (10 h7 on request). Flatness 516 pm. Table length mm 180 I 200 i ErT&rB Universal comparator stand 639.54 760.32 Throat mm 175 Maximum measuring height mm 160 Column 0 mm 35 Cross arm 0 mm 22 Table length mm 180 215 Table width mm 100 170 Weight kg 13 23 442930_50 442930_68 119
