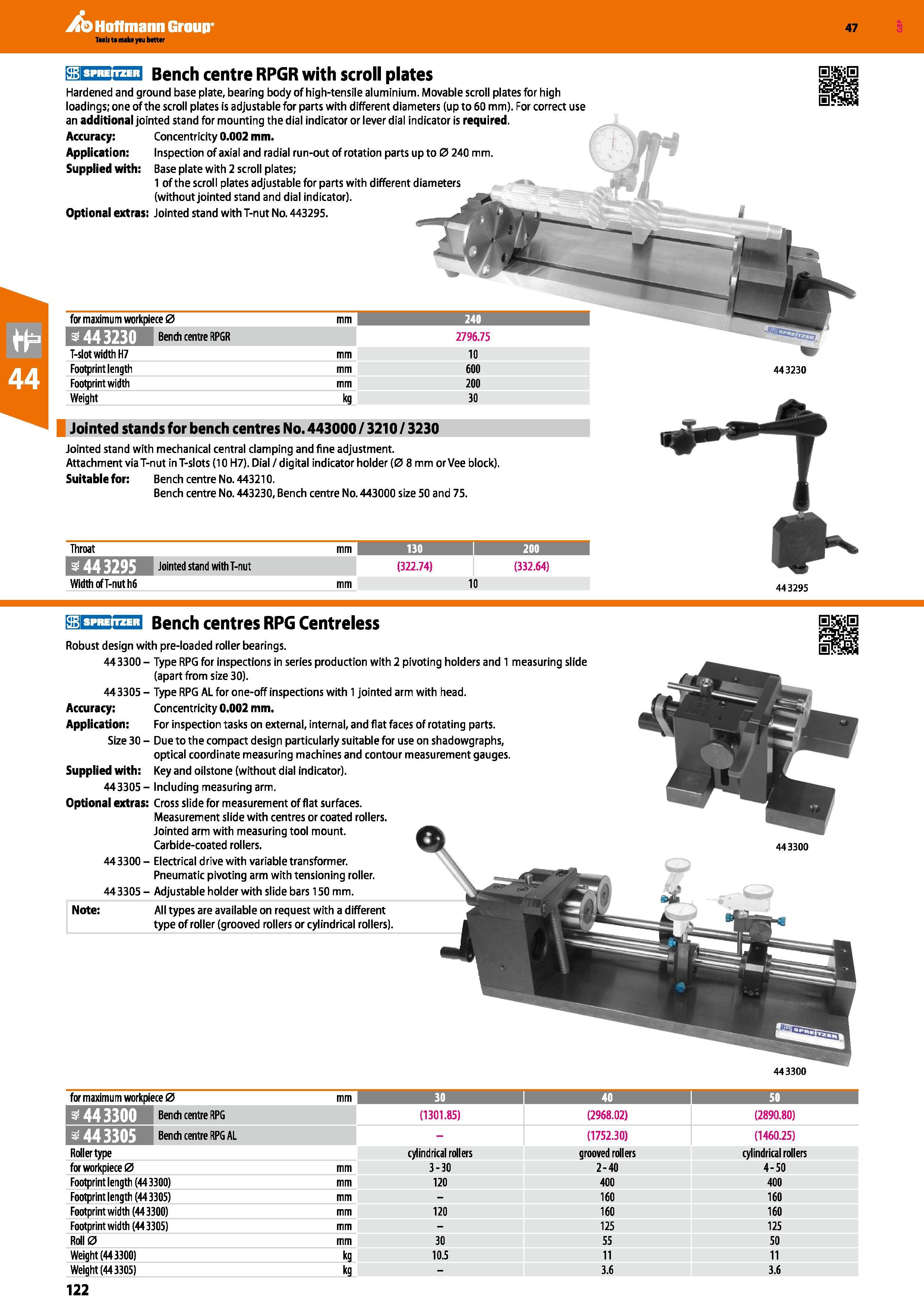

Hoffmann Group s 44 3230 44 3295 443230 443295 Eifr-uin-r-Mii Bench centre RPGR with scroll plates Hardened and ground base plate, bearing body of high-tensile aluminium. Movable scroll plates for high loadings; one of the scroll plates is adjustable for parts with different diameters (up to 60 mm). For correct use an additional jointed stand for mounting the dial indicator or lever dial indicator is required. Accuracy: Concentricity 0.002 mm. Application: Inspection of axial and radial run-out of rotation parts up to 0 240 mm. Supplied with: Base plate with 2 scroll plates; 1 of the scroll plates adjustable for parts with different diameters (without jointed stand and dial indicator). Optional extras: Jointed stand with T-nut No. 443295. Jointed stands for bench centres No. 443000 / 3210 / 3230 Jointed stand with mechanical central clamping and fine adjustment. Attachment via T-nut inT-slots (10 H7). Dial/digital indicator holder (0 8 mm or Vee block). Suitable for: Bench centre No. 443210. Bench centre No. 443230, Bench centre No. 443000 size 50 and 75. Jointed stand with T-nut (322.74) (332.64) Width of T-nut h6 mm 10 for maximum workpiece 0 Bench centre RPGR T-slot width H7 Footprint length Footprint width Weight 2796.75 10 600 200 30 443300 Eifr-uin-r-Mii Bench centres RPG Centreless Robust design with pre-loaded roller bearings. 443300 - Type RPG for inspections in series production with 2 pivoting holders and 1 measuring slide (apart from size 30). 443305 - Type RPG AL for one-off inspections with 1 jointed arm with head. Accuracy: Concentricity 0.002 mm. Application: For inspection tasks on external, internal, and flat faces of rotating parts. Size 30 - Due to the compact design particularly suitable for use on shadowgraphs, optical coordinate measuring machines and contour measurement gauges. Supplied with: Key and oilstone (without dial indicator). 443305 - Including measuring arm. Optional extras: Cross slide for measurement of flat surfaces. Measurement slide with centres or coated rollers. Jointed arm with measuring tool mount. Carbide-coated rollers. 443300 - Electrical drive with variable transformer. Pneumatic pivoting arm with tensioning roller. 443305 - Adjustable holder with slide bars 150 mm. Note: All types are available on request with a different type of roller (grooved rollers or cylindrical rollers). 443300 for maximum workpiece 0 mm 30 40 I so 443300 (1301.85) (2968.02) (2890.80) -443305 - (1752.30) (1460.25) Roller type cylindrical rollers grooved rollers cylindrical rollers for workpiece 0 mm 3-30 2-40 4-50 Footprint length (443300) mm 120 400 400 Footprint length (443305) mm - 160 160 Footprint width (443300) mm 120 160 160 Footprint width (443305) mm - 125 125 Roll 0 mm 30 55 50 Weight (443300) kg 10.5 11 11 Weight (443305) kg - 3.6 3.6
