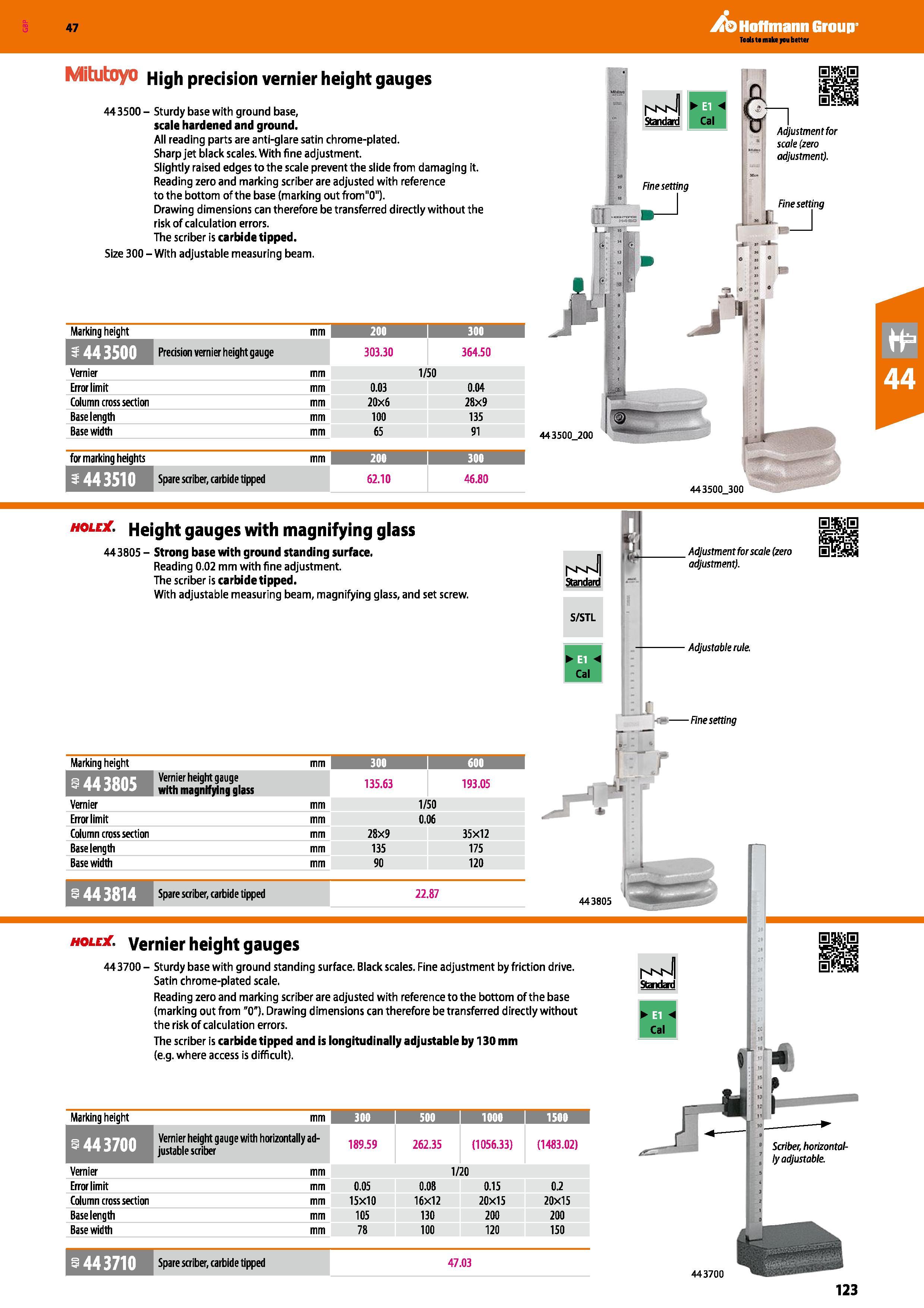

47 Mitutoyo High precision vernier height gauges 443500 - Sturdy base with ground base, scale hardened and ground. All reading parts are anti-glare satin chrome-plated. Sharp jet black scales. With fine adjustment. Slightly raised edges to the scale prevent the slide from damaging it. Reading zero and marking scriber are adjusted with reference to the bottom of the base (marking out from"0"). Drawing dimensions can therefore be transferred directly without the risk of calculation errors. The scriber is carbide tipped. Size 300 - With adjustable measuring beam. Marking height mm 200 1 300 EEJcMjTM Precision vernier height gauge 303.30 364.50 Vernier mm 1/50 Error limit mm 0.03 0.04 Column cross section mm 20x6 28x9 Base length mm 100 135 Base width mm 65 91 VN J Standard As) Hoffmann Group Tads ta make you better Cl- IJP < Fine setting , i r ‘ 443500_200 for marking heights mm 200 300 I Spare scriber, carbide tipped 62.10 46.80 hole . Height gauges with magnifying glass 443805 - Strong base with ground standing surface. Reading 0.02 mm with fine adjustment. The scriber is carbide tipped. With adjustable measuring beam, magnifying glass, and set screw. vmJ Standard S/STL Adjustment for JJ scale (zero adjustment). Fine setting Lt j 443500 300 n\ Adjustment for scale (zero SSaB adjustment). < Cal - Adjustable rule. Finesetting Marking height mm 300 I 600 I Vernier height gauge with magnifying glass 135.63 193.05 Vernier mm 1/50 Error limit mm 0.06 Column cross section mm 28x9 35x12 Base length mm 135 175 Base width mm 90 120 443814 Spare scriber, carbide tipped 22.87 hole , vernier height gauges KT 443805 443700 - Sturdy base with ground standing surface. Black scales. Fine adjustment by friction drive. Satin chrome-plated scale. Reading zero and marking scriber are adjusted with reference to the bottom of the base (marking out from "0”). Drawing dimensions can therefore be transferred directly without the risk of calculation errors. The scriber is carbide tipped and is longitudinally adjustable by 130 mm (e.g. where access is difficult). Marking height mm 300 500 1000 j 1500 I 443700 Vernier height gauge with horizontally adjustable scriber 189.59 262.35 (1056.33) (1483.02) Vernier mm 1/20 Error limit mm 0.05 0.08 0.15 0.2 Column cross section mm 15x10 16x12 20x15 20x15 Base length mm 105 130 200 200 Base width mm 78 100 120 150 443710 hNtJ Standard Spare scriber, carbide tipped 47.03 s Scriber, horizontal- ly adjustable. 443700
