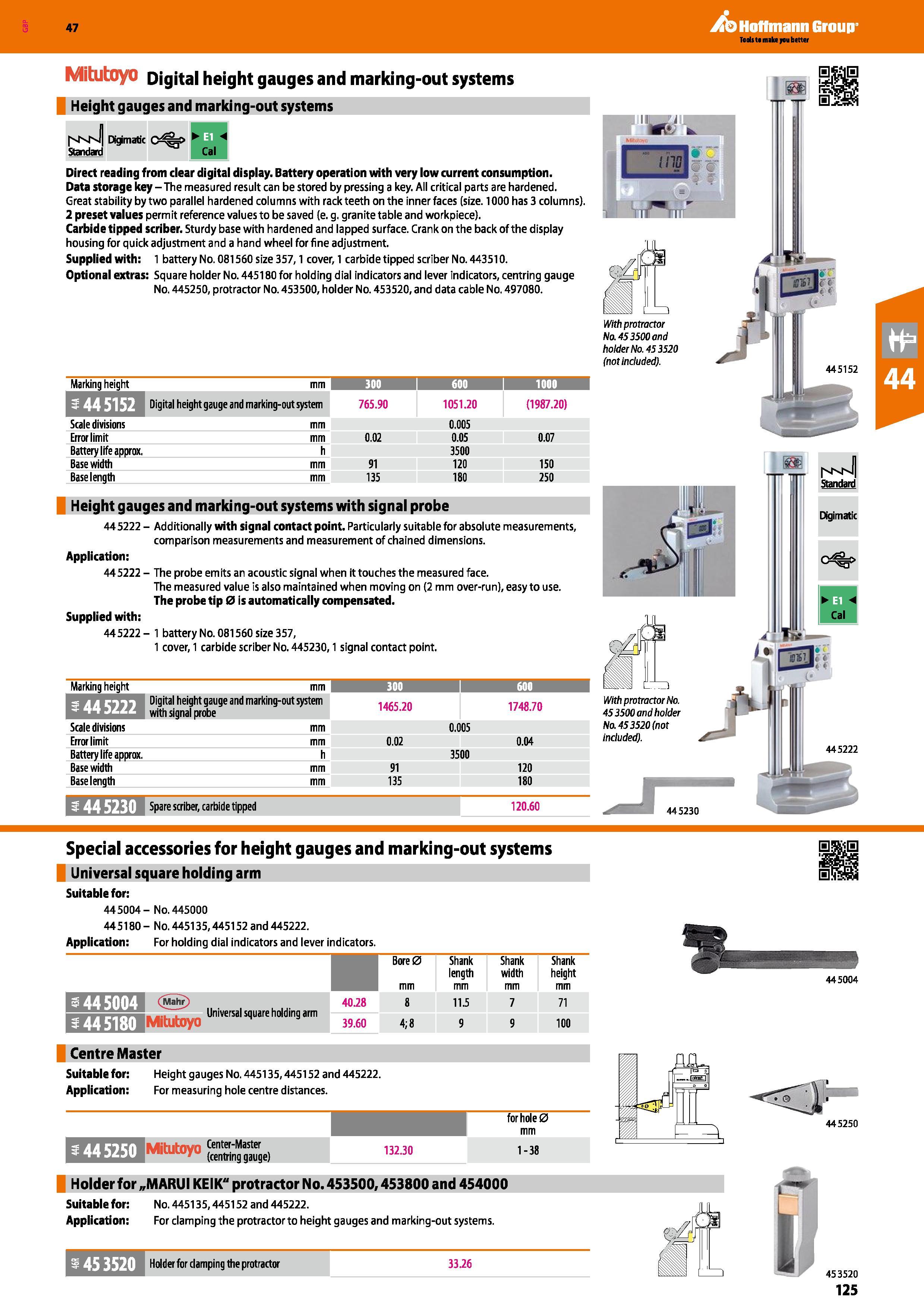

Hoffmann Group 47 Mitutoyo Digital height gauges and marking-out systems Height gauges and marking-out systems Dq i idbc Cal Direct reading from clear digital display. Battery operation with very low current consumption. Data storage key - The measured result can be stored by pressing a key. All critical parts are hardened. Great stability by two parallel hardened columns with rack teeth on the inner faces (size. 1000 has 3 columns). 2 preset values permit reference values to be saved (e. g. granite table and workpiece). Carbide tipped scriber. Sturdy base with hardened and lapped surface. Crank on the back of the display housing for quick adjustment and a hand wheel for fine adjustment. Supplied with: 1 battery No. 081560 size 357,1 cover, 1 carbide tipped scriber No. 443510. Optional extras: Square holder No. 445180 for holding dial indicators and lever indicators, centring gauge No. 445250, protractor No. 453500, holder No. 453520, and data cable No. 497080. I'vNlJI Standard Marking height mm 300 600 iooo f UiiiJ Digital height gauge and marking-out system 765.90 1051.20 (1987.20) Scale divisions mm 0.005 Error limit mm 0.02 0.05 0.07 Battery life approx, h 3500 Basewidth mm 91 120 150 Baselength mm 135 180 250 Height gauges and marking-out systems with signal probe 445222 - Additionally with signal contact point. Particularly suitable for absolute measurements, comparison measurements and measurement of chained dimensions. Application: 445222 - The probe emits an acoustic signal when it touches the measured face. The measured value is also maintained when moving on (2 mm over-run), easy to use. The probe tip 0 is automatically compensated. Supplied with: 445222- 1 battery No. 081560 size 357, 1 cover, 1 carbide scriber No. 445230,1 signal contact point. Marking height mm 300 1 600 Digital height gauge and marking-out system with signal probe 1465.20 1748.70 Scale divisions mm 0.005 Error limit mm 0.02 0.04 Battery life approx. h 3500 Basewidth mm 91 120 Baselength mm 135 180 i 44 5230 Spare scriber, carbide tipped 120.60 Special accessories for height gauges and marking-out systems Universal square holding arm Suitable for: 445004- No. 445000 445180 - No. 445135,445152 and 445222. Application: For holding dial indicators and lever indicators. Bore0 mm Shank length mm Shank width mm Shank height mm EELV-HII 40.28 8 11.5 7 71 3 44 5180 UINVCI30I uoic iiuiuiiiy ami 39.60 4; 8 9 9 100 Centre Master Suitable for: Height gauges No. 445135,445152 and 445222. Application: For measuring hole centre distances. for hole 0 mm 3 445250 Center-Master 111 (centring gauge) 132.30 1-38 Holder for „MARUI KEIK" protractor No. 453500,453800 and 454000 Suitable for: No. 445135,445152 and 445222. Application: For clamping the protractor to height gauges and marking-out systems. H Holder for clamping the protractor 33.26 445004 I " 453520 125
