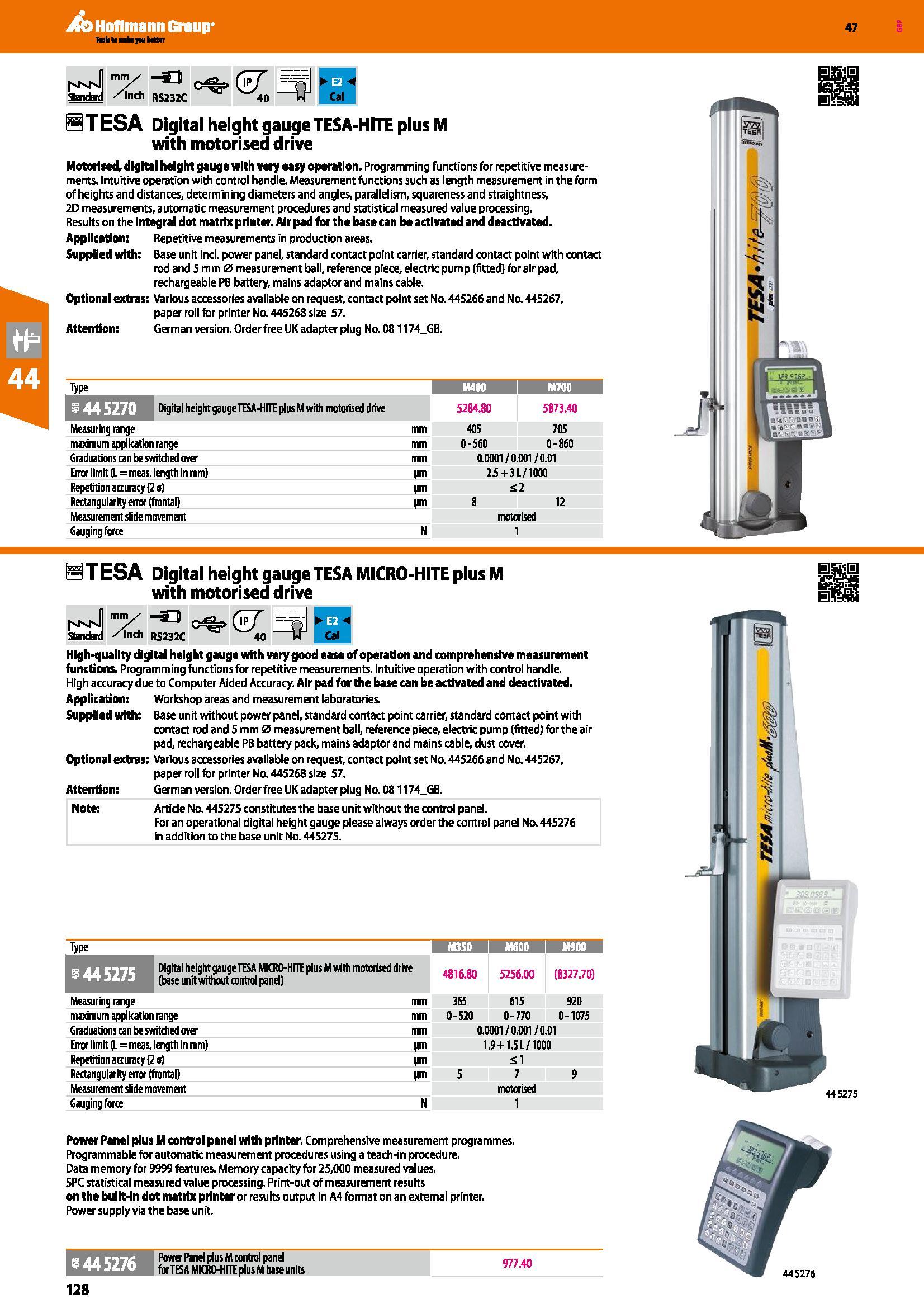

m JI y c%> & Sfendad /Inch RS232C ST ESA Digital height gauge TESA-HITE plus M with motorised drive Motorised, digital height gauge with very easy operation. Programming functions for repetitive measurements. Intuitive operation with control handle. Measurement functions such as length measurement in the form of heights and distances, determining diameters and angles, parallelism, squareness and straightness, 2D measurements, automatic measurement procedures and statistical measured value processing. Results on the Integral dot matrix printer. Air pad lor the base can be activated and deactivated. Application: Repetitive measurements in production areas. Supplied with: Base unit incl. power panel, standard contact point carrier, standard contact point with contact rod and 5 mm 0 measurement ball, reference piece, electric pump (fitted) for air pad, rechargeable PB battery, mains adaptor and mains cable. Optional extras: Various accessories available on request, contact point set No. 445266 and No. 445267, paper roll for printer No. 445268 size 57. Attention: German version. Order free UK adapter plug No. 081174_G B. Type FT tr 7lH Digital height gauge TESA-HITE plus M with motorised drive 5284.80 5873.40 Measuring range mm 405 705 maximum application range mm 0-560 0-860 Graduations an be switched over mm 0.0001/0.001/0.01 Error limit (L=meas. length in mm) pm 2.5 + 3 L/1000 Repetition accuracy (2 o) pm £2 Rectangularity error (frontal) pm 8 12 Measurement slide movement motorised Gauging force N 1 ITESA Digital height gauge TESA MICRO-HITE plus M with motorised drive O Cal Standard /Inch RS232C High-quality digital height gauge with very good ease of operation and comprehensive measurement functions. Programming functions for repetitive measurements. Intuitive operation with control handle. High accuracy due to Computer Aided Accuracy. Air pad for the base can be activated and deactivated. Application: Workshop areas and measurement laboratories. Supplied with: Base un it without power panel, standard contact point carrier, standard contact point with contact rod and 5 mm 0 measurement ball, reference piece, electric pump (fitted) for the air pad, rechargeable PB battery pack, mains adaptor and mains cable, dust cover. Optional extras: Various accessories available on request, contact point set No. 445266 and No. 445267, paper roll for printer No. 445268 size 57. Attention: German version. Order free UK adapter plug No. 081174_GB. Article No. 445275 constitutes the base unit without the control panel. For an operational digital height gauge please always order the control panel No. 445276 in addition to the base unit No. 445275. Type 4m80 5256-00 (8327-7 Measuring range mm 365 615 920 mm A Clfl n_77fl fl. IffK maximum application range Graduations can be switched over mm uozu U-//U u- iu/j mm 0.0001/0.001/0.01 Emir limit (L=meas, length in mm) pm 1.9+1.5 L/1000 Repetition accuracy (2 o) pm s1 Rectangularity error (frontal) pm 5 7 9 Measurement slide movement motorised Gauging force N 1 445275 Power Panel plus M control panel with printer. Comprehensive measurement programmes. Programmable for automatic measurement procedures using a teach-in procedure. Data memory for 9999 features. Memory capacity for 25,000 measured values. SPC statistical measured value processing. Print-out of measurement results on the built-in dot matrix printer or results output In A4 format on an external printer. Power supply via the base unit. 445276 128 Power Panel plus M control panel for TESA MICRO-HUE plusM base units 977.40 445276
