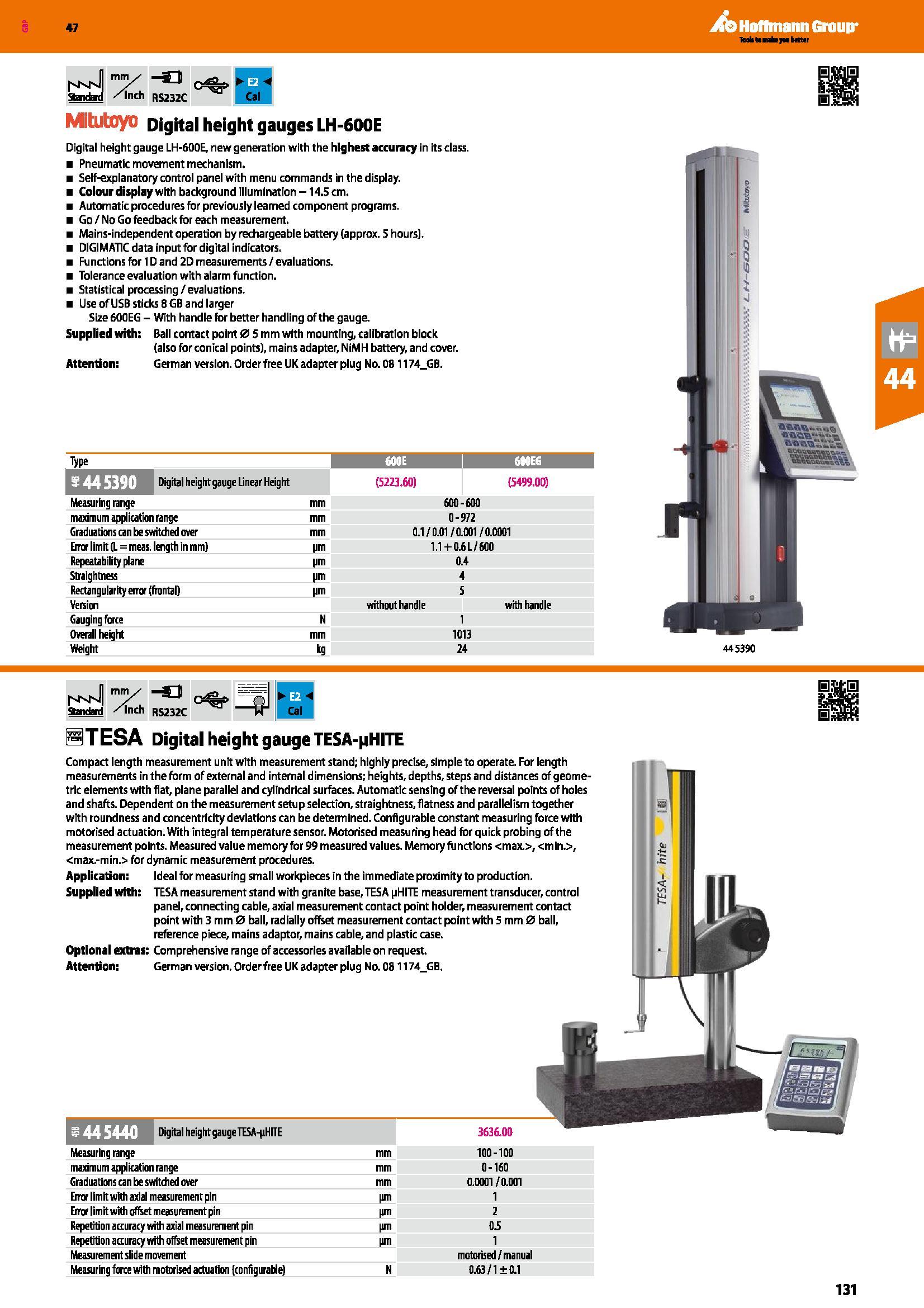

Cal mm/ -S3 Sfendad /inch RS232C Mitutoyo Digital height gauges LH-600E Digital height gauge LH-600E, new generation with the highest accuracy in its class. Pneumatic movement mechanism. Self-explanatory control panel with menu commands in the display. Colour display with background illumination -14.5 cm. Automatic procedures for previously learned component programs. Go / No Go feedback for each measurement. Mains-independent operation by rechargeable battery (approx. 5 hours). DIGIMATIC data input for digital indicators, Functions for 1D and 2D measurements / evaluations. Tolerance evaluation with alarm function. Statistical processing/evaluations. Use of USB sticks 8 GB and larger Size 600EG - With handle for better handling of the gauge. Supplied with; Ball contact point 05 mm with mounting, calibration block (also for conical points), mains adapter, NiMH battery, and cover. Attention: German version. Order free UK adapter plug No. 081174_GB. Type 600E 1 6MEG 1 P ItTTlM Digital height gauge Linear Height (5223.60) (5499.00) Measuring range mm 600 -600 maximum application range mm 0-972 Graduations an be switched over mm 0.1/0.01/0.001/0.0001 Error limit (L=meas. length in mm) pm 1.1+0.6L/600 Repeatability plane pm 0.4 Straightness im 4 Rectangularity error (frontal) pm 5 Version without handle with handle Gauging force N 1 Overall height mm 1013 Weight kg 24 445390 my -S3 Stzndad /Inch RS232C Cal PH Digital height gauge TESA-pHITE Measuring range mm maximum application range mm Graduations an be switdied over mm Error limit with axial measurement pin (im Error limit with offset measurement pin im Repetition accuracy with axial measurement pin un Repetition accuracy with offset measurement pin pm Measurement slide movement Measuring force with motorised actuation (configurable) N 3636.00 100-100 0-160 0.0001 /0.001 1 2 OS 1 motorised /manual 0.63/1 ±0.1 ST ESA Digital height gauge TESA-pHITE Compact length measurement unit with measurement stand; highly precise, simple to operate. For length measurements in the form of external and internal dimensions; heights, depths, steps and distances of geometric elements with flat, plane parallel and cylindrical surfaces. Automatic sensing of the reversal points of holes and shafts. Dependent on the measurement setup selection, straightness, flatness and parallelism together with roundness and concentricity deviations can be determined. Configurable constant measuring force with motorised actuation. With integral temperature sensor. Motorised measuring head for quick probing of the measurement points. Measured value memory for 99 measured values. Memory functions , , for dynamic measurement procedures. Application: Ideal for measuring small workpieces in the immediate proximity to production. Supplied with: TESA measurement stand with granite base, TESA ijHITE measurement transducer, control panel, connecting cable, axial measurement contact point holder, measurement contact point with 3 mm 0 ball, radially offset measurement contact point with 5 mm 0 ball, reference piece, mains adaptor, mains cable, and plastic case. Optional extras: Comprehensive range of accessories available on request. Attention: German version. Order free UK adapter plug No. 081174_GB.
