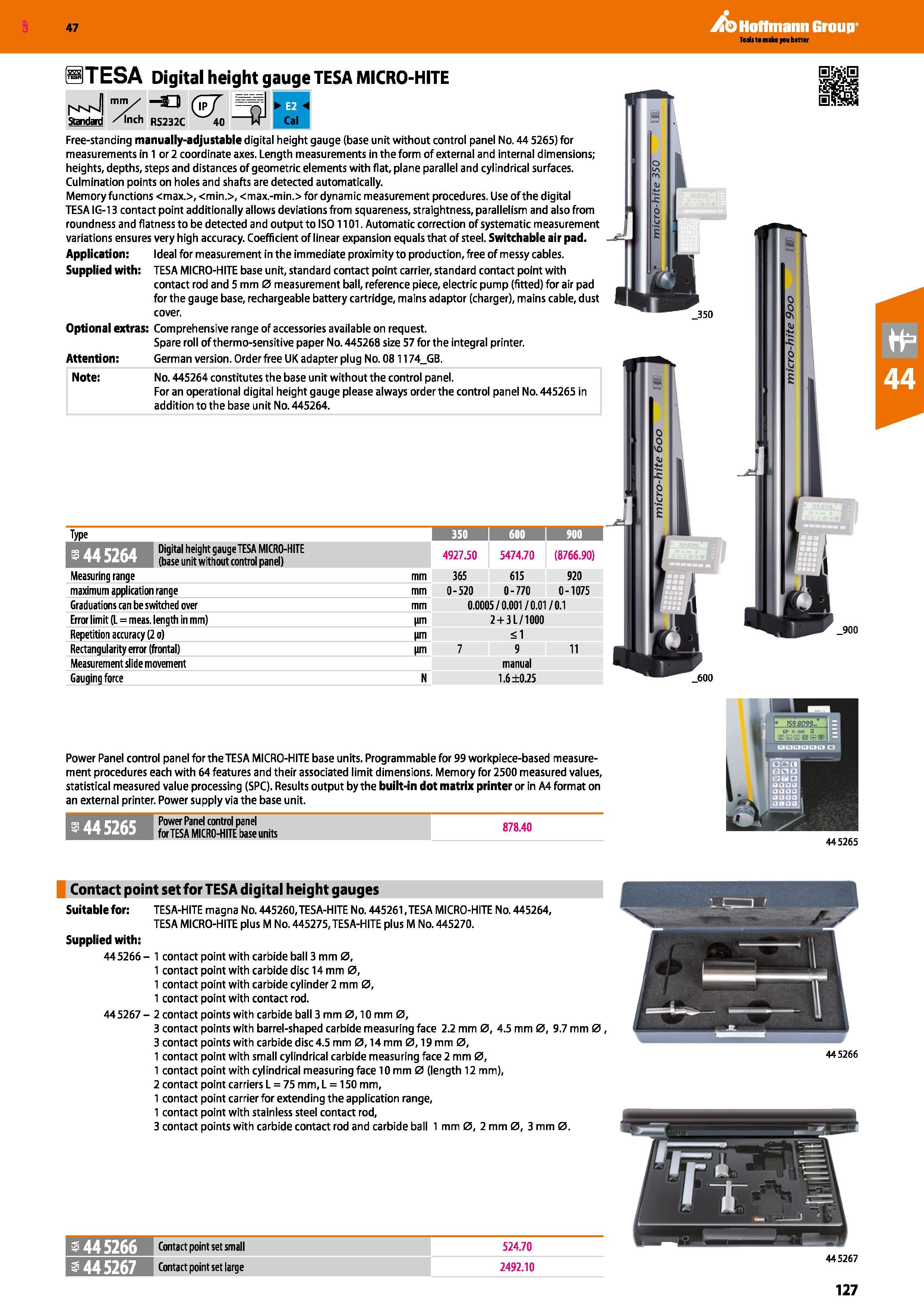

Hoffmann Group 47 3TESA Digital height gauge TESA MICRO-HITE vmJ Standatd y -O (wT Inch RS232C " 40 Cal Free-standing manually-adjustable digital height gauge (base unit without control panel No. 44 5265) for measurements in 1 or 2 coordinate axes. Length measurements in the form of external and internal dimensions; heights, depths, steps and distances of geometric elements with flat, plane parallel and cylindrical surfaces. Culmination points on holes and shafts are detected automatically. Memory functions , , for dynamic measurement procedures. Use of the digital TESA IG-13 contact point additionally allows deviations from squareness, straightness, parallelism and also from roundness and flatness to be detected and output to IS01101. Automatic correction of systematic measurement variations ensures very high accuracy. Coefficient of linear expansion equals that of steel. Switchable air pad. Application: Ideal for measurement in the immediate proximity to production, free of messy cables. Supplied with: TESA MICRO-HITE base unit, standard contact point carrier, standard contact point with contact rod and 5 mm 0 measurement ball, reference piece, electric pump (fitted) for air pad for the gauge base, rechargeable battery cartridge, mains adaptor (charger), mains cable, dust cover. Optional extras: Comprehensive range of accessories available on request. Spare roll of thermo-sensitive paper No. 445268 size 57 for the integral printer. German version. Order free UK adapter plug No. 081174_GB. .350 Attention: Note: No. 445264 constitutes the base unit without the control panel. For an operational digital height gauge please always order the control panel No. 445265 in addition to the base unit No. 445264. Type 1 350 I 600 Ml Digital height gauge TESA MICRO-HITE (base unit without control panel) 4927.50 5474.70 (8766.90) Measuring range mm 365 615 920 maximum application range mm 0-520 0-770 0-1075 Graduations can be switched over mm 0.0005 / 0.001/0.01 /0.1 Error limit (L = meas. length in mm) vn 2 + 3L/1000 Repetition accuracy (2 o) im <1 Rectangularity error (frontal) im 7 9 11 Measurement slide movement manual Gauging force N 1.6 ±0.25 _900 .600 Power Panel control panel for the TESA MICRO-HITE base units. Programmable for 99 workpiece-based measurement procedures each with 64 features and their associated limit dimensions. Memory for 2500 measured values, statistical measured value processing (SPC). Results output by the built-in dot matrix printer or in A4 format on an external printer. Power supply via the base unit. 44 5265 Power Panel control panel forTESA MICRO-HITE base units 878.40 445265 Contact point set for TESA digital height gauges Suitable for: TESA-HITE magna No. 445260,TESA-HITE No. 445261,TESA MICRO-HITE No. 445264, TESA MICRO-HITE plus M No. 445275, TESA-HITE plus M No. 445270. Supplied with: 445266 - 1 contact point with carbide ball 3 mm 0, 1 contact point with carbide disc 14 mm 0, 1 contact point with carbide cylinder 2 mm 0, 1 contact point with contact rod. 445267 - 2 contact points with carbide ball 3 mm 0,10 mm 0, 3 contact points with barrel-shaped carbide measuring face 2.2 mm 0, 4.5 mm 0, 9.7 mm 0, 3 contact points with carbide disc 4.5 mm 0,14 mm 0,19 mm 0, 1 contact point with small cylindrical carbide measuring face 2 mm 0, 1 contact point with cylindrical measuring face 10 mm 0 (length 12 mm), 2 contact point carriers L = 75 mm, L = 150 mm, 1 contact point carrier for extending the application range, 1 contact point with stainless steel contact rod, 3 contact points with carbide contact rod and carbide ball 1 mm 0, 2 mm 0, 3 mm 0. 3 44 5266 Contact point set small 524.70 EEtWiYJ Contact point set large 2492.10 445266
