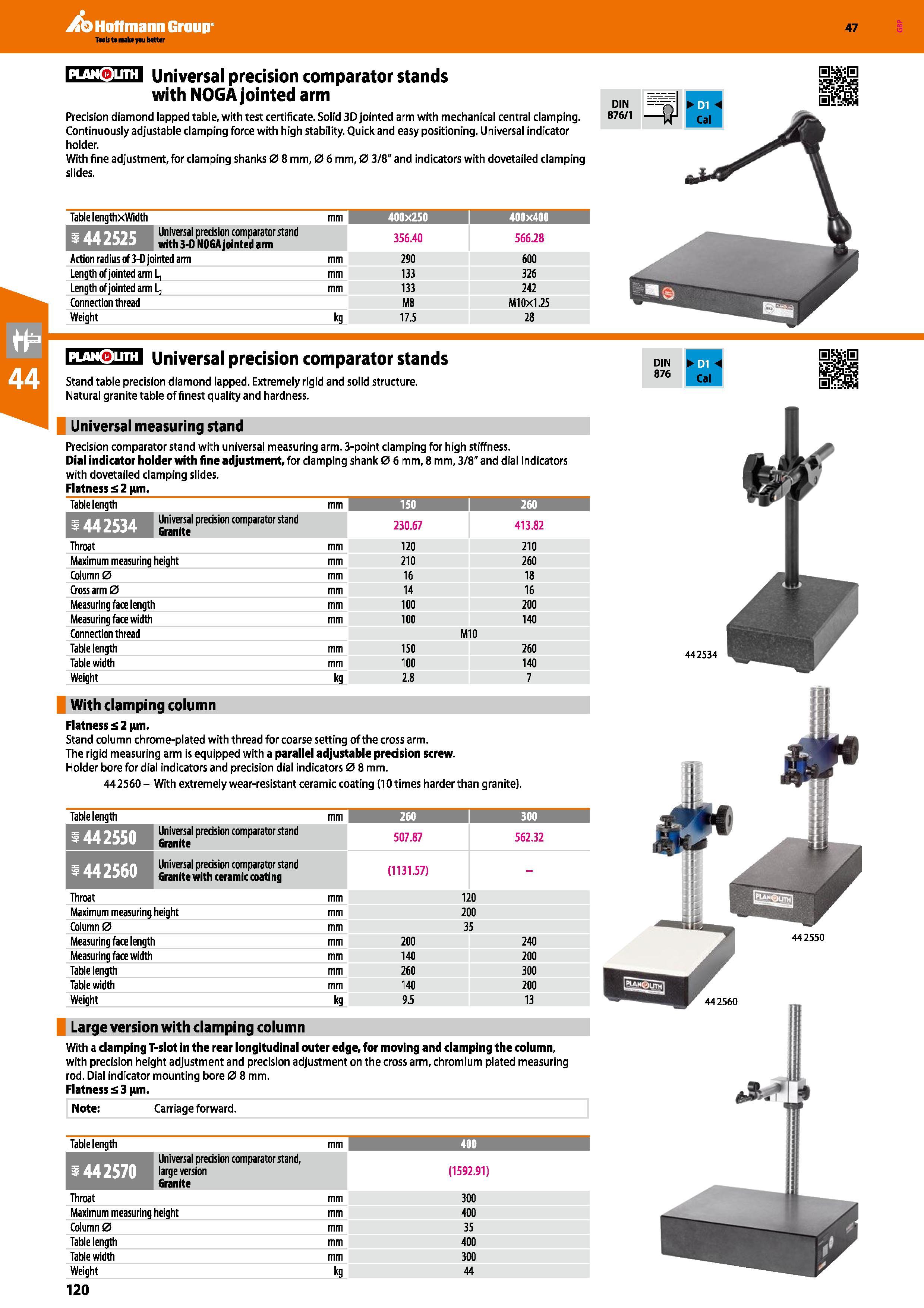

Hoffmann Group 47 PLAN0UTH Universal precision comparator stands with NOGA jointed arm Precision diamond lapped table, with test certificate. Solid 3D jointed arm with mechanical central clamping. Continuously adjustable clamping force with high stability. Quick and easy positioning. Universal indicator holder. With fine adjustment, for clamping shanks 0 8 mm, 0 6 mm, 0 3/8" and indicators with dovetailed clamping slides. Table lengthxWidth mm 400x250 I 400x400 I HfRM Universal precision comparator stand with 3-D NOGA jointed arm 356.40 566.28 Action radius of 3-D jointed arm mm 290 600 Length of jointed arm L, mm 133 326 Length of jointed arm L2 mm 133 242 Connection thread M8 Ml 0x1,25 Weight kg 17.5 28 PLAN0UTH Universal precision comparator stands Stand table precision diamond lapped. Extremely rigid and solid structure. Natural granite table of finest quality and hardness. Universal measuring stand Precision comparator stand with universal measuring arm. 3-point clamping for high stiffness. Dial indicator holder with fine adjustment, for clamping shank 0 6 mm, 8 mm, 3/8" and dial indicators with dovetailed clamping slides. Flatness 2 pm. Table length mm 150 1 260 1 HTETin Universal precision comparator stand Granite 230.67 413.82 Throat mm 120 210 Maximum measuring height mm 210 260 Column 0 mm 16 18 Cross arm 0 mm 14 16 Measuring face length Measuring face width Connection thread Table length Table width Weight With clamping column Flatness 2 pm. Stand column chrome-plated with thread for coarse setting of the cross arm. The rigid measuring arm is equipped with a parallel adjustable precision screw. Holder bore for dial indicators and precision dial indicators 0 8 mm. 442560 - With extremely wear-resistant ceramic coating (10 times harder than granite). Table length mm 260 I 300 i 1442550 Universal precision comparator stand Granite 507.87 562.32 i442560 Universal precision comparator stand Granite with ceramic coating (1131.57) - Throat mm 120 Maximum measuring height mm 200 Column 0 mm 35 Measuring face length mm 200 240 Measuring face width mm 140 200 Table length mm 260 300 Table width mm 140 200 Weight kg 95 13 Large version with clamping column With a clamping T-slot in the rear longitudinal outer edge, for moving and clamping the column, with precision height adjustment and precision adjustment on the cross arm, chromium plated measuring rod. Dial indicator mounting bore 0 8 mm. Flatness 3 pm. Note: Carriage forward. Table length mm 400 1 Universal precision comparator stand, large version Granite (1592.91) Throat mm 300 Maximum measuring height mm 400 Column 0 mm 35 Table length mm 400 Table width mm 300 Weight kg 44 442534
