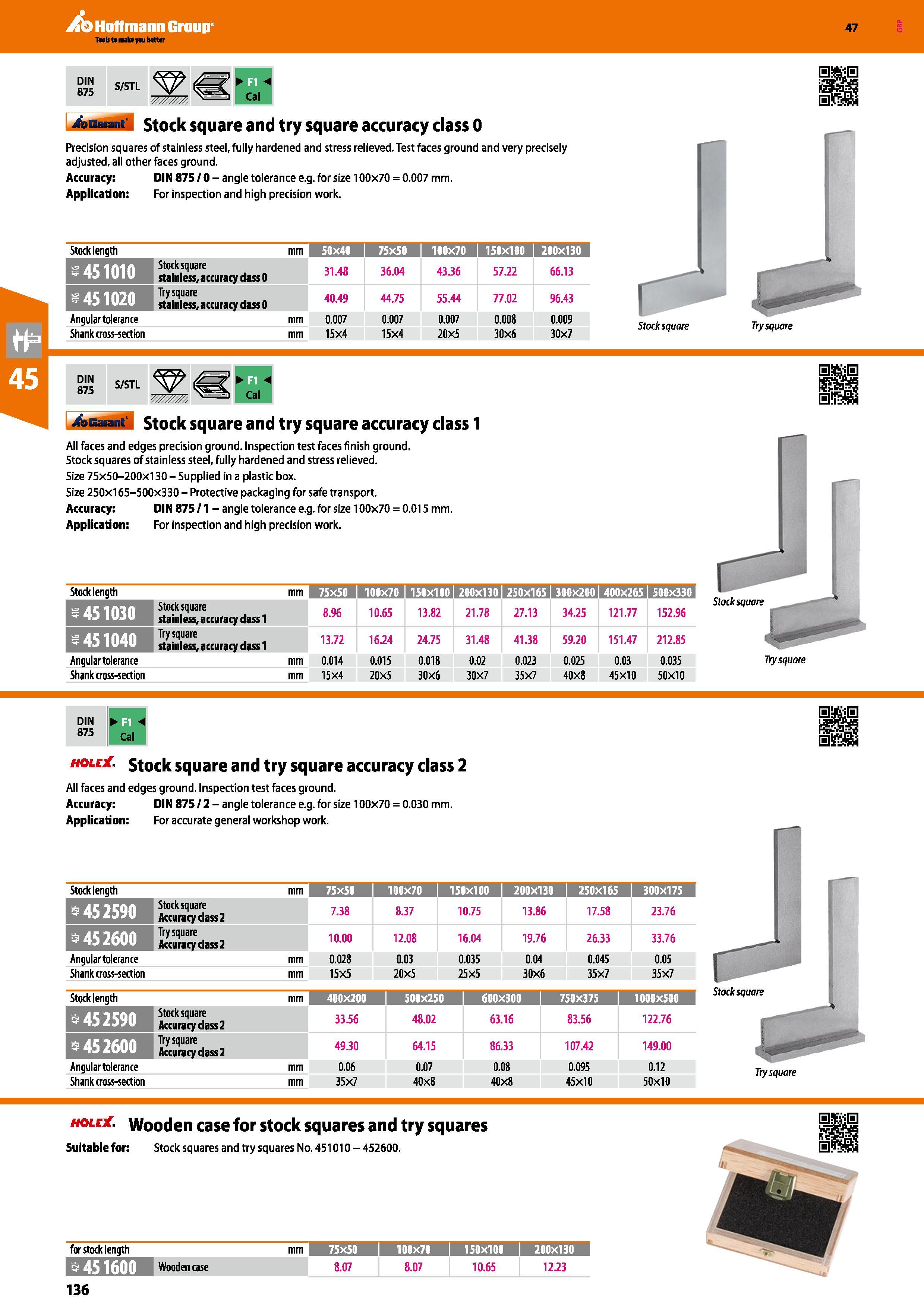

Hoffmann Group 47 DIN 875 S/STL ra Cal 4sBa Hi Stock square and try square accuracy class 0 Precision squares of stainless steel, fully hardened and stress relieved. Test faces ground and very precisely adjusted, all other faces ground. Accuracy: DIN 875 / 0 - angle tolerance e.g. for size 100x70 = 0.007 mm. Application: For inspection and high precision work. Stock length mm 50x40 I 75x50 I 100x70 -451010 Stock square stainless, accuracy class 0 31.48 36.04 43.36 57.22 66.13 - 451020 Trysquare stainless, accuracy class 0 40.49 44.75 55.44 77.02 96.43 Angular tolerance mm 0.007 0.007 0.007 0.008 0.009 Shank cross-section mm 15X4 15X4 20X5 30X6 30x7 Stock square Trysquare DIN 875 S/STL S Cal Stock square and try square accuracy class 1 All faces and edges precision ground. Inspection test faces finish ground. Stock squares of stainless steel, fully hardened and stress relieved. Size 75x50-200x130 - Supplied in a plastic box. Size 250x165-500x330 - Protective packaging for safe transport. Accuracy: DIN 875 /1 - angle tolerance e.g. for size 100x70 = 0.015 mm. Application: For inspection and high precision work. Stock length mm 75X50 1 100X70 1 150X1001 200X1301 250X1651 300X2001 400X2651 500X330 1 451030 Stock square stainless, accuracy class 1 8.96 10.65 13.82 21.78 27.13 34.25 121.77 152.96 451040 Trysquare stainless, accuracy class 1 13.72 16.24 24.75 31.48 41.38 59.20 151.47 212.85 Angular tolerance mm 0.014 0.015 0.018 0.02 0.023 0.025 0.03 0.035 Shank cross-section mm 15X4 20X5 30x6 30x7 35x7 40x8 45X10 50x10 Trysquare DIN 875 holex. stock square and try square accuracy class 2 All faces and edges ground. Inspection test faces ground. Accuracy: DIN 87512- angle tolerance e.g. for size 100x70 = 0.030 mm. Application: For accurate general workshop work. Stock length mm 75x50 i 100x70 1 150x100 I 200x130 I 250x165 1 300x175 s 45 2590 Stock square Accuracy class 2 7.38 8.37 10.75 13.86 17.58 23.76 9 45 2600 Trysquare Accuracy class 2 10.00 12.08 16.04 19.76 26.33 33.76 Angular tolerance mm 0.028 0.03 0.035 0.04 0.045 0.05 Shank cross-section mm 15x5 20x5 25x5 30x6 35x7 35x7 Stock length mm 400x200 500x250 i 600x300 750x375 1000x500 j H M Stock square Accuracy class 2 33.56 48.02 63.16 83.56 122.76 452600 Angular tolerance Shank cross-section Trysquare Accuracy class 2 mm 49.30 0.06 35x7 64.15 0.07 40x8 86.33 0.08 40x8 107.42 0.095 45x10 149.00 0.12 50x10 Trysquare holex. Wooden case for stock squares and try squares Suitable for: Stock squares and try squares No. 451010-452600. for stock length mm 75x50 i 100x70 1 150x100 I 200x130 i 9 451600 8.07 8.07 10.65 12.23 136
