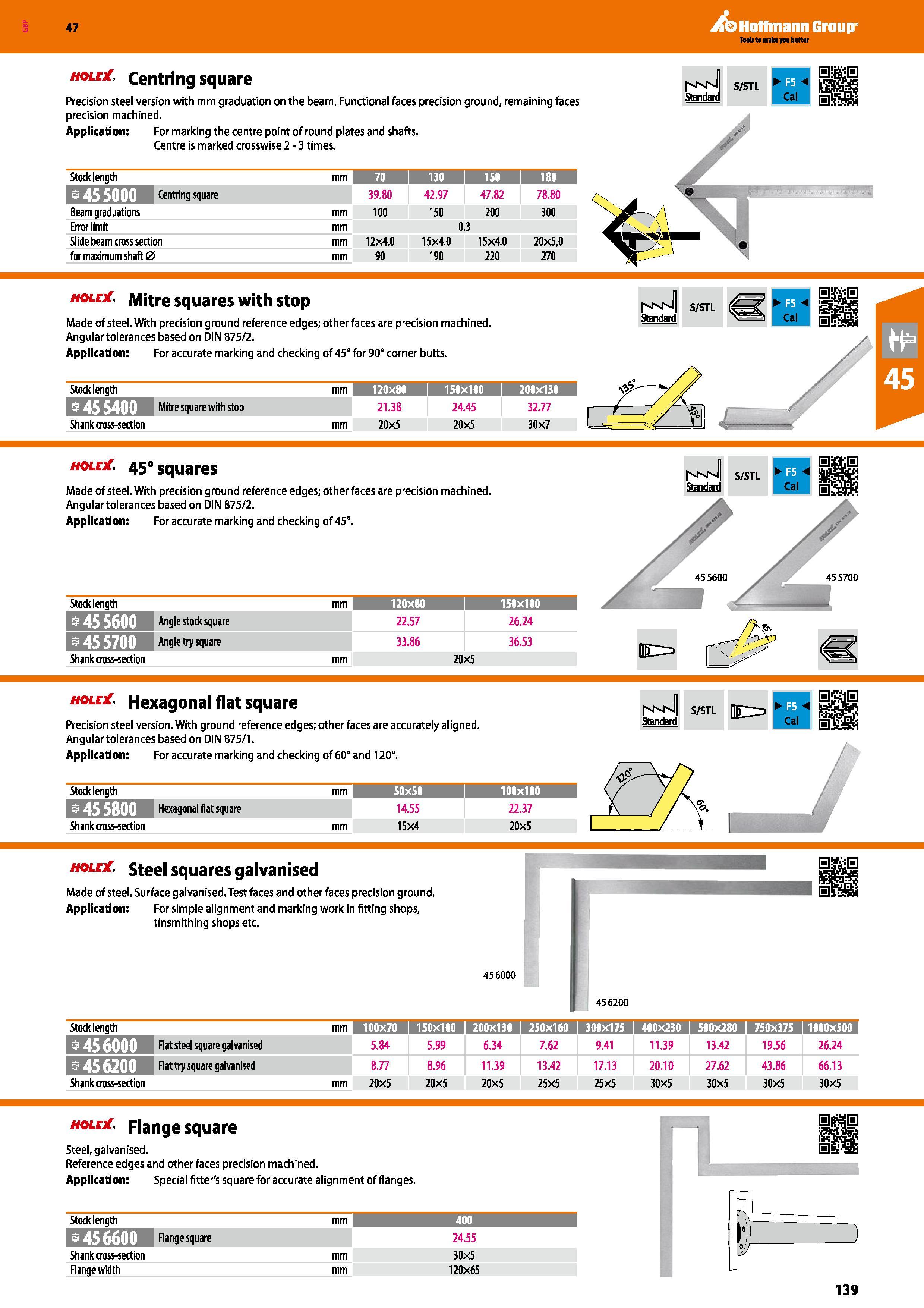

Hoffmann Group 47 hole . Centring square I'vMvfl Precision steel version with mm graduation on the beam. Functional faces precision ground, remaining faces precision machined. Application: For marking the centre point of round plates and shafts. Centre is marked crosswise 2 - 3 times. S/STL S' Standard Cal Stock length mm 70 130 j 150 180 I 19 455000 39.80 42.97 47.82 78.80 Beam graduations mm 100 150 200 300 Error limit mm 0.3 Slide beam cross section mm 12x4.0 15x4.0 15x4.0 20x5,0 for maximum shaft 0 mm 90 190 220 270 hole . Mitre squares with stop Made of steel. With precision ground reference edges; other faces are precision machined. Angular tolerances based on DIN 875/2. Application: For accurate marking and checking of 45° for 90° corner butts. hMvfl S/STL Standard Stock length mm 120x80 1 150X100 1 200X130 Mitre square with stop 21.38 24.45 32.77 Shank cross-section mm 20X5 20X5 30X7 hole . 45° squares Made of steel. With precision ground reference edges; other faces are precision machined. Angular tolerances based on DIN 875/2. Application: For accurate marking and checking of 45°. Stock length mm 120x80 1 150x100 i 45 5600 Angle stock square 22.57 26.24 e 45 5700 Angle try square 33.86 36.53 Shank cross-section mm 20x5 holex. Hexagonal flat square Precision steel version. With ground reference edges; other faces are accurately aligned. Angular tolerances based on DIN 875/1. Application: For accurate marking and checking of 60° and 120°. vmJ Standard S/STL Cal Stock length mm 50x50 1 100x100 / A EtfliTlTiM Hexagonal flat square 14.55 22.37 K Shank cross-section mm 15x4 20x5 1 / 1 hole , steel squares galvanised Made of steel. Surface galvanised. Test faces and other faces precision ground. Application: For simple alignment and marking work in fitting shops, tinsmithing shops etc. 45 6000 456200 Stock length 33 ioox7o 1 150x100 1 200x130 I 250x160 I 300x175 I 400x230 I 500x280 I 750x375 I 1000x500 1 s 45 6000 Flat steel square galvanised 5.84 5.99 6.34 7.62 9.41 11.39 13.42 19.56 26.24 s 45 6200 Flat try square galvanised 8.77 8.96 11.39 13.42 17.13 20.10 27.62 43.86 66.13 Shank cross-section 20x5 20x5 20x5 25x5 25x5 30x5 30x5 30x5 30x5 hole . Flange square Steel, galvanised. Reference edges and other faces precision machined. Application: Special fitter's square for accurate alignment of flanges. Stock length mm 400 1 1 45 6600 EH 24.55 Shank cross-section mm 30x5 Range width mm 120x65
