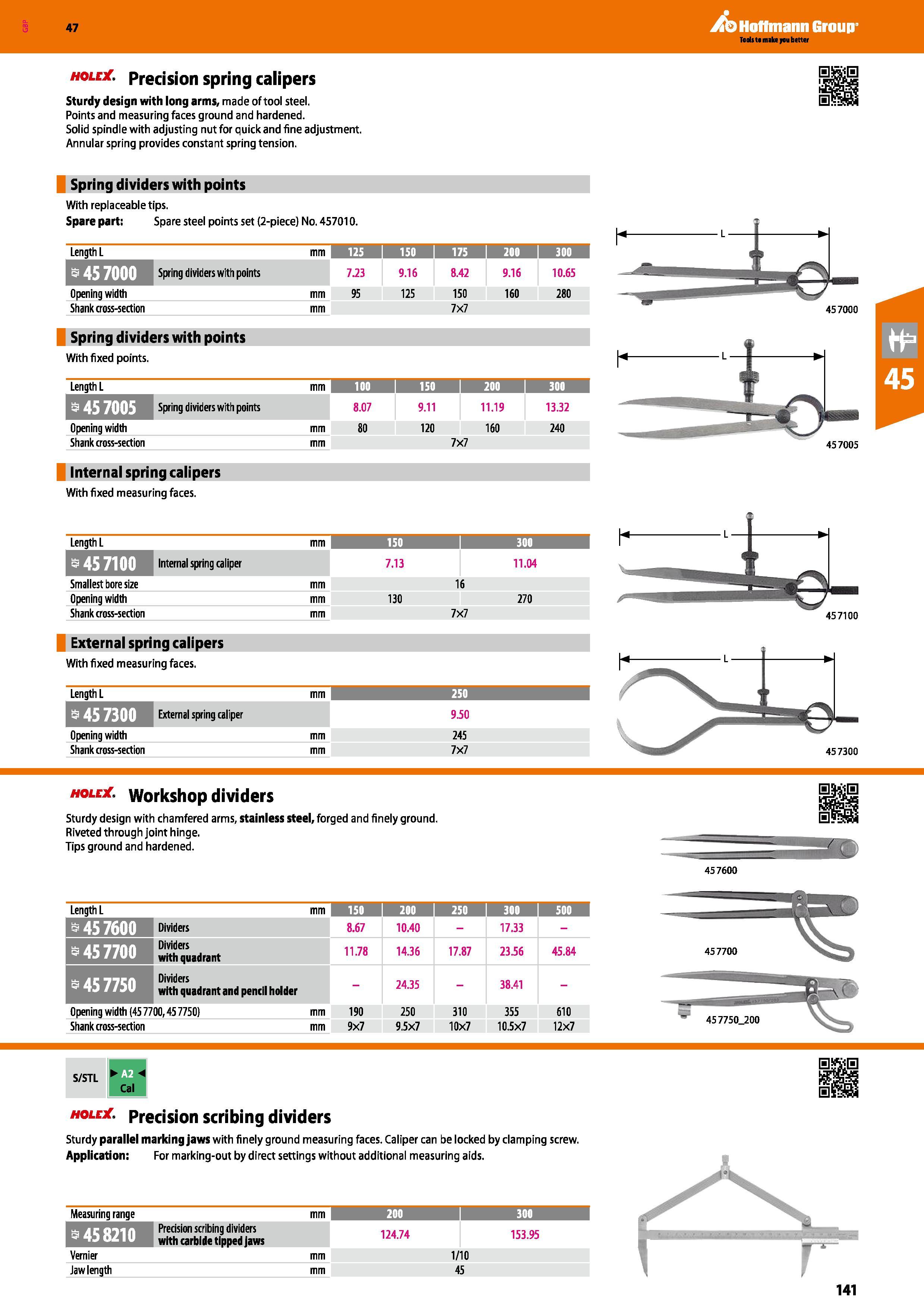

Hoffmann Group 47 hole . Precision spring calipers Sturdy design with long arms, made of tool steel. Points and measuring faces ground and hardened. Solid spindle with adjusting nut for quick and fine adjustment. Annular spring provides constant spring tension. Spring dividers with points With replaceable tips. Spare part: Spare steel points set (2-piece) No. 457010. Length L mm 125 1 150 j 175 I 200 i 300 FLJTlTlTjM Spring dividers with points 7.23 9.16 8.42 9.16 10.65 Opening width mm 95 125 150 160 280 Shank cross-section mm '" J X J Spring dividers with points With fixed points. Length L mm 100 I 150 200 i 300 Spring dividers with points 8.07 9.11 11.19 13.32 Opening width mm 80 120 160 240 Shank cross-section mm 7x7 Internal spring calipers With fixed measuring faces. Length L a 150 1 300 FLJjrifjB Internal spring caliper 7.13 11.04 Smallest bore size mm 16 Opening width mm 130 270 Shank cross-section mm '" J X J External spring calipers With fixed measuring faces. Length L mm 250 External spring caliper 9.50 Opening width mm 245 Shank cross-section mm 7X7 457005 hole , workshop dividers Sturdy design with chamfered arms, stainless steel, forged and finely ground. Riveted through joint hinge. Tips ground and hardened. Length L mm 150 j 200 i 250 TTM 500 i 45 7600 Dividers 8.67 10.40 - 17.33 - s 45 7700 Dividers with quadrant 11.78 14.36 17.87 23.56 45.84 45 7750 Dividers with quadrant and pencil holder - 24.35 - 38.41 - Opening width (457700,457750) mm 190 250 310 355 610 Shank cross-section mm 9x7 9.5x7 10x7 10.5x7 12x7 457600 45 7750_200 S/STL hole , precision scribing dividers Sturdy parallel marking jaws with finely ground measuring faces. Caliper can be locked by clamping screw. Application: For marking-out by direct settings without additional measuring aids. Measuring range mm n PVfVlffTIB Precision scribing dividers EUImIU With carbide tipped jaws 124.74 153.95 Vernier mm 1/10 Jaw length mm 45 457300
