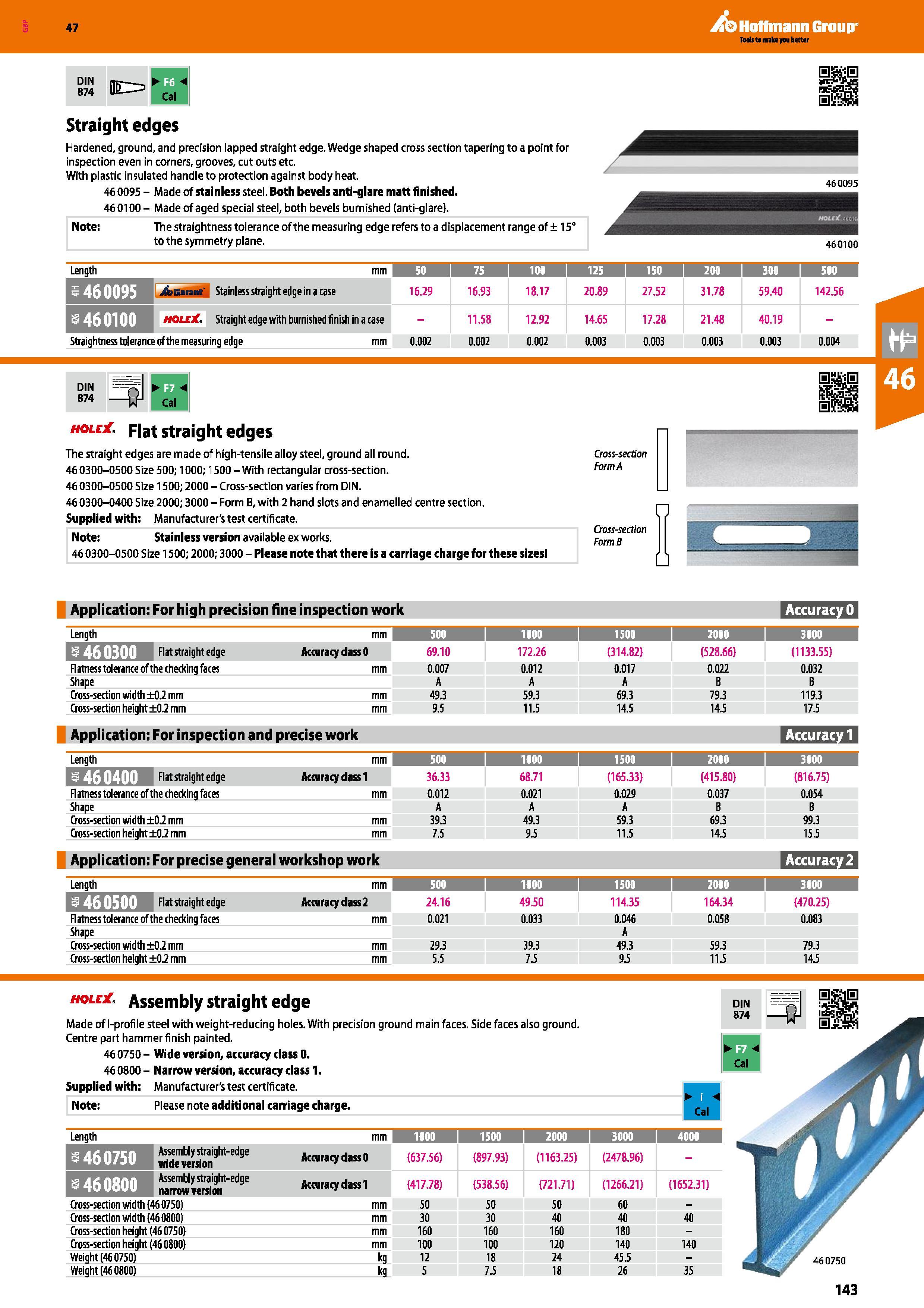

Hoffmann Group 47 DIN 874 Straight edges Hardened, ground, and precision lapped straight edge. Wedge shaped cross section tapering to a point for inspection even in corners, grooves, cut outs etc. With plastic insulated handle to protection against body heat. 46 0095 - Made of stainless steel. Both bevels anti-glare matt finished. 460100- Made of aged special steel, both bevels burnished (anti-glare). Note: The straightness tolerance of the measuring edge refers to a displacement range of ± 15° to the sym metry plane. DIN 874 ou . F at straight edges The straight edges are made of high-tensile alloy steel, ground all round. 46 0300-0500 Size 500; 1000; 1500 - With rectangular cross-section. 46 0300-0500 Size 1500; 2000 - Cross-section varies from DIN. 46 0300-0400 Size 2000; 3000 - Form B, with 2 hand slots and enamelled centre section. Supplied with: Manufactu rer's test certificate. Note: Stainless version available ex works. 46 0300-0500 Size 1500; 2000; 3000 - Please note that there is a carriage charge for these sizes Cross-section Form A Cross-section FormB n LJ 460100 Length mm 50 75 100 i 125 150 200 300 i S00 1 UMiim Stainless straight edge in a case 16.29 16.93 18.17 20.89 27.52 31.78 59.40 142.56 460100 holeX. Straight edge with burnished finish in a case - 11.58 12.92 14.65 17.28 21.48 40.19 - Straightness tolerance of the measuring edge mm 0.002 0.002 0.002 0.003 0.003 0.003 0.003 0.004 Application: For high precision fine inspection work HTWflTHTl Length mm 500 1000 i 1500 2000 i 3000 Is460300 Accuracy dassO 69.10 172.26 (314.82) (528.66) (1133.55) Flatness tolerance of the checking faces mm 0.007 0.012 0.017 0.022 0.032 Shape A A A B B Cross-section width ±0.2 mm 49.3 59.3 69.3 79.3 119.3 Cross-section height ±0.2 mm 9.5 11.5 14.5 14.5 17.5 Application: For inspection and precise work lifffflTCTl Length mm 500 1 1000 1 1500 2000 i 3000 460400 m Accuracy dassl 36.33 68.71 (165.33) (415.80) (816.75) Flatness tolerance of the checking faces mm 0.012 0.021 0.029 0.037 0.054 Shape A A A B B Cross-section width ±0.2 mm 39.3 49.3 59.3 69.3 99.3 Cross-section height ±0.2 mm 7.5 9.5 11.5 14.5 15.5 Application: For precise general workshop work fiTWHTTTTl Length mm 500 I 1000 1 1500 I 2000 1 3000 I 460500 Accuracy dass 2 24.16 49.50 114.35 164.34 (470.25) Flatness tolerance of the checking faces mm 0.021 0.033 0.046 0.058 0.083 Shape A Cross-section width ±0.2 mm 29.3 39.3 49.3 59.3 79.3 Cross-section height ±0.2 mm 5.5 7.5 9.5 11.5 14.5 hole . Assembly straight edge Made of l-profile steel with weight-reducing holes. With precision ground main faces. Side faces also ground. Centre part hammer finish painted. 46 0750 - Wide version, accuracy class 0. 46 0800 - Narrow version, accuracy class 1. Supplied with: Manufactu rer's test certificate. Note: Please note additional carriage charge. Length mm 1000 i 1500 IHlfll 3000 i 4000 Assembly straight-edge wide version Accuracy dassO (637.56) (897.93) (1163.25) (2478.96) - Assembly straight-edge narrow version Accuracy dassl (417.78) (538.56) (721.71) (1266.21) (1652.31) Cross-section width (46 0750) mm 50 50 50 60 - Cross-section width (46 0800) mm 30 30 40 40 40 Cross-section height (46 0750) mm 160 160 160 180 - Cross-section height (46 0800) mm 100 100 120 140 140 Weight (460750) kg 12 18 24 45.5 - Weight (460800) kg 5 7.5 18 26 35 460750 143
