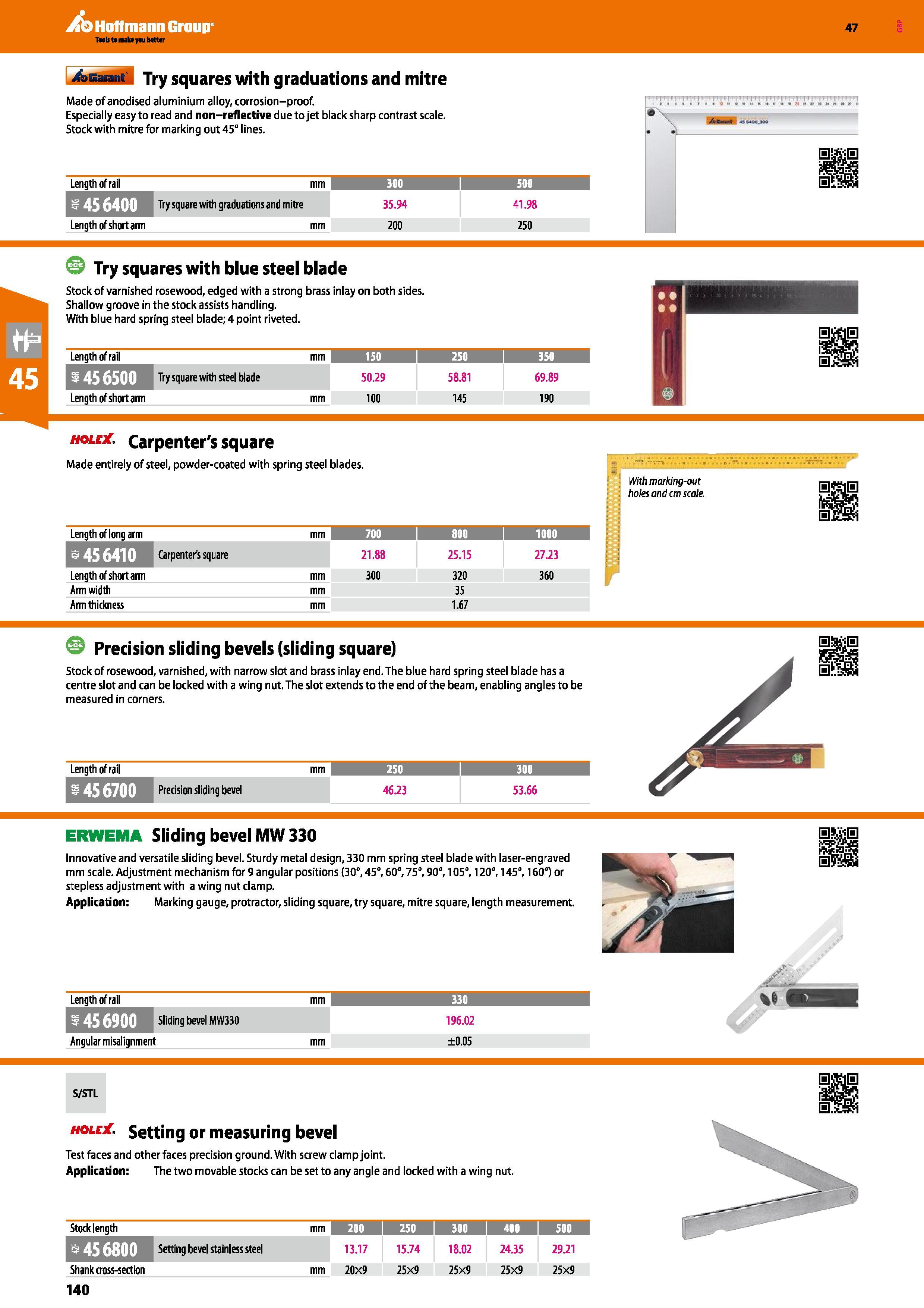

Hoffmann Group 47 Try squares with graduations and mitre Made of anodised aluminium alloy, corrosion-proof. Especially easy to read and non-reflective due to jet black sharp contrast scale. Stock with mitre for marking out 45° lines. Length of rail mm 300 i 500 1 M564 Try square with graduations and mitre 35.94 41.98 0 Try squares with blue steel blade Stock of varnished rosewood, edged with a strong brass inlay on both sides. Shallow groove in the stock assists handling. With blue hard spring steel blade; 4 point riveted. Length of rail mm 150 i 250 1 350 f Try square with steel blade 50.29 58.81 69.89 Length of short arm mm 100 145 190 holoc. Carpenter's square Made entirely of steel, powder-coated with spring steel blades. Length of long arm mm 700 1 800 iooo i Carpenter's square 21.88 25.15 27.23 Length of short arm mm 300 320 360 Arm width mm 35 Arm thickness mm 1.67 With marking-out holes and cm scale. 0 Precision sliding bevels (sliding square) Stock of rosewood, varnished, with narrow slot and brass inlay end. The blue hard spring steel blade has a centre slot and can be locked with a wing nut. The slot extends to the end of the beam, enabling angles to be measured in corners. Length of rail mm 250 300 Precision sliding bevel 46.23 53.66 ERWEMA Sliding bevel MW 330 Innovative and versatile sliding bevel. Sturdy metal design, 330 mm spring steel blade with laser-engraved mm scale. Adjustment mechanism for 9 angular positions (30°, 45°, 60°, 75°, 90°, 105°, 120°, 145°, 160°) or stepless adjustment with awing nut clamp. Application: Marking gauge, protractor, sliding square, try square, mitre square, length measurement. Length of rail mm 330 1 Sliding bevel MW330 196.02 Angular misalignment mm ±0.05 S/STL hole . Setting or measuring bevel Test faces and other faces precision ground. With screw dampjoint. Application: The two movable stocks can be set to any angle and locked with a wing nut. Stock length Hffil 200 I 250 i 300 nun 500 1 Setting bevel stainless steel 13.17 15.74 18.02 24.35 29.21 Shank cross-section mm 20x9 25x9 25x9 25x9 25x9 140
