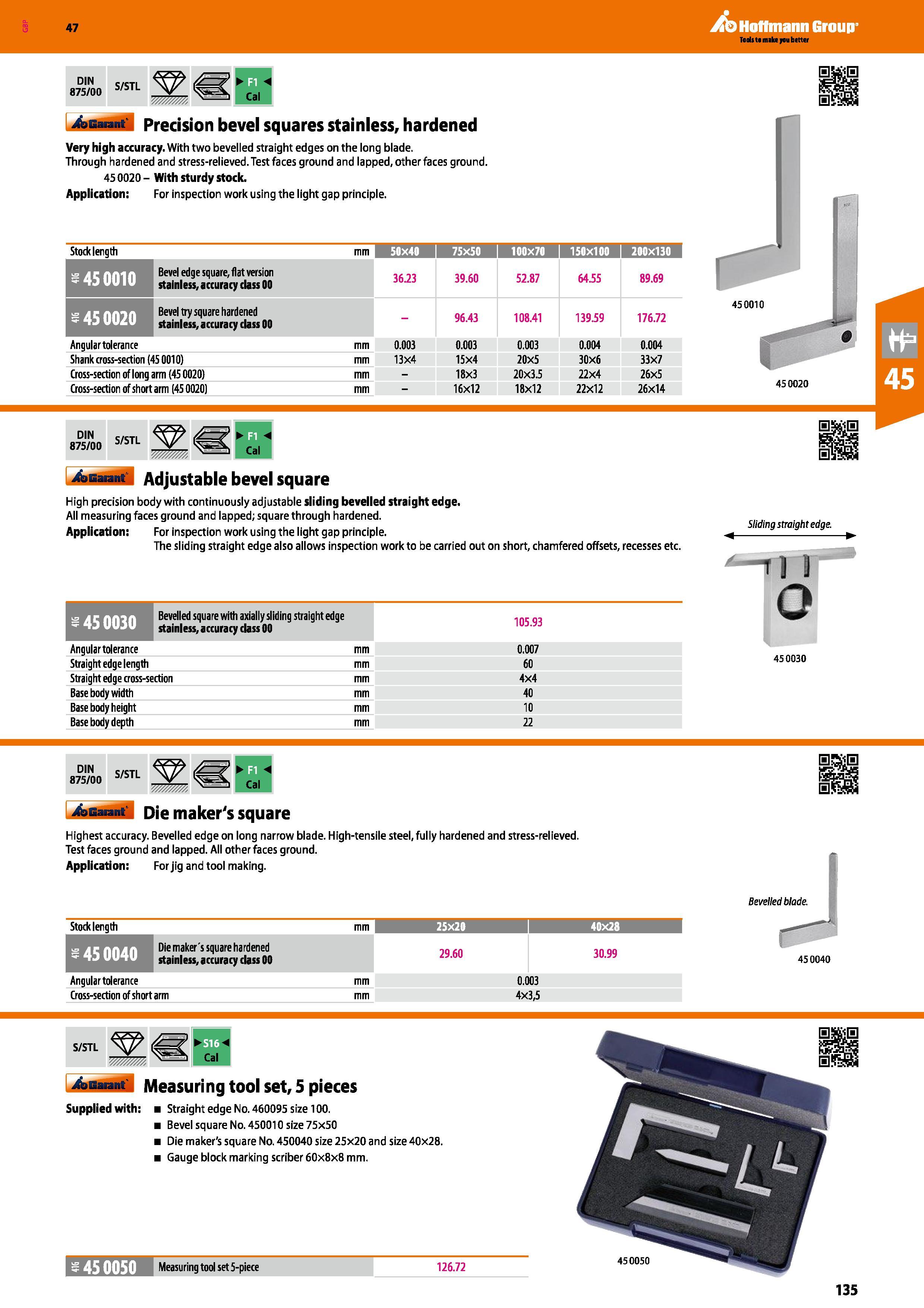

47 DIN 875/00 Hoffmann Group S/STL Cal Precision bevel squares stainless, hardened Very high accuracy. With two bevelled straight edges on the long blade. Through hardened and stress-relieved. Test faces ground and lapped, other faces ground. 45 0020 - With sturdy stock. Application: For inspection work using the light gap principle. Stock length mm 51x40 75x50 I 100x70 I 151x100 I 200x130 s 45 0010 Bevel edge square, flat version stainless, accuracy class 00 36.23 39.60 52.87 64.55 89.69 45 0020 Bevel try square hardened stainless, accuracy class 00 - 96.43 108.41 139.59 176.72 Angular tolerance mm 0.003 0.003 0.003 0.004 0.004 Shank cross-section (45 0010) mm 13x4 15x4 20x5 30x6 33x7 Cross-section of long arm (45 0020) mm - 18x3 20x3.5 22x4 26x5 Cross-section of short arm (45 0020) mm - 16x12 18x12 22x12 26x14 DIN 875/00 S/STL >Earant Adjustable bevel square High precision body with continuously adjustable sliding bevelled straightedge. All measuring faces ground and lapped; square through hardened. Application: For inspection work using the light gap principle. The sliding straight edge also allows inspection work to be carried out on short, chamfered offsets, recesses etc. Sliding straightedge. Bevelled square with axially sliding straight edge stainless, accuracy class 00 105.93 Angular tolerance mm 0.007 Straightedge length mm 60 Straight edge cross-section mm 4x4 Base body width mm 40 Base body height mm 10 Base body depth mm 22 450030 DIN 875/00 S/STL bBaiant Die maker's square Highest accuracy. Bevelled edge on long narrow blade. High-tensile steel, fully hardened and stress-relieved. Test faces ground and lapped. All other faces ground. Application: For jig and tool making. Bevelled blade. Stock length mm 25X20 1 40X28 j Die maker's square hardened stainless, accuracy class 00 29.60 30.99 Angular tolerance mm 0.003 Cross-section of short arm mm 4x3,5 450040 S/STL bGaiant' Measuring tool set, 5 pieces Supplied with: Straight edge No. 460095 size 100. Bevel square No. 450010 size 75x50 Die maker's square No. 450040 size 25x20 and size 40x28. Gauge block marking scriber 60x8x8 mm. 450050 Measuring tool set 5-piece 126.72
