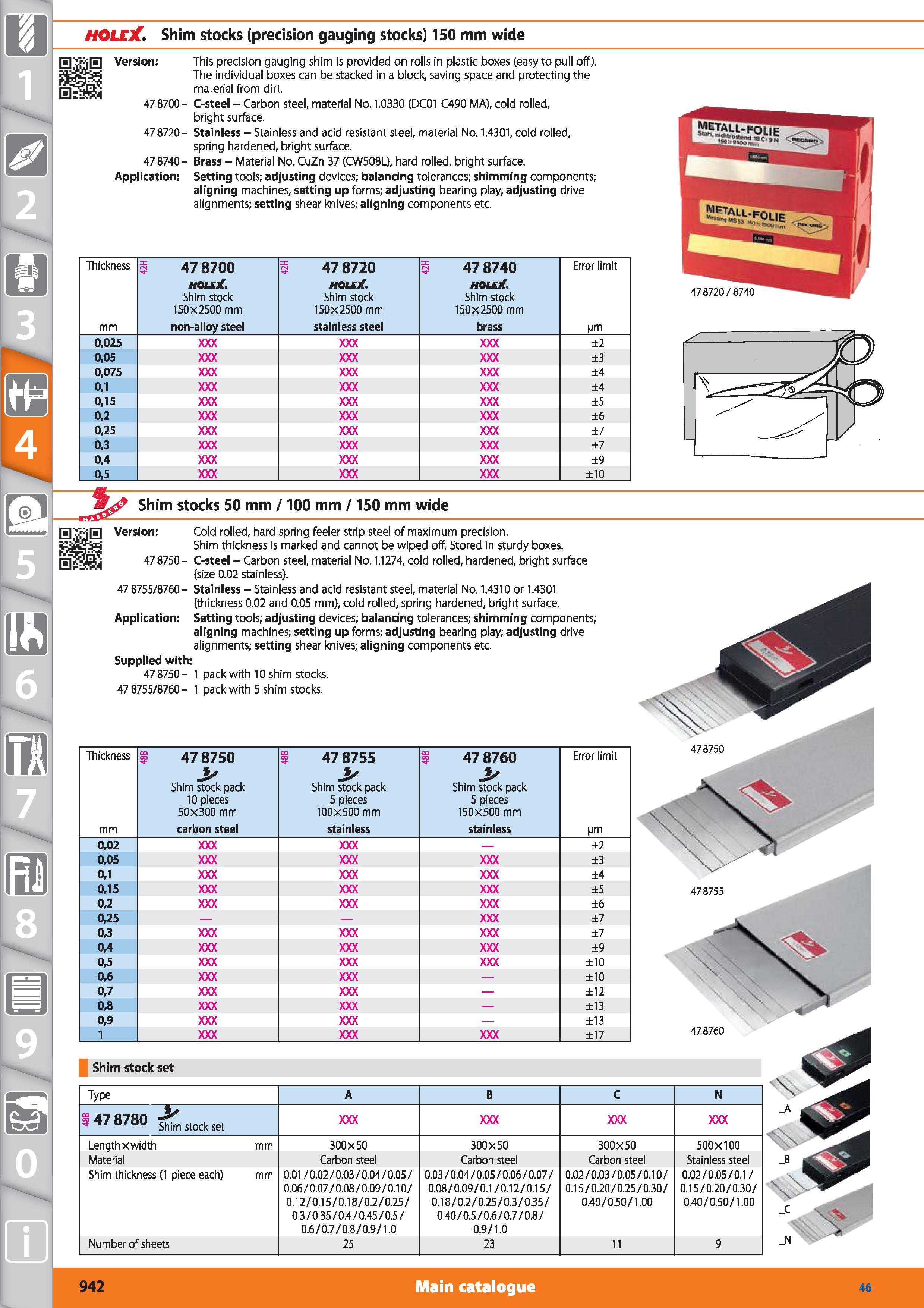

HOLEX Shim stocks (precision gauging stocks) 150 mm wide Version This precision gauging shim is provided on rolls in plastic boxes (easy to pull off). The individual boxes can be stacked in a block, saving space and protecting the material from dirt. 47 8700- C-steel - Carbon steel, material No. 1.0330 (DC01 C490 MA), cold rolled, bright surface. 47 8720- Stainless - Stainless and acid resistant steel, material No. 1.4301, cold rolled, spring hardened, bright surface. Brass - Material No. CuZn 37 (CW508L), hard rolled, bright surface. Setting tools; adjusting devices; balancing tolerances; shimming components; aligning machines; setting up forms; adjusting bearing play; adjusting drive alignments; setting shear knives; aligning components etc. 478740 Application Thickness mm 1 478700 HOLEX Shim stock 150x 2500 mm non-alloy steel s 478720 HOLEX Shim stock 150x 2500 mm stainless steel 3 478740 holcjC. Shim stock 150x 2500 mm brass Error limit (Jim 0,025 ±2 0,05 ±3 0,075 ±4 0,1 ±4 0,15 ±5 0,2 ±6 0,25 ±7 0,3 ±7 0,4 ±9 0,5 ±10 478720/8740 Shim stocks 50 mm / 100 mm / 150 mm wide Version Cold rolled, hard spring feeler strip steel of maximum precision. Shim thickness is marked and cannot be wiped off. Stored in sturdy boxes. 478750- C-steel - Carbon steel, material No. 1.1274, cold rolled, hardened, bright surface (size 0.02 stainless). 47 8755/8760- Stainless - Stainless and acid resistant steel, material No. 1.4310 or 1.4301 (thickness 0.02 and 0.05 mm), cold rolled, spring hardened, bright surface. Application Setting tools; adjusting devices; balancing tolerances; shimming components; aligning machines; setting up forms; adjusting bearing play; adjusting drive alignments; setting shear knives; aligning components etc. Supplied with 478750- 1 pack with 10 shim stocks. 47 8755/8760- 1 pack with 5 shim stocks. Thickness mm 478750 > Shim stock pack 10 pieces 50x300 mm carbon steel 478755 > Shim stock pack 5 pieces 100x500 mm stainless 1 478760 > Shim stock pack 5 pieces 150x500 mm stainless Error limit im 0,02 ±2 0,05 ±3 0,1 ±4 0,15 ±5 0,2 ±6 0,25 ±7 0,3 ±7 0,4 ±9 0,5 ±10 0,6 ±10 0,7 ±12 0,8 ±13 0,9 ±13 1 ±17 Shim stock set 478750 478755 478760 Type A B C N 1478780 sWm stock set Lengthxwidth mm 300X50 300X50 300X50 500X100 Material Carbon steel Carbon steel Carbon steel Stainless steel Shim thickness (1 piece each) mm 0.01/0.02/0.03/0.04/0.05/ 0.06/0.07/0.08/0.09/0.10/ 0.12/0.15/0.18/0.2/0.25/ 0.3/0.35/0.4/0.45/0.5/ 0.6/0.7/0.8/0.9/1.0 0.03/0.04/0.05/0.06/0.07/ 0.08/0.09/0.1/0.12/0.15/ 0.18/0.2/0.25/0.3/0.35/ 0.40/0.5/0.6/0.7/0.8/ 0.9/1.0 0.02/0.03/0.05/0.10/ 0.15/0.20/0.25/0.30/ 0.40/0.50/1.00 0.02/0.05/0.1/ 0.15/0.20/0.30/ 0.40/0.50/1.00 Number of sheets 25 23 11 9 \ l 942 Main catalogue Hoffmann Group 46
