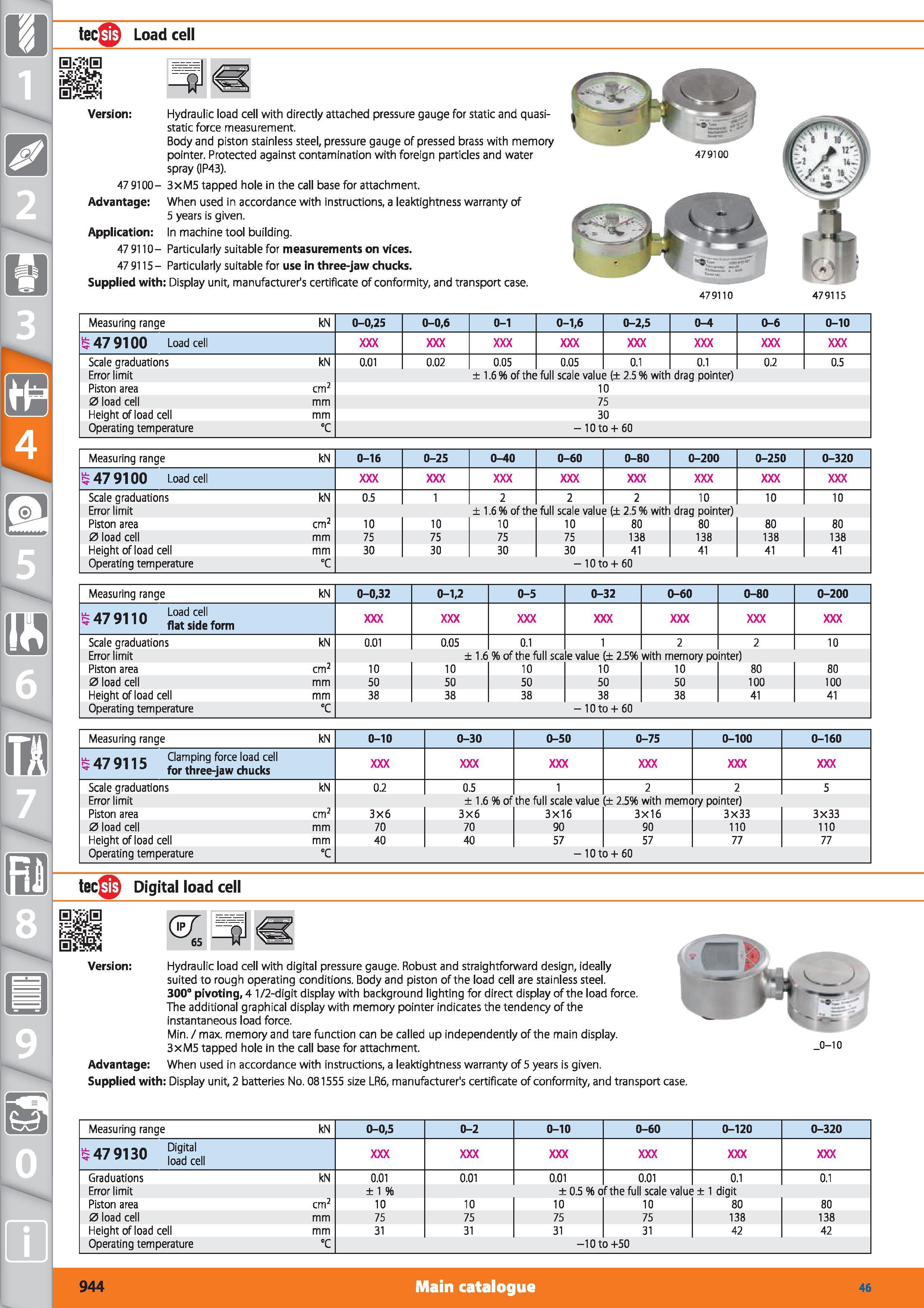

tecffi Load cell Version Hydraulic load cell with directly attached pressure gauge for static and quasi- static force measurement. Body and piston stainless steel, pressure gauge of pressed brass with memory pointer. Protected against contamination with foreign particles and water spray (IP43). 47 9100- 3xM5 tapped hole in the call base for attachment. Advantage When used in accordance with instructions, a leaktightness warranty of 5 years is given. Application In machine tool building. 47 9110- Particularly suitable for measurements on vices. 47 9115- Particularly suitable for use in three-jaw chucks. Supplied with Display unit, manufacturer's certificate of conformity, and transport case. 479115 Measuring range kN 0-0,25 0-0,6 0-1 0-1,6 0-2,5 0-4 0-6 0-10 47 9100 Load cell Scale graduations kN 0.01 0.02 0.05 0.05 0.1 0.1 0.2 0.5 Error limit ± 1.6% of the full scale value (± 2.5% with drag pointer) Piston area cm2 10 0 load cell mm 75 Height of load cell mm 30 Operating temperature °C -10 to+ 60 Measuring range kN 0-16 0-25 0-40 0-60 0-80 0-200 0-250 0-320 5 47 9100 Load cell Scale graduations kN 0.5 1 2 2 2 10 10 10 Error limit ± 1.6% of the full scale value (± 2.5% with drag pointer) Piston area cm2 10 10 10 10 80 80 80 80 0 load cell mm 75 75 75 75 138 138 138 138 Height of load cell mm 30 30 30 30 41 41 41 41 Operating temperature °C -10 to+ 60 Measuring range kN 0-0,32 0-1,2 0-5 0-32 0-60 0-80 0-200 47 9110 Load cel1 'tH/ lu flat side form Scale graduations kN 0.01 0.05 0.1 1 2 2 10 Error limit ± 1.6 of the full scale value (± 2.5% with memory pointer) Piston area cm2 10 10 10 10 10 80 80 0 load cell mm 50 50 50 50 50 100 100 Height of load cell mm 38 38 38 38 38 41 41 Operating temperature °C -10 to+ 60 Measuring range kN 0-10 0-30 0-50 0-75 0-100 0-160 u. a-j qi i c Clamping force load cell 5 4/9113 for three-jaw chucks Scale graduations kN 0.2 0.5 1 2 2 5 Error limit ± 1.6% of the full scale value '+ 2.5% with memory pointer) Piston area cm2 3x6 3X6 3X16 3x16 3X33 3X33 0 load cell mm 70 70 90 90 110 110 Height of load cell mm 40 40 57 57 77 77 Operating temperature °C -10 to+ 60 8 0 m tec ft Digital load cell Version ar 65 Advantage Hydraulic load cell with digital pressure gauge. Robust and straightforward design, ideally suited to rough operating conditions. Body and piston of the load cell are stainless steel. 300° pivoting, 4 1/2-digit display with background lighting for direct display of the load force. The additional graphical display with memory pointer indicates the tendency of the instantaneous load force. Min. / max. memory and tare function can be called up independently of the main display. 3xM5 tapped hole in the call base for attachment. When used in accordance with instructions, a leaktightness warranty of 5 years is given. _0-10 Supplied with Display unit, 2 batteries No. 081555 size LR6, manufacturer's certificate of conformity, and transport case. Measuring range kN 0-0,5 0-2 0-10 0-60 0-120 0-320 tt 47 Qi 30 D'9'tal , HI 9 1 0a(J ce Graduations kN 0.01 0.01 0.01 0.01 0.1 0.1 Error limit ± 1 ± 0.5 of the full scale value ± 1 digit Piston area cm2 10 10 10 10 80 80 0 load cell mm 75 75 75 75 138 138 Height of load cell mm 31 31 31 31 42 42 Operating temperature °C -10 to+50 479100 944 Main catalogue Hoffmann Group 46
