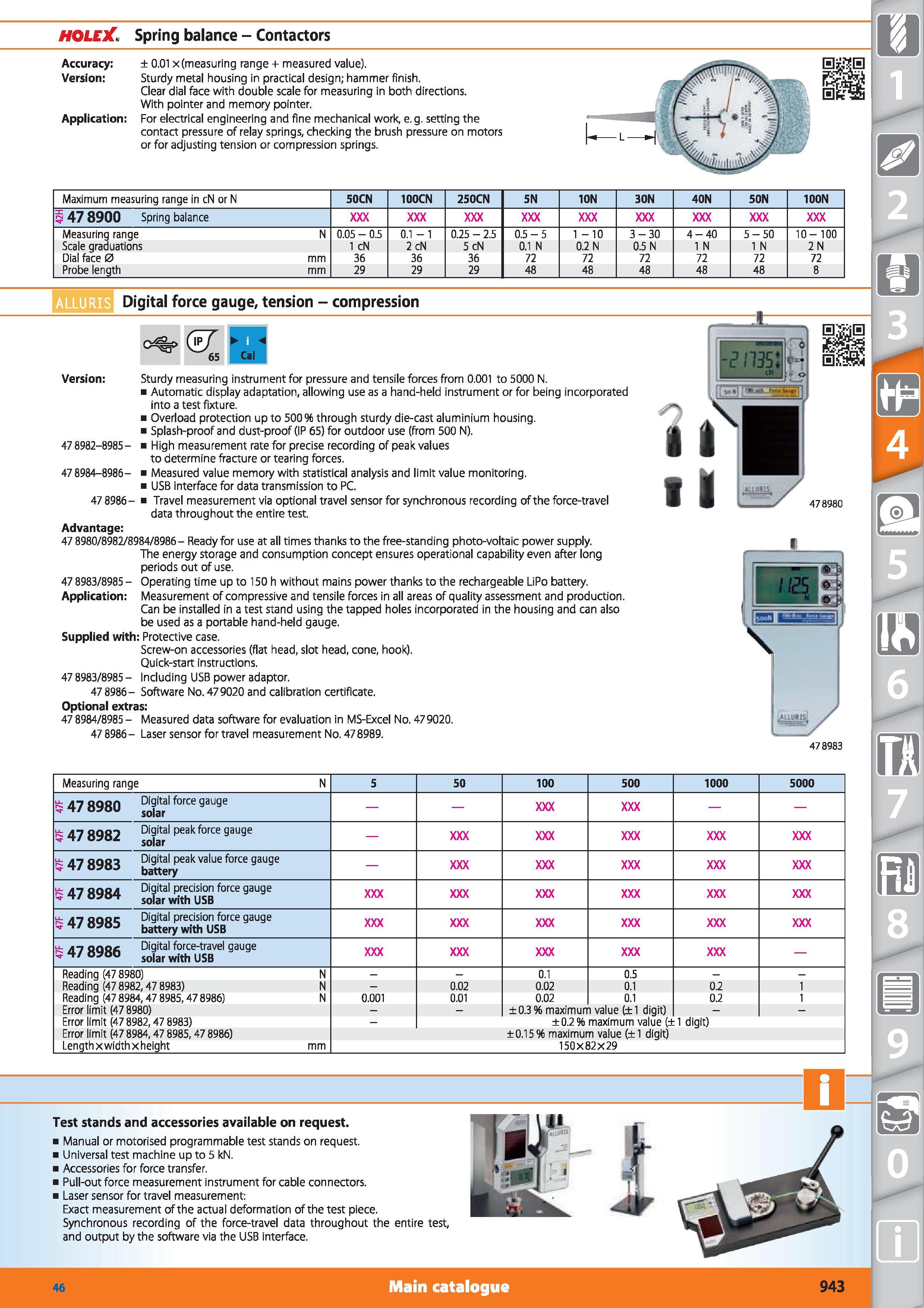

HOLEX Spring balance - Contactors Accuracy Version Application ± 0.01 x (measuring range + measured value). Sturdy metal housing in practical design; hammer finish. Clear dial face with double scale for measuring in both directions. With pointer and memory pointer. For electrical engineering and fine mechanical work, e.g. setting the contact pressure of relay springs, checking the brush pressure on motors or for adjusting tension or compression springs. Maximum measuring range in cN or N 50CN 100CN 250CN 5N ION 30N 40N 50N 100N 3 47 8900 Spring balance Measuring range N 0.05 - 0.5 0.1 - 1 0.25 - 2.5 0.5-5 1 -10 3-30 4-40 5-50 10-100 Scale graduations 1 cN 2 cN 5 cN 0.1 N 0.2 N 0.5 N 1 N 1 N 2 N Dial face 0 mm 36 36 36 72 72 72 72 72 72 Probe length mm 29 29 29 48 48 48 48 48 8 ALLURIS Digital force gauge, tension - compression 65 Cal Version Sturdy measuring instrument for pressure and tensile forces from 0.001 to 5000 N. Automatic display adaptation, allowing use as a hand-held instrument or for being incorporated into a test fixture. Overload protection up to 500% through sturdy die-cast aluminium housing. Splash-proof and dust-proof (IP 65) for outdoor use (from 500 N). 478982-8985- High measurement rate for precise recording of peak values to determine fracture or tearing forces. 47 8984-8986- Measured value memory with statistical analysis and limit value monitoring. USB interface for data transmission to PC. 47 8986- Travel measurement via optional travel sensor for synchronous recording of the force-travel data throughout the entire test. Advantage 47 8980/8982/8984/8986 - Ready for use at all times thanks to the free-standing photo-voltaic power supply. The energy storage and consumption concept ensures operational capability even after long periods out of use. 47 8983/8985 - Operating time up to 150 h without mains power thanks to the rechargeable LiPo battery. Application Measurement of compressive and tensile forces in all areas of quality assessment and production. Can be installed in a test stand using the tapped holes incorporated in the housing and can also be used as a portable hand-held gauge. Supplied with Protective case. Screw-on accessories (flat head, slot head, cone, hook). Quick-start instructions. 47 8983/8985 - Including USB power adaptor. 47 8986- Software No. 479020 and calibration certificate. Optional extras 47 8984/8985 - Measured data software for evaluation in MS-Excel No. 479020. 47 8986- Laser sensor for travel measurement No. 478989. cN Lt O Pi H 478980 478983 Measuring range N 5 50 100 500 1000 5000 gggg Digital force gauge ai qqoo Digital peak force gauge 4/ S0 ar lj- a-j gno3 Digital peak value force gauge H/ battery u- .-j ana A Digital precision force gauge 4/ By84 solar with USB u. A-j gage Digital precision force gauge 4/ OaOD battery with USB u-jn onoc Digital force-travel gauge ,478986 solar with USB Reading (478980) N 0.1 0.5 Reading (478982,47 8983) N - 0.02 0.02 0.1 0.2 1 Reading (47 8984,47 8985,47 8986) N 0.001 0.01 0.02 0.1 0.2 1 Error limit (47 8980) ±0.3 maximum value (±1 digit) Error limit (47 8982,47 8983) ±0.2% maximum value (±1 digit) Error limit (47 8984,47 8985,47 8986) ±0.15% maximum value (±1 digit) Lengthxwidthxheight mm 150x82x29 Test stands and accessories available on request. Manual or motorised programmable test stands on request. Universal test machine up to 5 kN. Accessories for force transfer. Pull-out force measurement instrument for cable connectors. Laser sensor for travel measurement Exact measurement of the actual deformation of the test piece. Synchronous recording of the force-travel data throughout the entire test, and output by the software via the USB interface. Main catalogue Hoffmann Group 46 943
