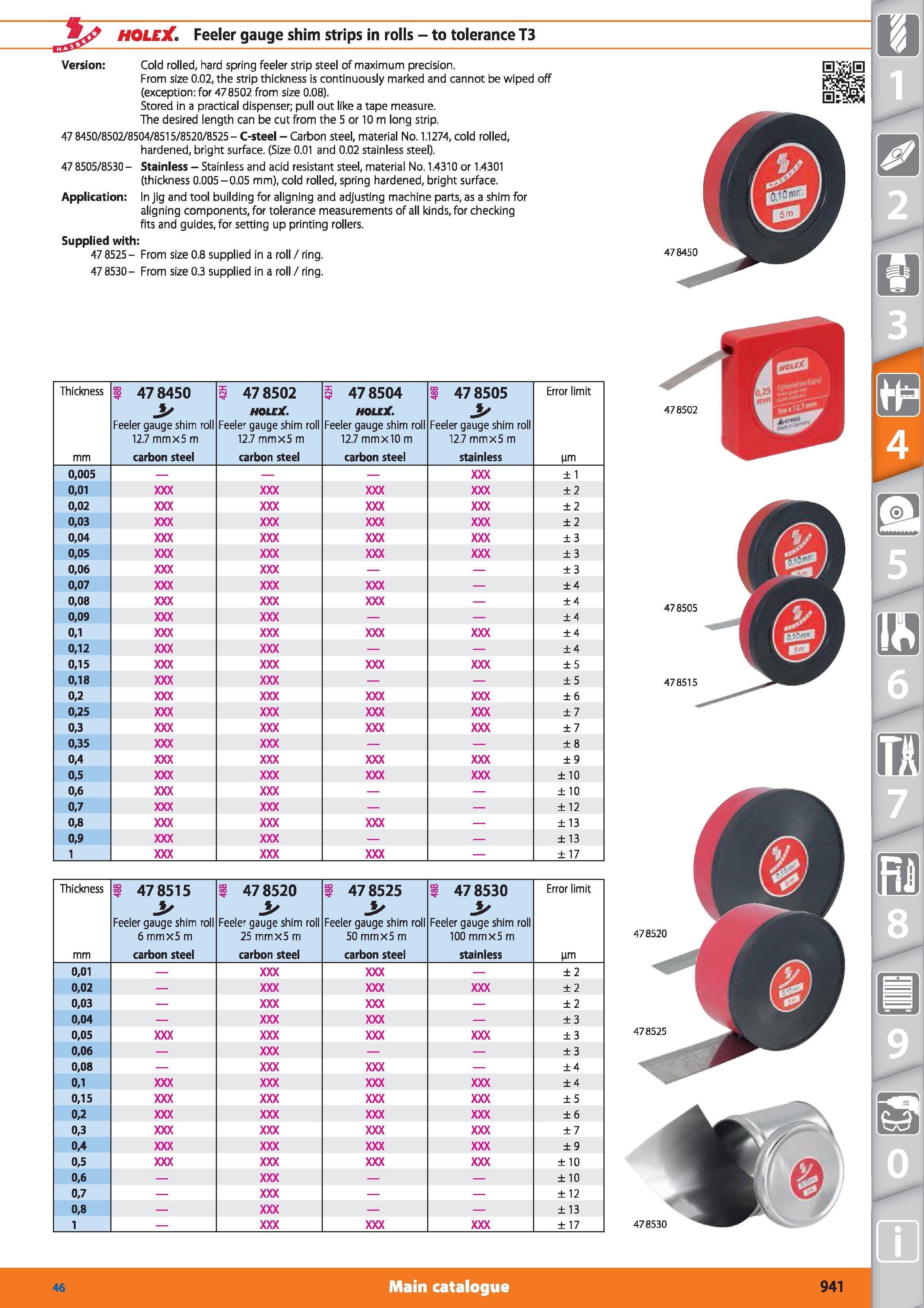

(tl HOLEX Feeler gauge shim strips in rolls - to tolerance T3 Version Cold rolled, hard spring feeler strip steel of maximum precision. From size 0.02, the strip thickness is continuously marked and cannot be wiped off (exception for 478502 from size 0.08). Stored in a practical dispenser; pull out like a tape measure. The desired length can be cut from the 5 or 10 m long strip. 47 8450/8502/8504/8515/8520/8525- C-steel - Carbon steel, material No. 1.1274, cold rolled, hardened, bright surface. (Size 0.01 and 0.02 stainless steel). 47 8505/8530 - Stainless - Stainless and acid resistant steel, material No. 1.4310 or 1.4301 (thickness 0.005 -0.05 mm), cold rolled, spring hardened, bright surface. Application In jig and tool building for aligning and adjusting machine parts, as a shim for aligning components, for tolerance measurements of all kinds, for checking fits and guides, for setting up printing rollers. Supplied with 47 8525- From size 0.8 supplied in a roll / ring. 47 8530- From size 0.3 supplied in a roll / ring. 478450 Thickness 9 478450 3 478502 1 478504 9 478505 Error limit > Feeler gauge shim roll 12.7 mmx5 m HOLEX Feeler gauge shim roll 12.7 mmx5 m MOLEX. Feeler gauge shim roll 12.7 mmxIO m > Feeler gauge shim roll 12.7 mmx5 m mm carbon steel carbon steel carbon steel stainless Hm 0,005 ± 1 0,01 ±2 0,02 ±2 0,03 ±2 0,04 ±3 0,05 ±3 0,06 ±3 0,07 ±4 0,08 ±4 0,09 ±4 0,1 ±4 0,12 ±4 0,15 ± 5 0,18 ±5 0,2 ± 6 0,25 ±7 0,3 ±7 0,35 ±8 0,4 ±9 0,5 ±10 0,6 ±10 0,7 ±12 0,8 ±13 0,9 ±13 1 ±17 Thickness 478515 1 478520 478525 1 478530 Error limit > Feeler gauge shim roll 6 mmx5 m > Feeler gauge shim roll 25 mmx5 m > Feeler gauge shim roll 50 mmx5 m > Feeler gauge shim roll 100 mmx5 m mm carbon steel carbon steel carbon steel stainless Hm 0,01 ±2 0,02 ±2 0,03 ±2 0,04 ±3 0,05 ±3 0,06 ±3 0,08 ±4 0,1 ±4 0,15 ±5 0,2 ± 6 0,3 ±7 0A ±9 0,5 ±10 0,6 ±10 0,7 ±12 0,8 ±13 1 ±17 478502 478505 478515 478520 478525 478530 Main catalogue Hoffmann Group 46 941
