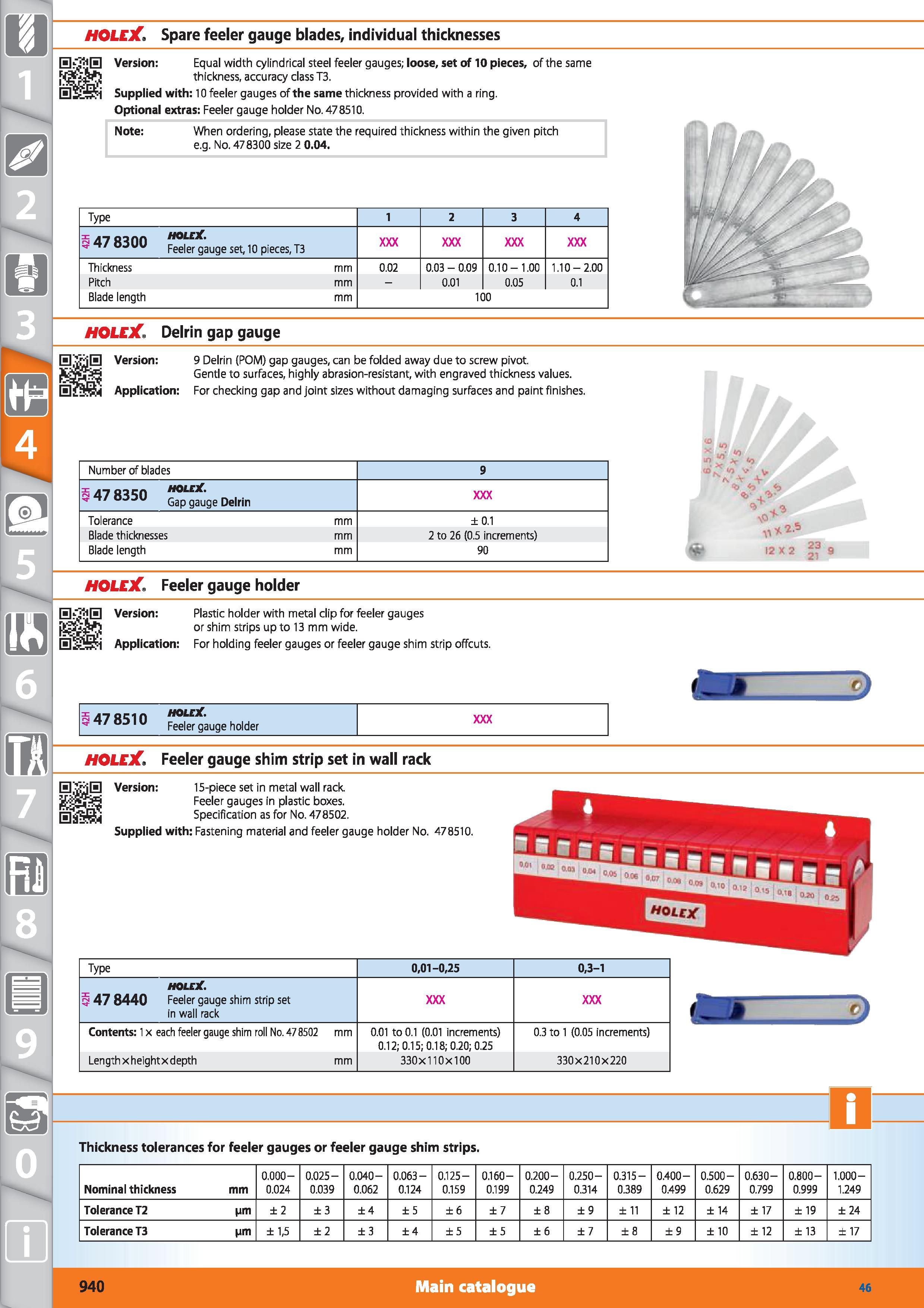

HOLEX Spare feeler gauge blades, individual thicknesses Version Equal width cylindrical steel feeler gauges; loose, set of 10 pieces, of the same thickness, accuracy class T3. Supplied with 10 feeler gauges of the same thickness provided with a ring. Optional extras Feeler gauge holder No. 478510. Note When ordering, please state the required thickness within the given pitch e.g. No. 478300 size 2 0.04. Type 1 2 3 4 3 478300 HOLEX Feeler gauge set, 10 pieces, T3 Thickness mm 0.02 0.03 - 0.09 0.10-1.00 1.10-2.00 Pitch mm - 0.01 0.05 0.1 Blade length mm 100 HOLEX Delrin gap gauge HXjS Version 9 Delrin (POM) gap gauges, can be folded away due to screw pivot. jJSaftSjfiS Gentle to surfaces, highly abrasion-resistant, with engraved thickness values. EfBftM Application For checking gap and joint sizes without damaging surfaces and paint finishes. Number of blades 9 to S47 8350 Tolerance mm ±0.1 Blade thicknesses mm 2 to 26 (0.5 increments) Blade length mm 90 VI 12 X 2 9 HOLEX Feeler gauge holder 0, 0 Version Plastic holder with metal clip for feeler gauges jjSSgft or shim strips up to 13 mm wide. Application For holding feeler gauges or feeler gauge shim strip offcuts. 1478510 HQLOC. Feeler gauge holder HOLEX Feeler gauge shim strip set in wall rack 15-piece set in metal wall rack Feeler gauges in plastic boxes. Specification as for No. 478502. Supplied with Fastening material and feeler gauge holder No. 478510. Type 0,01-0,25 0,3-1 HOLEX g 47 8440 Feeler gauge shim strip set in wall rack Contents 1 x each feeler gauge shim roll No. 478502 mm 0.01 to 0.1 (0.01 increments) 0.12; 0.15; 0.18; 0.20; 0.25 0.3 to 1 (0.05 increments) Lengthxheightxdepth mm 330x110x100 330x210x220 Thickness tolerances for feeler gauges or feeler gauge shim strips. Nominal thickness mm 0.000- 0.024 0.025- 0.039 0.040- 0.062 0.063- 0.124 0.125 0.159 0.160- 0.199 0.200- 0.249 0.250- 0.314 0.315- 0.389 0.400- 0.499 0.500- 0.629 0.630- 0.799 0.800- 0.999 1.000 1.249 Tolerance T2 Mm ±2 ±3 ±4 ±5 ± 6 ±7 ±8 ±9 ± 11 ± 12 ± 14 ± 17 ± 19 ±24 Tolerance T3 Mm ± 1,5 ±2 ±3 ±4 ± 5 ±5 ± 6 ±7 ±8 ±9 ± 10 ± 12 ± 13 ± 17 940 Main catalogue Hoffmann Group 46
