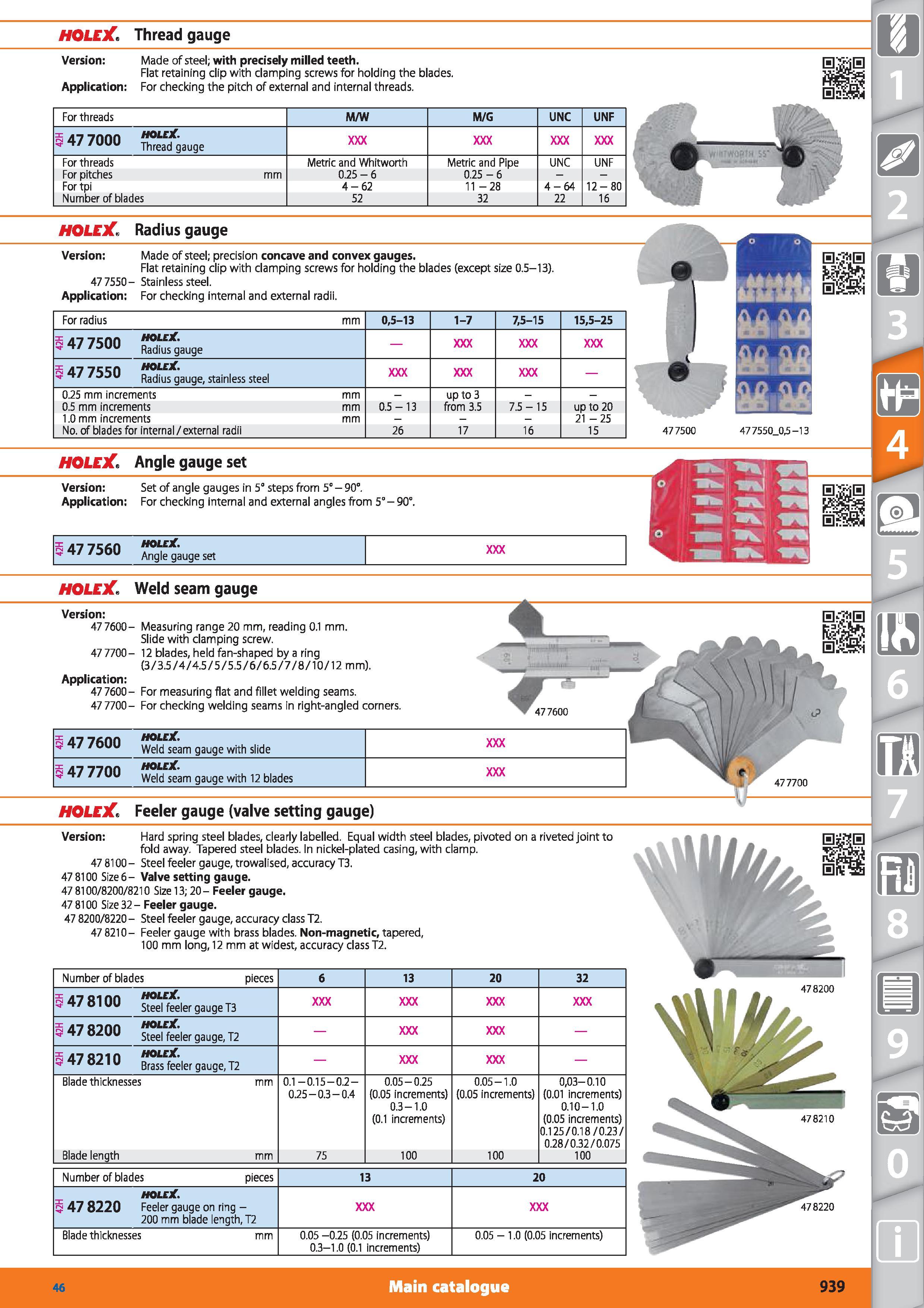

HOLEX Thread gauge Version Made of steel; with precisely milled teeth. Flat retaining clip with clamping screws for holding the blades. Application For checking the pitch of external and internal threads. For threads M/W M/G UNC UNF S 47 7000 Thread gauge For threads Metric and Whitworth Metric and Pipe UNC UNF For pitches mm 0.25 - 6 0.25 - 6 For tpi 4-62 11 -28 4-64 12-80 Number of blades 52 32 22 16 HOLEX Radius gauge Version Made of steel; precision concave and convex gauges. Flat retaining clip with clamping screws for holding the blades (except size 0.5-13). 47 7550- Stainless steel. Application For checking internal and external radii. For radius mm 0,5-13 1-7 7,5-15 15,5-25 s 47 7500 Radius gauge x hglejC. Radius gauge, stainless steel 0.25 mm increments mm - up to 3 0.5 mm increments mm 0.5-13 from 3.5 7.5-15 up to 20 1.0 mm increments mm 21 -25 No. of blades for internal/external radii 26 17 16 15 HOLEX Angle gauge set Version Set of angle gauges in 5° steps from 5° - 90°. Application For checking internal and external angles from 5°-90°. i 47 7560 holcjC. Angle gauge set HOLEX Weld seam gauge Version 47 7600- Measuring range 20 mm, reading 0.1 mm. Slide with clamping screw. 47 7700- 12 blades, held fan-shaped by a ring (3/3.5/4/4.5/5/5.5/6/6.5/7/8/10/12 mm). Application 47 7600- For measuring flat and fillet welding seams. 47 7700- For checking welding seams in right-angled corners. 5 i x n 7 nn HOLEX Weld seam gauge with slide x A-1 11 nn HOLEX Weld seam gauge with 12 blades HOLEX Feeler gauge (valve setting gauge) Version Hard spring steel blades, clearly labelled. Equal width steel blades, pivoted on a riveted joint to fold away. Tapered steel blades. In nickel-plated casing, with clamp. 47 8100 - Steel feeler gauge, trowalised, accuracy T3. 47 8100 Size 6- Valve setting gauge. 47 8100/8200/8210 Size 13; 20- Feeler gauge. 47 8100 Size 32 - Feeler gauge. 47 8200/8220 - Steel feeler gauge, accuracy class T2. 47 8210- Feeler gauge with brass blades. Non-magnetic, tapered, 100 mm long, 12 mm at widest, accuracy class T2. Number of blades pieces 6 13 20 32 3 47 8100 steeFfreler gauge T3 47 8200 steeFfreler gauge, T2 478210 Ser gauge, T2 Blade thicknesses mm 0.1 0.15 0.2 0.25-0.3-0.4 0.05-0.25 (0.05 increments) 0.3-1.0 (0.1 increments) 0.05-1.0 (0.05 increments) 0,03-0.10 (0.01 increments) 0.10-1.0 (0.05 increments) 0.125/0.18 / 0.23/ 0.28/0.32/0.075 Blade length mm 75 100 100 100 Number of blades pieces 13 20 holcjC. 5 47 8220 Feeler gauge on ring -200 mm blade length, T2 Blade thicknesses mm 0.05 -0.25 (0.05 increments) 0.3-1.0 (0.1 increments) 0.05 - 1.0 (0.05 increments) 478220 Main catalogue Hoffmann Group 46 939
