936 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.936

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 936 0936 ENG Lab2u

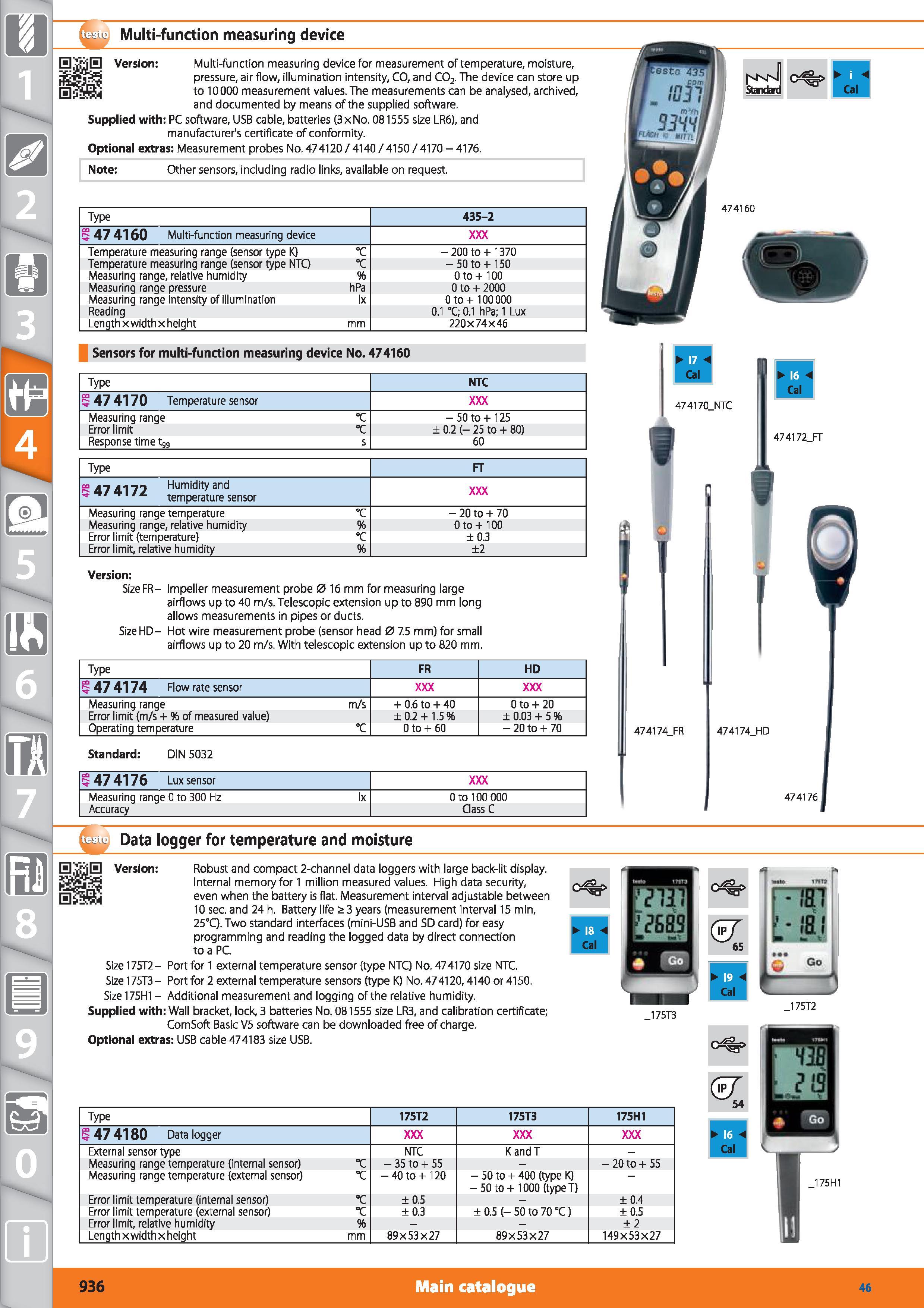

Multi-function measuring device Version Multi-function measuring device for measurement of temperature, moisture, pressure, air flow, illumination intensity, CO, and C02. The device can store up to 10000 measurement values. The measurements can be analysed, archived, and documented by means of the supplied software. Supplied with PC software, USB cable, batteries (3xNo. 081555 size LR6), and manufacturer's certificate of conformity. Optional extras Measurement probes No. 474120 / 4140 / 4150 / 4170 - 4176. Note Other sensors, including radio links, available on request. Type 435-2 S 47 4" 60 Multi-function measuring device Temperature measuring range (sensor type K) °C - 200 to +1370 Temperature measuring range (sensor type NTQ °C - 50 to +150 Measuring range, relative humidity 0to+ 100 Measuring range pressure hPa 0 to + 2000 Measuring range intensity of illumination Ix 0 to + 100000 Reading 0.1 °C; 0.1 hPa; 1 Lux Length x widthx height mm 220x74x46 Sensors for multi-function measuring device No. 474160 Type NTC 47 4170 Temperature sensor Measuring range °C - 50 to + 125 Error limit °C ± 0.2 (- 25 to + 80) Response time t39 s 60 ra < Cal 474170JMTC Type FT K 47 4172 Humidity and temperature sensor Measuring range temperature °C - 20 to + 70 Measuring range, relative humidity 0to+ 100 Error limit (temperature) °C ±0.3 Error limit, relative humidity ±2 f Version Size FR- SizeHD- Impeller measurement probe 0 16 mm for measuring large airflows up to 40 m/s. Telescopic extension up to 890 mm long allows measurements in pipes or ducts. Hot wire measurement probe (sensor head 0 7.5 mm) for small airflows up to 20 m/s. With telescopic extension up to 820 mm. Type FR HD 47 4174 Flow rate sensor Measuring range m/s + 0.6 to + 40 0 to + 20 Error limit (m/s + of measured value) ±0.2+ 1.5% ± 0.03 + 5 Operating temperature °C 0 to + 60 - 20 to + 70 Standard DIN 5032 47 4176 Lux sensor Measuring range 0 to 300 Hz Ix 0 to 100 000 Accuracy Class C 474174 FR 474172 FT 474174 HD 474176 Data logger for temperature and moisture Version Robust and compact 2-channel data loggers with large back-lit display. Internal memory for 1 million measured values. High data security, even when the battery is flat. Measurement interval adjustable between 10 sec. and 24 h. Battery life s 3 years (measurement interval 15 min, 25°Q. Two standard interfaces (mini-USB and SD card) for easy programming and reading the logged data by direct connection to a PC. Size 175T2- Port for 1 external temperature sensor (type NTQ No. 474170 size NTC. Size 175T3- Port for 2 external temperature sensors (type K) No. 474120,4140 or 4150. Size 175H1 - Additional measurement and logging of the relative humidity. Supplied with Wall bracket, lock, 3 batteries No. 081555 size LR3, and calibration certificate; ComSoft Basic V5 software can be downloaded free of charge. Optional extras USB cable 474183 size USB. 175T3 175T2 Type 175T2 175T3 175H1 Sf 47 4180 Data logger External sensor type NTC KandT - Measuring range temperature (internal sensor) °C - 35 to + 55 20 to + 55 Measuring range temperature (external sensor) °C - 40 to + 120 - 50 to + 400 (type K) -50to+ 1000 (type T) Error limit temperature (internal sensor) °C ±0.5 - ±0.4 Error limit temperature (external sensor) °C ±0.3 ±0.5 (- 50 to 70 °C) ±0.5 Error limit, relative humidity ±2 Length x widthx height mm 89X53X27 89X53X27 149 X 53 X 27 175H1 936 Main catalogue Hoffmann Group 46
